Type 07016 - Fill cluster with check function

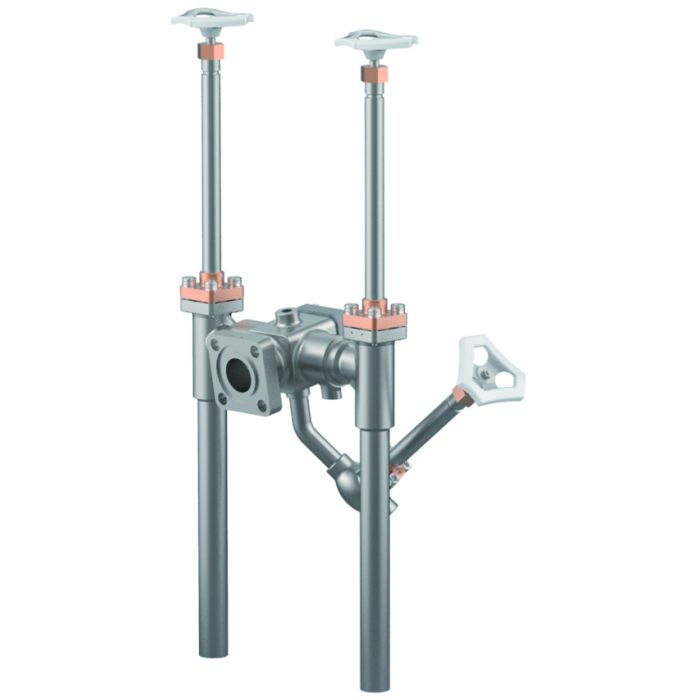

The product shown in the picture may differ from the product sold.
Field of application
Applications:
Approved for air gases, vapours and cryogenic liquefied gases incl. LNG.
Working temperature: -196°C / -321°F (77K) up to +120°C / +248°F (393K)
Certificates
Canadian Registration Number (CRN)
Live Stock: Out-Of Stock pcs (ON STOCK)
| Solution | LNG, Air Gases |
|---|---|
| Solution Area | Transport, Storage, Refueling |
| SKU | CR_07016_2 |
Materials |
DIN EN |
ASTM |
|
|---|---|---|---|
1 |
Fill body |
1.4308 |
A 351 CF8 |
2 |
Body |
1.4308 |
A 351 CF8 |
3 |
Valve seal |
PTFE / Carbon filled (25%) |
|
4 |
Disc |
CW614N |
B 283 UNS C38500 |
5 |
Bonnet gasket |
PTFE |
|
6 |
Headpiece |
CC493K |
B 505 UNS C93200 |
7 |
Bolts |
1.4301/A2 |
A 194 B8 |
8 |
Elongation tube |
1.4541 |
A 213 TP 321 |
9 |
Stem |
1.4301 |
A 276 Grade 304 |
10 |
Gland packing |
Graphite / PTFE |
|
11 |
Gland nut |
CW614N |
B 283 UNS C38500 |
12 |
Handwheel |
Aluminium alloy |
|
14 |
Check disc |
CW452K |
B 159 UNS C51900 |
15 |
Spring |
1.4571 |
A 313 Grade 316Ti |
16 |
Cap |
CC493K |
B 505 UNS C93200 |
17 |
Pipe |
1.4306 |
A 312 TP 304L |

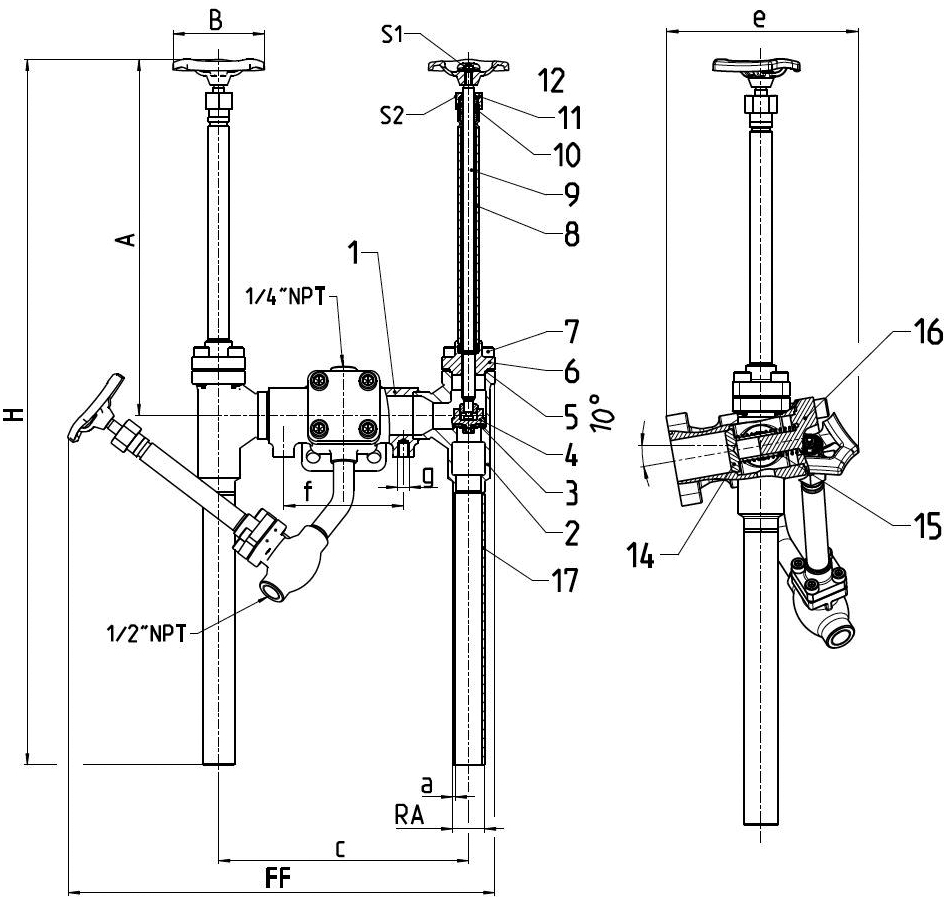

Type 07016 - Standard design |
Technical data |
||
|---|---|---|---|
Nominal size |
DN |
25 |
40 |
Dimension code |
.X. |
2533 |
4048 |
Face-to-face dimension |
FF |
225 |
225 |
Outside pipe-Ø ASTM A312 |
RA |
33.7 |
48.3 |
Wall thickness pipe ASTM A312 |
a |
dimensions acc. to S10 or S40 |
|
Socket depth |
b |
13 |
13 |
Height |
A |
370 |
370 |
Height |
H |
735 |
735 |
Length |
c |
295 |
301 |
Length |
e |
76 |
76 |
Length |
f |
125 |
125 |
Length |
g |
M12, 11mm deep |
M12, 13mm deep |
Handwheel-Ø |
B |
100 |
125 |
Wrench size across flats |
S1 |
7 |
10 |
Wrench size across flats |
S2 |
30 |
36 |
Weight |
ca. kg |
11.5 |
14.9 |
