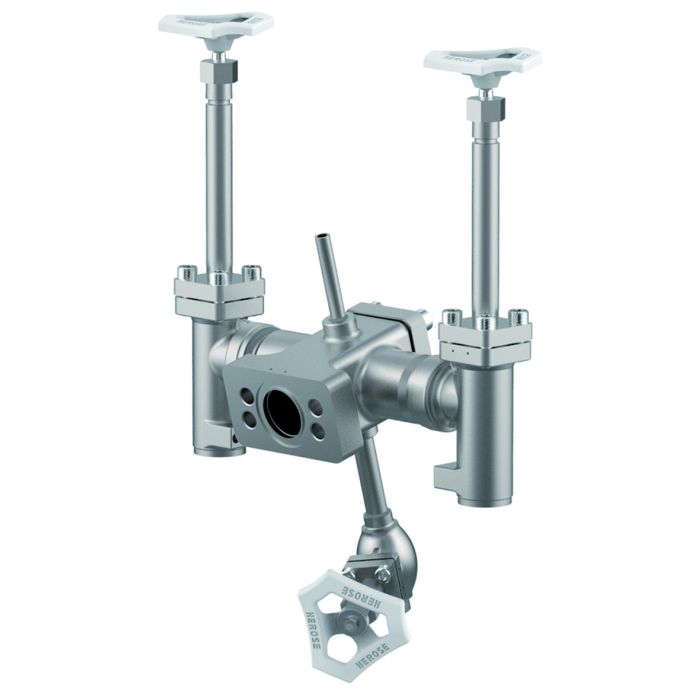

Type 07017 - Fill cluster with check function

Datasheet ID: CR_07017_2
Field of application chevron-down

Applications:

Applications: Approved for air gases, vapours and cryogenic liquefied gases incl. LNG.

Working temperature: -196°C / -321°F (77K) up to +120°C / +248°F (393K)

Description chevron-down

Cryogenic-Fill cluster, PN50

Stainless steel body and topwork

with check function and drain valve

"¦live loaded¦" gland packing

“¦cleaned and degreased for oxygen service¦"

Part No. 07017.X.5000

Fill connection: Air Liquide specified flange

Socket weld connection for stainless steel pipes

acc. to ISO 1127 or ASTM A312

Non-return unit metal to metal seated, leakage rate D acc. to EN12266-1

Available options - on request only:

· other fill connections

· integrable strainer

Certificates chevron-down
Canadian Registration Number (CRN) chevron-down
Pressure Equipment Directive (2014/68/EU) chevron-down
Ukraine (Ukraine) chevron-down
Data sheets chevron-down
Declarations of Conformity chevron-down
Pressure Equipment Safety Regulation 2016 (PESR 2016) chevron-down
Pressure Equipment Directive (2014/68/EU) chevron-down
More Information
Type (Series) 07017
Solution LNG, Air Gases
Solution Area Transport, Storage, Refueling
SKU CR_07017_2

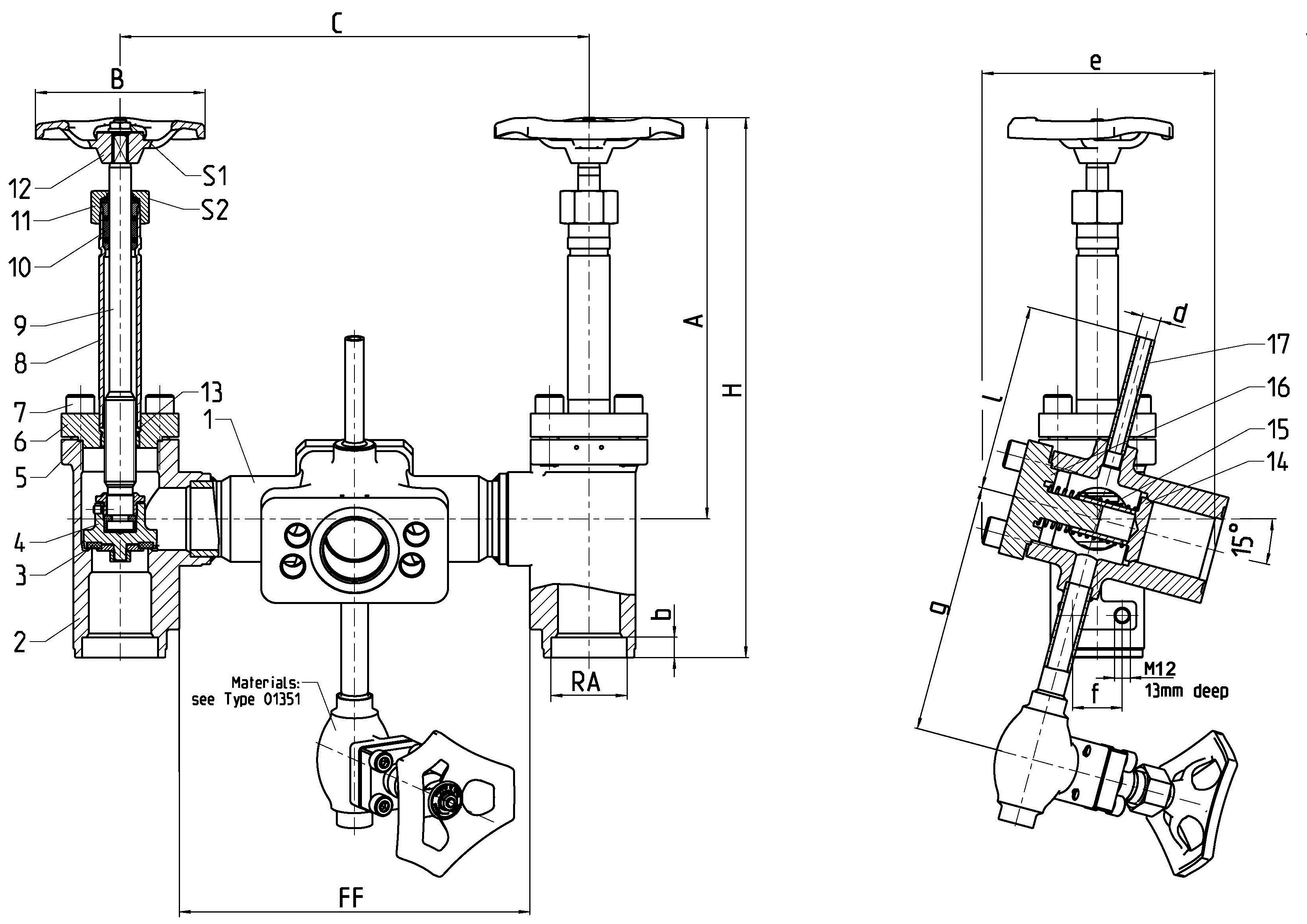

Materials

Materials

DIN EN

ASTM

1

Fill body

1.4308

A 351 CF8

2

Body

1.4308

A 351 CF8

3

Valve seal

PTFE / Carbon filled (25%)

4

Disc

1.4301

A 276 Grade 304

5

Bonnet gasket

PTFE

6

Headpiece

1.4308

A 351 CF8

7

Bolts

1.4301/A2

A 194 B8

8

Elongation tube

1.4541

A 213 TP 321

9

Stem

1.4301

A 276 Grade 304

10

Gland packing

Graphite / PTFE / MICA

11

Gland nut

1.4305

A 276 Grade 303

12

Handwheel

Aluminium alloy

13

Bush

CW452K

B 159 UNS C51900

14

Check disc

1.4301

A 276 Grade 304

15

Spring

1.4571

A 313 Grade 316Ti

16

Cap

1.4301

A 276 Grade 304

17

Tube

1.4541

A 213 TP 321
Versions

Type 07017 - Standard design

Technical data

Nominal size

DN

25

40

Dimension code

.X.

2533

4048

Face-to-face dimension

FF

225

225

Outside pipe-Ø ISO 1127

RA

33.7

48.3

Outside pipe-Ø ASTM A312

RA

33.40

48.26

Socket depth

b

13

13

Height

A

270

270

Height

H

350

350

Length

c

295

301

Length

e

76

76

Length

f

32

32

Length

g

160

160

Length

l

120

120

Diameter

d

12x2

12x2

Handwheel-Ø

B

100

125

Wrench size across flats

S1

7

10

Wrench size across flats

S2

30

36

Weight

ca. kg

11.2

14.0
?
