Type 08411 - Strainer

Datasheet ID: CR_08411_2
Field of application chevron-down

Applications:

Approved for air gases, vapours and cryogenic liquefied gases incl. LNG.

Working temperature: -196°C / -321°F (77K) up to +120°C / +248°F (393K)

Description chevron-down

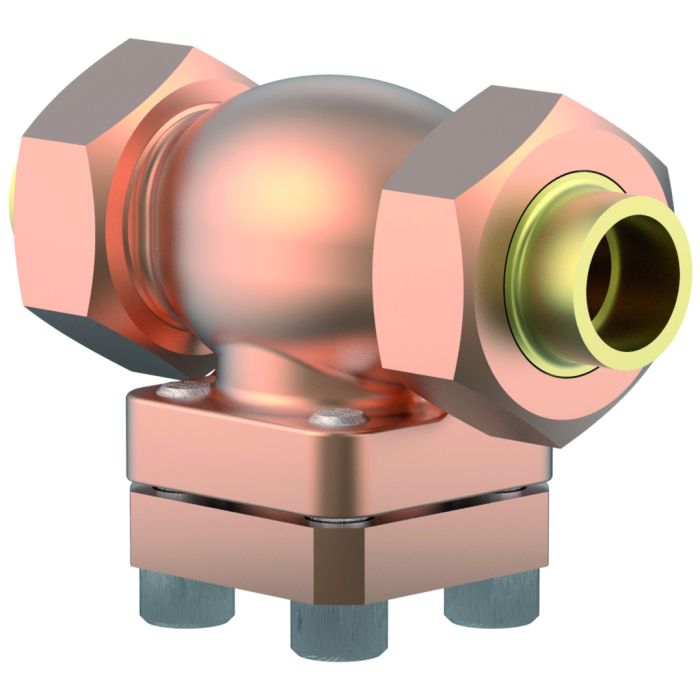

Cryogenic-Strainer, PN50

Bronze body and cap

with strainer screen mesh size 0.25 mm

“cleaned and degreased for oxygen service"

Part No. 08411.X.0008

Completed with union type braze fittings for copper pipes acc. to DIN EN 12449 or ASTM B88

Available options - on request only:

· other mesh sizes for strainer screen (changed flow coefficient)

· strainer screen in bronze or monel

· sintered filter in bronze or stainless steel in various porosities

Certificates chevron-down
type-examination for LNG (DIN EN 12567) chevron-down
Pressure Equipment Directive (2014/68/EU) chevron-down
Ukraine (Ukraine) chevron-down
Data sheets chevron-down
Declarations of Conformity chevron-down
Pressure Equipment Safety Regulation 2016 (PESR 2016) chevron-down
Pressure Equipment Directive (2014/68/EU) chevron-down
More Information
Type (Series) 08411
Solution LNG, Air Gases
Solution Area Transport, Storage, Refueling, Processes
SKU CR_08411_2

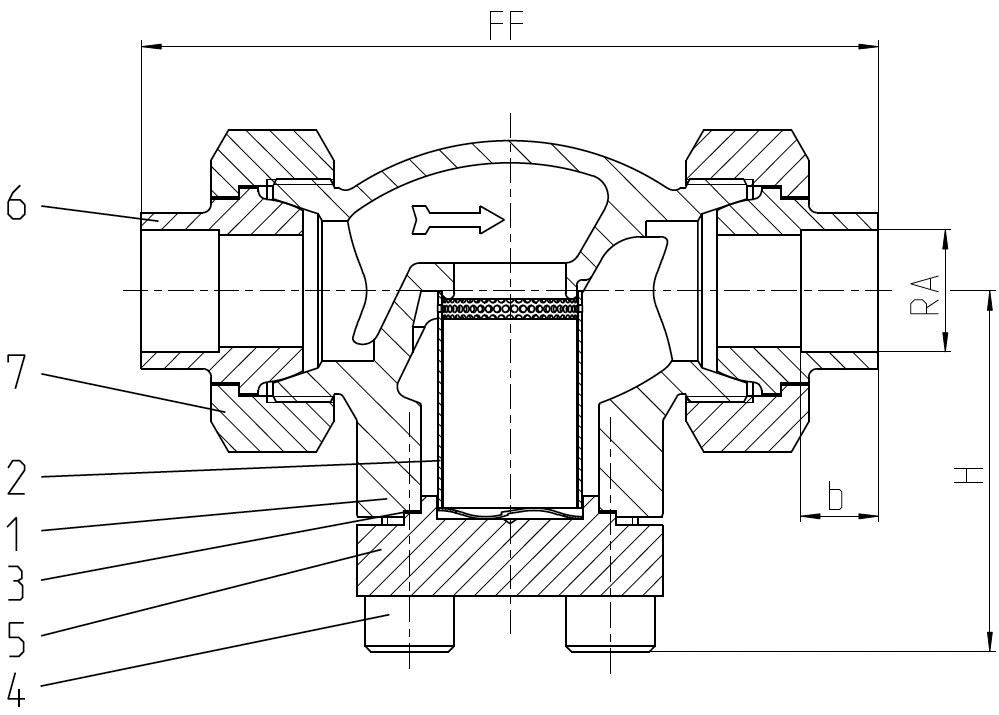

Materials

Materials

DIN EN

ASTM

1

Body

CC491K

B 62 UNS C83600

2

Strainer screen

1.4301

A 240 Grade 304

3

Bonnet gasket

PTFE

4

Bolts

1.4301/A2

A 194 B8

5

Cap

CC493K

B 505 UNS C93200

6

Braze fitting

CC493K

B 505 UNS C93200

7

Union nut

CC493K

B 505 UNS C93200
Versions

Type 08411 - Standard design

Technical data

Nominal size

DN

10

10

15

20

25

32

40

50

Dimension code

.X.

1012

1015

1518

2022

2528

3235

4042

5054

Face-to-face dimension

FF

98

98

132

132

171

171

230

230

Height

H

62

62

62

65

69

76

89

89

Outside pipe-Ø

RA

12.0

15.0

18.0

22.0

28.0

35.0

42.0

54.0

Socket depth

b

11

11

14

14

17

17

17

17

Weight

ca. kg

0.6

0.6

0.8

0.9

1.2

1.8

3.1

4.7

Kvs - Value

m³/h

1.5

1.5

3.4

6.5

9.5

14.0

21.0

28.0

Cv - Value

gal/min

1.7

1.7

3.9

7.5

11.0

16.2

24.3

32.4
?
