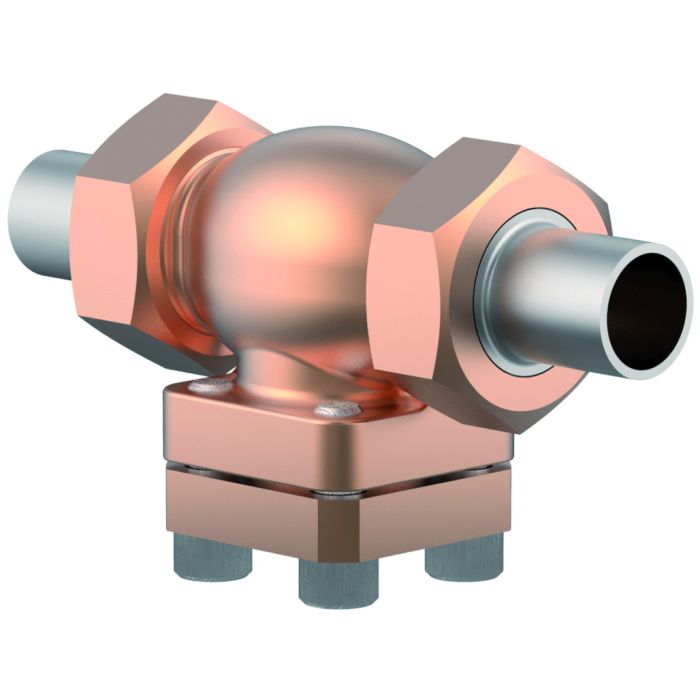

Type 08411 - Strainer

Datasheet ID: CR_08411_3
Field of application chevron-down

Applications:

Approved for air gases, vapours and cryogenic liquefied gases incl. LNG.

Working temperature: -196°C / -321°F (77K) up to +120°C / +248°F (393K)

Description chevron-down

Cryogenic-Strainer, PN50

Bronze body and cap

with strainer screen mesh size 0.25 mm

“cleaned and degreased for oxygen service"

Part No. 08411.X.0007

Completed with union type butt weld fittings for stainless steel pipes

acc. to ISO 1127 or ASTM A312

Available options - on request only:

· other mesh sizes for strainer screen (changed flow coefficient)

· strainer screen in bronze or monel

· sintered filter in bronze or stainless steel in various porosities

· Further pipe wall thicknesses

Certificates chevron-down
type-examination for LNG (DIN EN 12567) chevron-down
Pressure Equipment Directive (2014/68/EU) chevron-down
Ukraine (Ukraine) chevron-down
Data sheets chevron-down
Declarations of Conformity chevron-down
Pressure Equipment Safety Regulation 2016 (PESR 2016) chevron-down
Pressure Equipment Directive (2014/68/EU) chevron-down
More Information
Type (Series) 08411
Solution LNG, Air Gases
Solution Area Transport, Storage, Refueling, Processes
SKU CR_08411_3

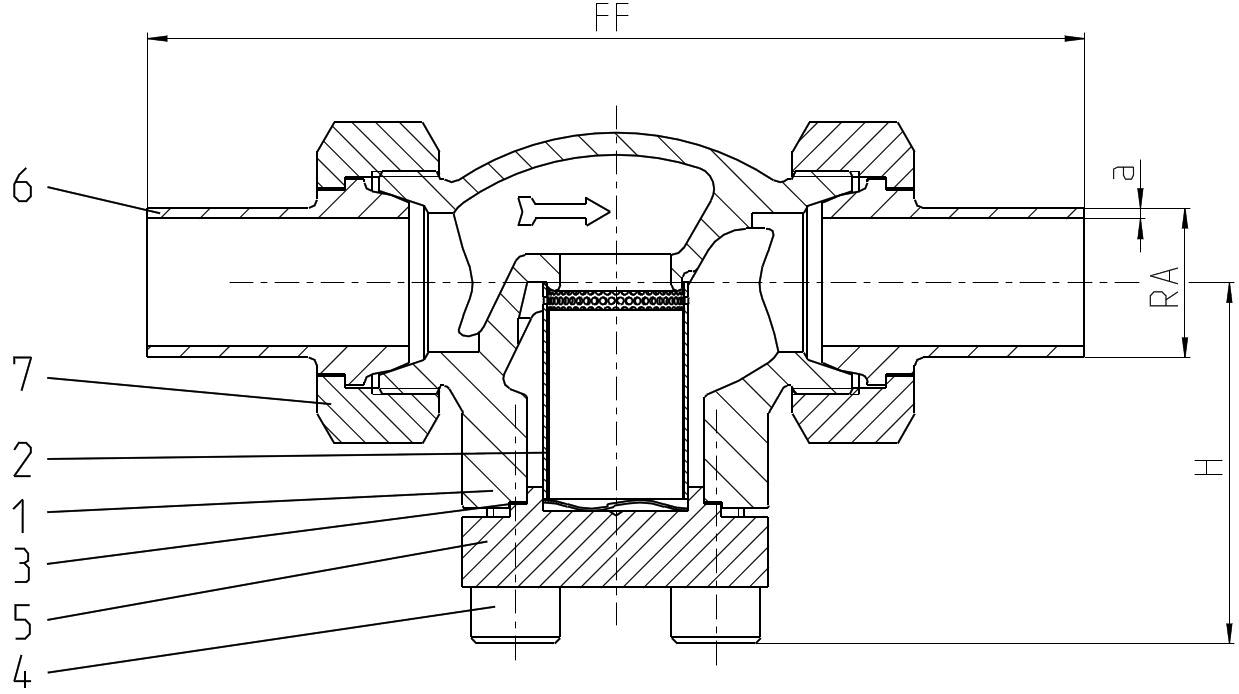

Materials

Materials

DIN EN

ASTM

1

Body

CC491K

B 62 UNS C83600

2

Strainer screen

1.4301

A 240 Grade 304

3

Bonnet gasket

PTFE

4

Bolts

1.4301/A2

A 194 B8

5

Cap

CC493K

B 505 UNS C93200

6

Weld fitting

1.4301

A 276 Grade 304

7

Union nut

CC493K

B 505 UNS C93200
Versions

Type 08411 - Standard design

Technical data

Nominal size

DN

10

10

20

20

32

32

40

50

Dimension code

.X.

1012

1017

1521

2027

2533

3242

4048

5060

Face-to-face dimension

FF

137

141

168

168

203

203

230

263

Outside pipe-Ø ISO 1127

RA

12.0

17.2

21.3

26.9

33.7

42.4

48.3

60.3

Wall thickness pipe ISO 1127

a

1.0

2.3

2.6

2.0

3.2

2.0

3.6

3.6

Outside pipe-Ø ASTM A312

RA

-

17.15

21.34

26.67

33.40

42.16

48.26

60.33

Wall thickness pipe ASTM A312

a

dimensions acc. to S10 or S40

Height

H

62

62

62

65

69

76

89

89

Weight

ca. kg

0.6

0.6

0.8

0.9

1.2

1.8

3.1

4.7

Kvs - Value

m³/h

1.6

2.2

6.7

6.7

12.1

12.1

22.6

37.1

Cv - Value

gal/min

1.9

2.6

7.8

7.8

14.1

14.1

26.3

43.2
?
