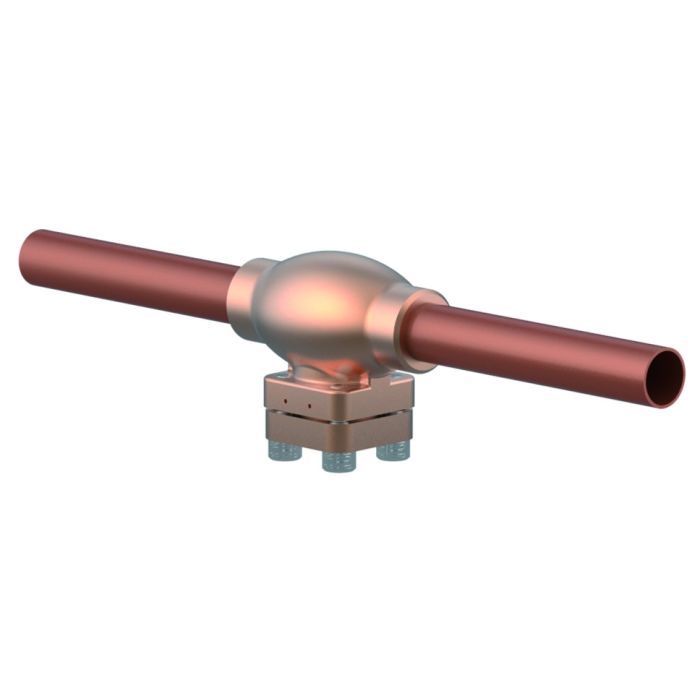

Type 08412 - Strainer

Datasheet ID: CR_08412_2
Field of application chevron-down

Applications:

Approved for air gases, vapours and cryogenic liquefied gases incl. LNG.

Working temperature: -196°C / -321°F (77K) up to +120°C / +248°F (393K)

Description chevron-down

Cryogenic-Strainer, PN50 (DN10-25), PN40 (DN32), PN35 (DN40-50)

Bronze body and cap

with strainer screen mesh size 0.25 mm

“cleaned and degreased for oxygen service"

Part No. 08412.X.0008

Complete with brazed copper stubs acc. to DIN EN 12449

Available options - on request only:

· other mesh sizes for strainer screen (changed flow coefficient)

· strainer screen in bronze or monel

· sintered filter in bronze or stainless steel in various

␣␣porosities

Certificates chevron-down
type-examination for LNG (DIN EN 12567) chevron-down
Canadian Registration Number (CRN) chevron-down
Pressure Equipment Directive (2014/68/EU) chevron-down
Ukraine (Ukraine) chevron-down
Data sheets chevron-down
Operating Instructions chevron-down
Declarations of Conformity chevron-down
Pressure Equipment Safety Regulation 2016 (PESR 2016) chevron-down
Pressure Equipment Directive (2014/68/EU) chevron-down
More Information
Type (Series) 08412
Solution LNG, Air Gases
Solution Area Transport, Storage, Refueling, Processes
SKU CR_08412_2
Materials

Materials

DIN EN

ASTM

1

Body

CC491K

B 62 UNS C83600

2

Strainer screen

1.4301

A 240 Grade 304

3

Bonnet gasket

PTFE

4

Bolts

1.4301/A2

A 194 B8

5

Cap

CC493K

B 505 UNS C93200

6

Copper stubs

CW024A

B 152 UNS C12200
Versions

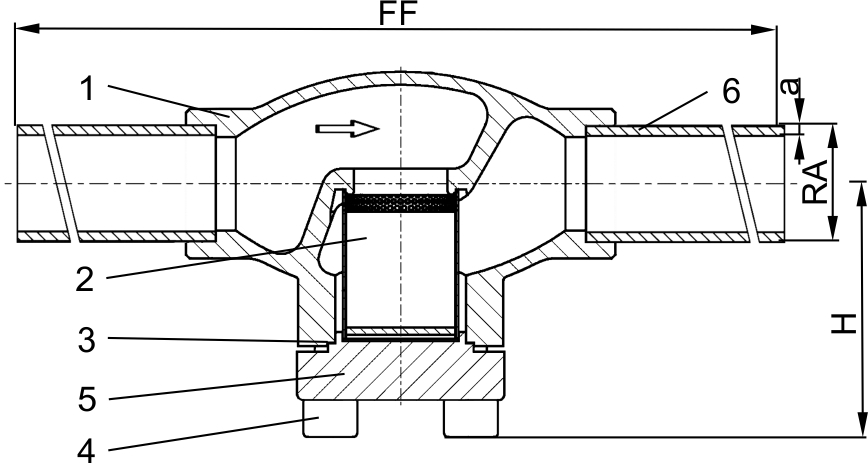

Type 08412 - Standard design

Technical data

Nominal size

DN

10

15

15

20

25

32

40

50

Dimension code

.X.

1012

1515

1518

2022

2528

3235

4042

5054

Face-to-face dimension

FF

360

385

385

385

415

415

440

460

Height

H

62

62

62

65

69

76

89

89

Outside pipe-Ø

RA

12.0

15.0

18.0

22.0

28.0

35.0

42.0

54.0

Wall thickness pipe

a

1.0

1.5

1.5

1.5

1.5

1.5

1.5

2.0

Weight

ca. kg

0.75

1.0

1.0

1.2

1.8

2.5

4.1

6.0

Kvs-Value

m³/h

1.5

3.4

3.4

6.5

9.5

14.0

21.0

28.0

Cv-Value

gal/min

1.7

3.9

3.9

7.5

11.0

16.2

24.3

32.4
