Type 08413 - Strainer

Datasheet ID: CR_08413
Field of application chevron-down

Applications:

Approved for air gases, vapours and cryogenic liquefied gases incl. LNG.

Working temperature: -196°C / -321°F (77K) up to +120°C / +248°F (393K)

Description chevron-down

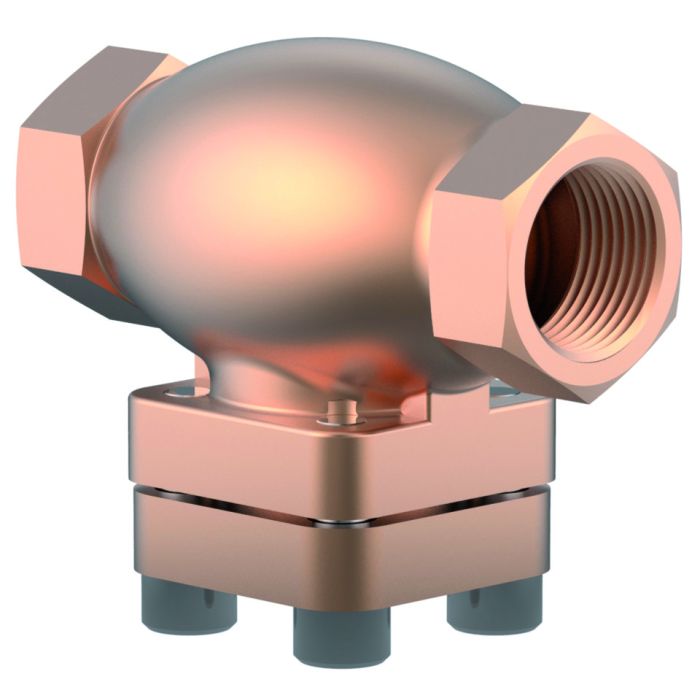

Cryogenic-Strainer, PN50

Bronze body and cap

with strainer screen mesh size 0.25 mm

“cleaned and degreased for oxygen service"

Part No. 08413.X.0001

Female thread connection (G) acc. to ISO 228/1

Part No. 08413.X.0006

Female thread connection NPT acc. to ANSI B 1.20.1

Available options - on request only:

· Female thread connection (R) acc. to ISO 7-Rc

· other mesh sizes for strainer screen (changed flow coefficient)

· strainer screen in bronze or monel

· sintered filter in bronze or stainless steel in various porosities

Certificates chevron-down
type-examination for LNG (DIN EN 12567) chevron-down
Canadian Registration Number (CRN) chevron-down
Pressure Equipment Directive (2014/68/EU) chevron-down
Ukraine (Ukraine) chevron-down
Data sheets chevron-down
Operating Instructions chevron-down
Declarations of Conformity chevron-down
Pressure Equipment Safety Regulation 2016 (PESR 2016) chevron-down
Pressure Equipment Directive (2014/68/EU) chevron-down
More Information
Type (Series) 08413
Solution LNG, Air Gases
Solution Area Transport, Storage, Refueling, Processes
SKU CR_08413

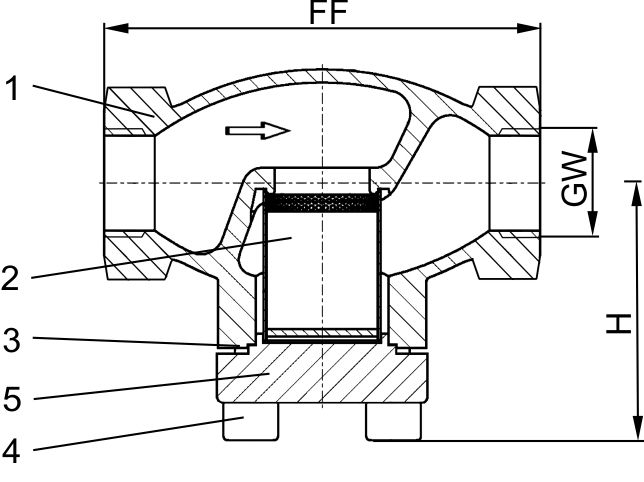

Materials

Materials

DIN EN

ASTM

1

Body

CC491K

B 62 UNS C83600

2

Strainer screen

1.4301

A 240 Grade 304

3

Bonnet gasket

PTFE

4

Bolts

1.4301/A2

A 194 B8

5

Cap

CC493K

B 505 UNS C93200
Versions

Type 08413 - Standard design

Technical data

Nominal size

DN

10

10

15

20

25

32

40

50

Thread size

GW

1/4

3/8

1/2

3/4

1

1-1/4

1-1/2

2

Dimension code

.X.

0200

0300

0400

0600

1000

1200

1400

2000

Face-to-face dimension

FF

60

60

85

85

115

115

140

160

Height

H

62

62

62

65

69

76

89

89

Weight

ca. kg

0.6

0.6

0.8

0.9

1.2

1.8

3.1

4.7

Kvs-Value

m³/h

1.5

1.5

3.4

6.5

9.5

14.0

21.0

28.0

Cv-Value

gal/min

1.7

1.7

3.9

7.5

11.0

16.2

24.3

32.4
