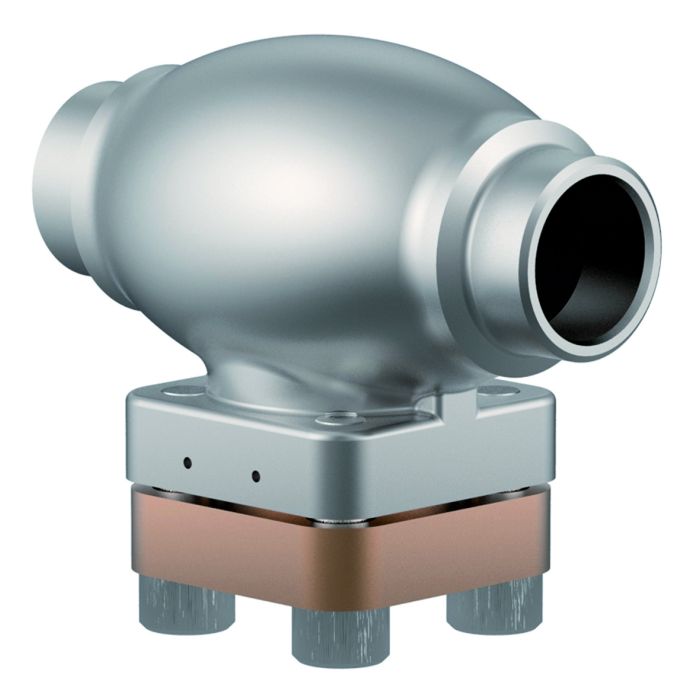

Type 08414 - Strainer

Datasheet ID: CR_08414
Field of application chevron-down

Applications:

Approved for air gases, vapours and cryogenic liquefied gases incl. LNG.

Working temperature: -196°C / -321°F (77K) up to +120°C / +248°F (393K)

Description chevron-down

Cryogenic-Strainer, PN50 (DN150=PN40)

Stainless steel body and bronze cap

with strainer screen mesh size 0.25 mm

“cleaned and degreased for oxygen service"

Part No. 08414.X.000*

* Butt weld connection for stainless steel pipes acc. to ISO 1127 or ASTM A312

Part No. 08414.X.0004

Socket weld connection for stainless steel pipes acc. to ISO 1127 or ASTM A312

Available options - on request only:

· Welded stainless steel stubs acc. to ISO 1127 or ASTM A312 - length FF + 200mm

· other mesh sizes for strainer screen (changed flow coefficient)

· strainer screen in bronze or monel

· sintered filter in bronze or stainless steel in various porosities

Certificates chevron-down
type-examination for LNG (DIN EN 12567) chevron-down
Canadian Registration Number (CRN) chevron-down
Pressure Equipment Directive (2014/68/EU) chevron-down
Ukraine (Ukraine) chevron-down
Data sheets chevron-down
Operating Instructions chevron-down
Declarations of Conformity chevron-down
Pressure Equipment Safety Regulation 2016 (PESR 2016) chevron-down
Pressure Equipment Directive (2014/68/EU) chevron-down
More Information
Type (Series) 08414
Solution LNG, Air Gases
Solution Area Transport, Storage, Refueling, Processes
SKU CR_08414

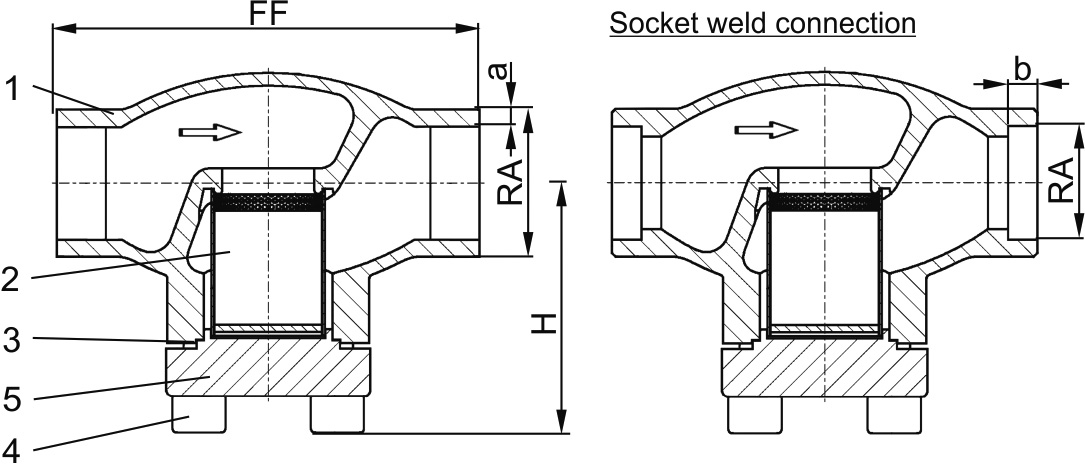

Materials

Materials

DIN EN

ASTM

1

Body

1.4308

A 351 CF8

2

Strainer screen

1.4301

A 240 Grade 304

3

Bonnet gasket

PTFE

4

Bolts

1.4301/A2

A 194 B8

5

Cap

CC493K

B 505 UNS C93200
Versions

Type 08414 - Standard design

Technical data

Nominal size

DN

10

15

15

20

25

32

40

40

50

65

80

100

150

Dimension code

.X.

1012

1517

1521

2026

2533

3238

4042

4048

5060

657x

8088

0114

0168

Face-to-face dimension

FF

70

85

85

100

115

115

130

130

155

205

245

280

400

Height

H

62

62

62

65

69

76

89

89

89

125

150

166

215

Outside pipe-Ø ISO 1127

RA

12.0

17.2

21.3

26.9

33.7

38.0

42.4

48.3

60.3

76.1

88.9

114.3

168.3

Wall thickness pipe ISO 1127

a

1.0

1.6

2.0

2.0

2.0

2.0

2.0

2.0

2.0

2.9

3.2

6.0

7.1

Outside pipe-Ø ASTM A312

RA

13.72

17.15

21.34

26.67

33.40

-

42.16

48.26

60.33

73.03

88.90

114.3

168.3

Wall thickness pipe ASTM A312

a

dimensions acc. to S10 or S40

Socket depth

b

6

10

10

13

13

-

13

13

16

16

16

20

20

Weight

ca. kg

0.6

0.75

0.8

0.9

1.2

1.8

3.1

3.1

4.7

8.9

13.6

18.0

48.0

Kvs-Value

m³/h

1.5

3.4

3.4

6.5

9.5

14.0

19.0

21.0

28.0

62.0

90.0

118.0

300.0

Cv-Value

gal/min

1.7

3.9

3.9

7.5

11.0

16.2

22.0

24.3

32.4

72.3

105.0

137.7

350.1
