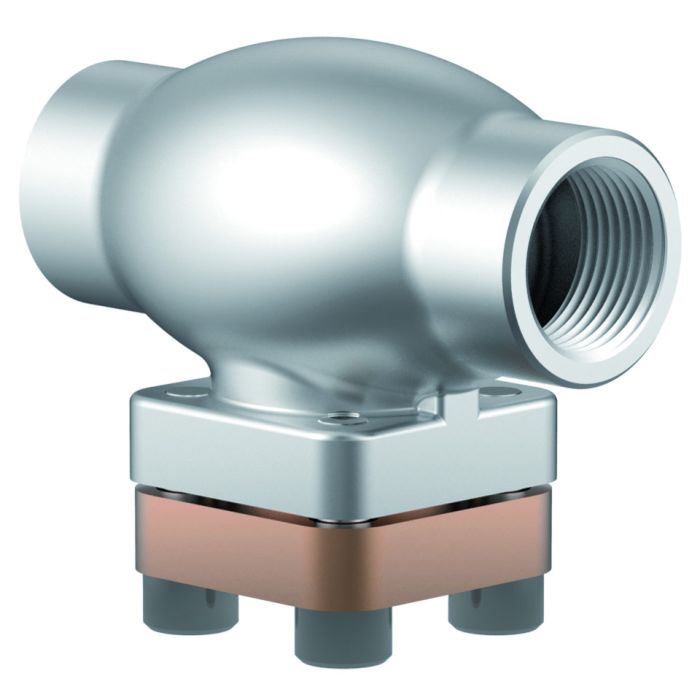

Type 08415 - Strainer

Datasheet ID: CR_08415
Field of application chevron-down

Applications:

Approved for air gases, vapours and cryogenic liquefied gases incl. LNG.

Working temperature: -196°C / -321°F (77K) up to +120°C / +248°F (393K)

Description chevron-down

Cryogenic-Strainer, PN50

Stainless steel body and bronze cap

with strainer screen mesh size 0.25 mm

“cleaned and degreased for oxygen service"

Part No. 08415.X.0001

Female thread connection (G) acc. to ISO 228/1

Part No. 08415.X.0006

Female thread connection NPT acc. to ANSI B 1.20.1

Available options - on request only:

· Female thread connection (R) acc. to ISO 7-Rc

· other mesh sizes for strainer screen (changed flow coefficient)

· strainer screen in bronze or monel

· sintered filter in bronze or stainless steel in various porosities

Certificates chevron-down
type-examination for LNG (DIN EN 12567) chevron-down
Canadian Registration Number (CRN) chevron-down
Pressure Equipment Directive (2014/68/EU) chevron-down
Ukraine (Ukraine) chevron-down
Data sheets chevron-down
Operating Instructions chevron-down
Declarations of Conformity chevron-down
Pressure Equipment Safety Regulation 2016 (PESR 2016) chevron-down
Pressure Equipment Directive (2014/68/EU) chevron-down
More Information
Type (Series) 08415
Solution LNG, Air Gases
Solution Area Transport, Storage, Refueling, Processes
SKU CR_08415
Materials

Materials

DIN EN

ASTM

1

Body

1.4308

A 351 CF8

2

Sieb

1.4301

A 240 Grade 304

3

Bonnet gasket

PTFE

4

Capschrauben

1.4301/A2

A 194 B8

5

Cap

CC493K

B 505 UNS C93200
Versions

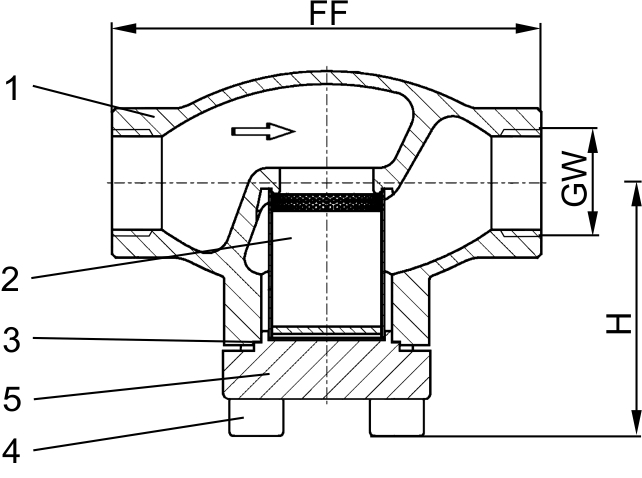

Type 08415 - Standard design

Technical data

Nominal size

DN

10

10

15

20

25

40

40

50

Thread size

GW

1/4

3/8

1/2

3/4

1

1-1/4

1-1/2

2

Dimension code

.X.

0200

0300

0400

0600

1000

1200

1400

2000

Face-to-face dimension

FF

70

70

85

100

115

130

130

155

Height

H

62

62

62

65

69

89

89

89

Weight

ca. kg

0.6

0.6

0.8

0.9

1.2

3.1

3.1

4.7

Kvs-Value

m³/h

1.5

1.5

3.4

6.5

9.5

19.0

21.0

28.0

Cv-Value

gal/min

1.7

1.7

3.9

7.5

11.0

22.0

24.3

32.4
Product Variants

Product Variants

Filter our product by specific attributes
Name Connection inlet Connection outlet Connection dimension inlet Connection dimension outlet Nominal Size Link to product
/
?
