Type 08432 - Strainer, DIN EN Flanges

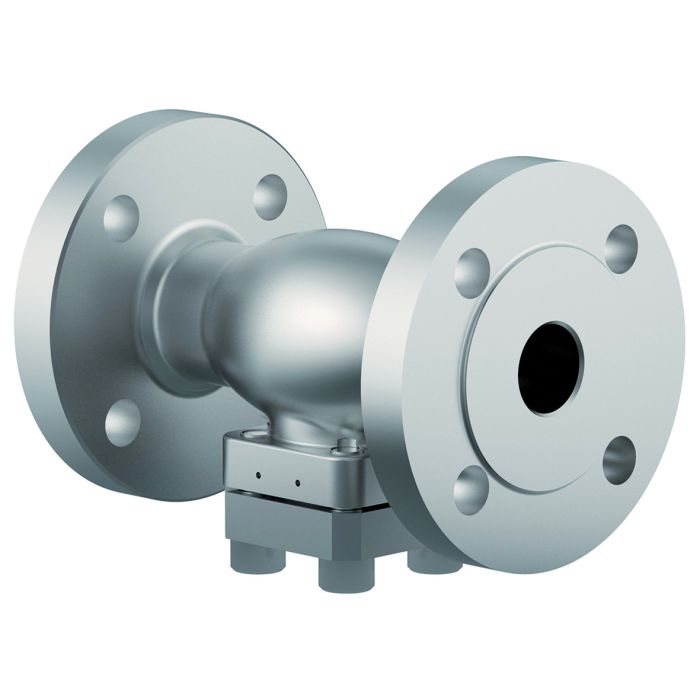

The product shown in the picture may differ from the product sold.
Type 08432 - Strainer, DIN EN Flanges
Datasheet ID: CR_08432_1
Field of application
Applications:
Approved for air gases, vapours and cryogenic liquefied gases incl. LNG.
Working temperature: -196°C / -321°F (77K) up to +120°C / +248°F (393K)
Description
Cryogenic-Strainer, PN40
Stainless steel body and cap
with strainer screen mesh size 0.25 mm
“cleaned and degreased for oxygen service"
Part No. 08432.X.0002
Flanged connection acc. to DIN EN 1092-1 PN40
Available options - on request only:
· other mesh sizes for strainer screen (changed flow coefficient)
· strainer screen in bronze or monel
· sintered filter in bronze or stainless steel in various porosities
Certificates
type-examination for LNG (DIN EN 12567)
LNG-Certificate_01XXX_02XXX_03XXX_05XXX_06XXX_08XXX_09XXX_11XX
LNG-Certificate_DN200-05XXX_08XXX
Canadian Registration Number (CRN)
0E14408.5NR4 - Nunavut
0E14408.5R4 - Ontario
0E14408.5TR4 - Northwest Territorias
0E14408.5YR4 - Yukon
0E14408.50R4 - Newfoundland and Labrador
0E14408.51R4 - British Columbia
0E14408.52R4 - Alberta
0E14408.53R4 - Saskatchewan
0E14408.54R4 - Manitoba
0E14408.56R4 - Quebec.pdf
0E14408.57R4 - New Brunswick
0E14408.58R4 - Nova Scotia
0E14408.59R4 - Prince Eward Island
DNV (Class Rules)
TAP00000KE Rev. 3
BV (Class Rules)
SMS.W.I./11744/C.0
RINA (Class Rules)
Pressure Equipment Directive (2014/68/EU)
0045/202/1201/Z/00366/23/D/001(00)
0045/202/1201/Z/00366/23/D/001(00)
0045/202/1201/Z/00366/23/D/001(00)
0045/202/1201/Z/00366/23/D/001(00)
0045/202/1201/Z/00366/23/D/001(00)
0045/202/1201/Z/00469/23/D/001(00)
0045/202/1201/Z/00469/23/D/001(00)
Lloyd's Register (Class Rules)
LR25294732TA
ABS (Class Rules)
25-0381115-PDA
092776-7471959-006
Ukraine (Ukraine)
UA.276.127.05-26
UA.D.127.06-26
Data sheets
CR_08432_1_en.pdf
Operating Instructions
HEROSE-Manual-CR_08432_1-1
Declarations of Conformity
Pressure Equipment Directive (2014/68/EU)
001TTV (DE, EN, CN)
001TTV (DE, EN, CZ)
001TTV (DE, EN, ES)
001TTV (DE, EN, FR)
001TTV (DE, EN, IT)
001TTV (DE, EN, NL)
001TTV (DE, EN, PL)
001TTV (DE, EN, RU)
002TTV (DE, EN, CN)
002TTV (DE, EN, CZ)
002TTV (DE, EN, ES)
002TTV (DE, EN, FR)
002TTV (DE, EN, IT)
002TTV (DE, EN, NL)
002TTV (DE, EN, PL)
002TTV (DE, EN, RU)
Pressure Equipment Safety Regulation 2016 (PESR 2016)
Delivery Times
The actual delivery time will be determined individually and is part of the order confirmation.
On Stock:
Out-Of Stock:
Delivery Time:
week(s)
The actual delivery time will be determined individually and is part of the order confirmation.
Live Stock:
Out-Of Stock
pcs
(ON STOCK)
Live Stock:
Delivery time (on stock):
Delivery time (off stock):
More Information
| Type (Series) |
08432 |
| Solution |
LNG, Air Gases |
| Solution Area |
Transport, Storage, Refueling, Processes |
| SKU |
CR_08432_1 |
Materials
Materials |
|
DIN EN |
ASTM |
1 |
Body |
1.4308 |
A 351 CF8 |
2 |
Strainer screen |
1.4301 |
A 240 Grade 304 |
3 |
Bonnet gasket |
PTFE |
|
4 |
Bolts |
1.4301/A2 |
A 194 B8 |
5 |
Cap |
1.4301 |
A 276 Grade 304 |
Versions

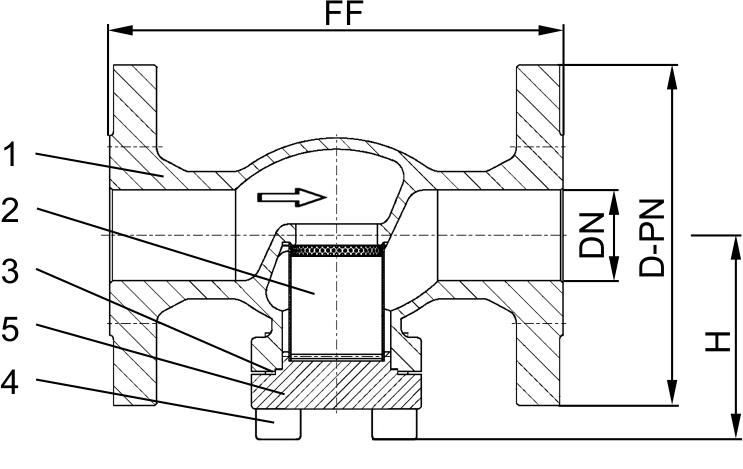

Type 08432 - Standard design |
Technical data |
|
|
|
|
|
|
|
|
|
Nominal size |
DN |
15 |
20 |
25 |
40 |
50 |
65 |
80 |
100 |
150 |
Dimension code - Flange EN 1092-1 PN40 |
.X. |
0150 |
0200 |
0250 |
0400 |
0500 |
0650 |
0800 |
1000 |
1500 |
Flange-Ø |
D-PN |
95 |
105 |
115 |
150 |
165 |
185 |
200 |
235 |
300 |
Face-to-face dimension |
FF |
140 |
150 |
160 |
200 |
230 |
290 |
310 |
350 |
550 |
Height |
H |
62 |
69 |
69 |
89 |
89 |
125 |
150 |
166 |
212 |
Weight |
ca. kg |
2.5 |
3.0 |
4.0 |
5.6 |
10.6 |
17.7 |
23.2 |
36.8 |
68.1 |
Kvs-Value |
m³/h |
4.3 |
6.7 |
9.5 |
21.0 |
28.0 |
62.0 |
90.0 |
118.0 |
on request |
Cv-Value |
gal/min |
5.0 |
7.8 |
11.0 |
24.3 |
32.4 |
72.3 |
105.0 |
137.7 |
on request |
