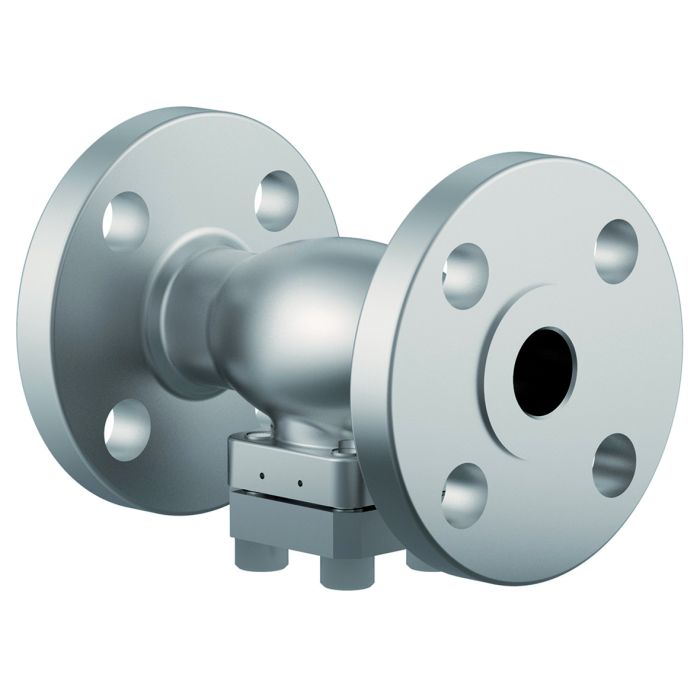

Type 08432 - Strainer, ASME B16.5 Flanges

Datasheet ID: CR_08432_3
Field of application chevron-down

Applications:

Approved for air gases, vapours and cryogenic liquefied gases incl. LNG.

Working temperature: -196°C / -321°F (77K) up to +120°C / +248°F (393K)

Description chevron-down

Cryogenic-Strainer, class 150

Stainless steel body and cap

with strainer screen mesh size 0.25 mm

“cleaned and degreased for oxygen service"

Part No. 08432.X.0001

Flanged connection acc. to ASME B16.5 class 150

Available options - on request only:

· other mesh sizes for strainer screen (changed flow coefficient)

· strainer screen in bronze or monel

· sintered filter in bronze or stainless steel in various porosities

Certificates chevron-down
type-examination for LNG (DIN EN 12567) chevron-down
Canadian Registration Number (CRN) chevron-down
DNV (Class Rules) chevron-down
BV (Class Rules) chevron-down
RINA (Class Rules) chevron-down
Pressure Equipment Directive (2014/68/EU) chevron-down
Lloyd's Register (Class Rules) chevron-down
ABS (Class Rules) chevron-down
25-0381115-PDA
Ukraine (Ukraine) chevron-down
Data sheets chevron-down
Declarations of Conformity chevron-down
Pressure Equipment Directive (2014/68/EU) chevron-down
Pressure Equipment Safety Regulation 2016 (PESR 2016) chevron-down
More Information
Type (Series) 08432
Solution LNG, Air Gases
Solution Area Transport, Storage, Refueling, Processes
SKU CR_08432_3

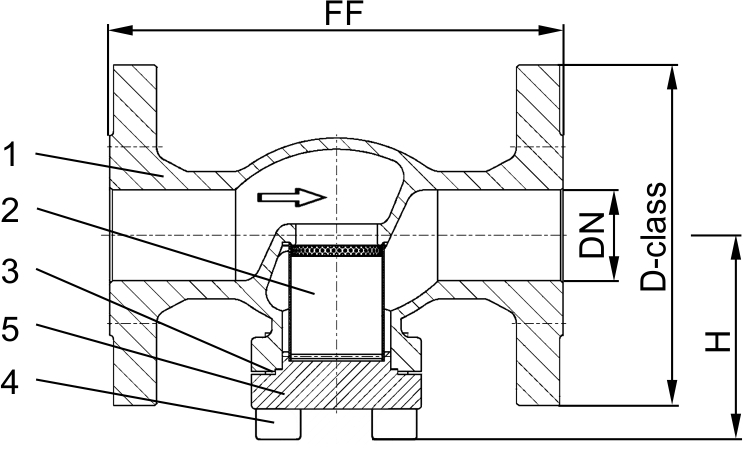

Materials

Materials

DIN EN

ASTM

1

Body

1.4308

A 351 CF8

2

Strainer screen

1.4301

A 240 Grade 304

3

Bonnet gasket

PTFE

4

Bolts

1.4301/A2

A 194 B8

5

Cap

1.4301

A 276 Grade 304
Versions

Type 08432 - Standard design

Technical data

Nominal size

DN

15

20

25

40

50

65

80

100

150

Dimension code - Flange ASME B16.5 class 150

.X.

0400

0600

1000

1400

2000

2400

3000

4000

6000

Flange-Ø

D-class

90

100

110

125

150

180

190

230

280

Face-to-face dimension

FF

140

150

160

200

230

290

310

350

577

Height

H

62

69

69

89

89

125

150

166

212

Weight

ca. kg

2.5

3.0

4.0

5.6

10.6

17.7

23.2

36.8

76.9

Kvs-Value

m³/h

4.3

6.7

9.5

21.0

28.0

62.0

90.0

118.0

on request

Cv-Value

gal/min

5.0

7.8

11.0

24.3

32.4

72.3

105.0

137.7

on request
?
