Type 08716 - Strainer

Datasheet ID: CR_08716
Field of application chevron-down

Applications:

Approved for hydrogen, air gases, vapours and cryogenic liquefied gases incl. LNG.

Working temperature: -255°C / -427°F (18K) up to +120°C / +248°F (393K)

Description chevron-down

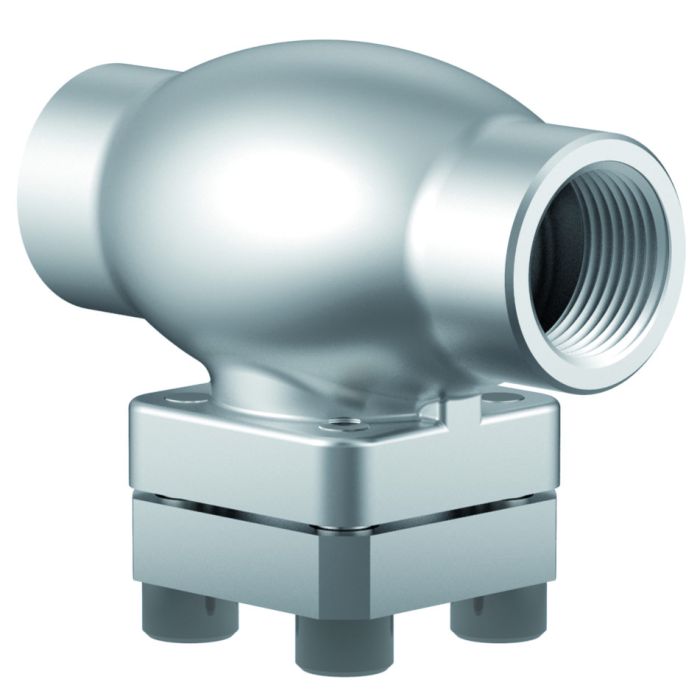

Cryogenic-Strainer, PN50

Stainless steel body and cap

with strainer screen mesh size 0.25 mm

“¦cleaned and degreased for oxygen service¦"

Part No. 08716.X.0001

Female thread connection (G) acc. to ISO 228/1

Part No. 08716.X.0006

Female thread connection NPT acc. to ANSI B 1.20.1

Available options - on request only:

· Female thread connection (R) acc. to ISO 7-Rc

· other mesh sizes for strainer screen (changed flow coefficient)

· strainer screen in bronze or monel

· sintered filter in bronze or stainless steel in various porosities

Certificates chevron-down
DNV (Class Rules) chevron-down
Pressure Equipment Directive (2014/68/EU) chevron-down
Lloyd's Register (Class Rules) chevron-down
ABS (Class Rules) chevron-down
25-0381115-PDA
Ukraine (Ukraine) chevron-down
Data sheets chevron-down
Declarations of Conformity chevron-down
Pressure Equipment Safety Regulation 2016 (PESR 2016) chevron-down
Pressure Equipment Directive (2014/68/EU) chevron-down
More Information
Type (Series) 08716
Solution H2, LNG, Air Gases
Solution Area Manufacturing, Transport, Storage, Refueling, Processes
SKU CR_08716
Materials

Materials

DIN EN

ASTM

1

Body

1.4409

A 351 CF3M

2

Strainer screen

1.4404

A 276 Grade 316L

3

Bonnet gasket

Graphite

4

Bolts

1.4571/A4

similar A 194 B8T

5

Cap

1.4404

A 276 Grade 316L

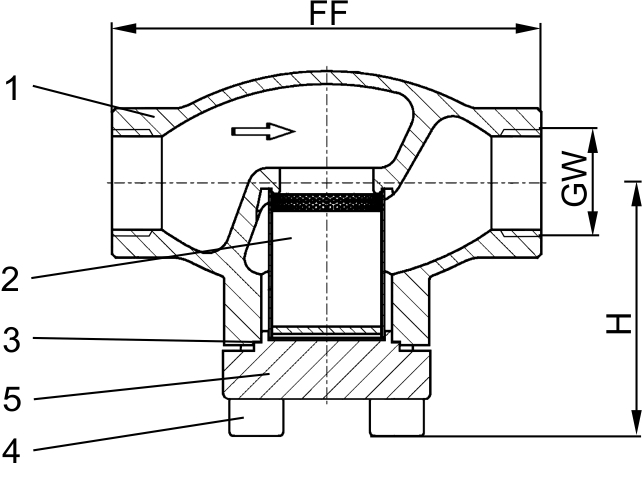

Versions

Type 08716 - Standard design

Technical data

Nominal size

DN

10

10

15

20

25

40

40

50

Thread size

GW

1/4

3/8

1/2

3/4

1

1-1/4

1-1/2

2

Dimension code

.X.

0200

0300

0400

0600

1000

1200

1400

2000

Face-to-face dimension

FF

70

70

85

100

115

130

130

155

Height

H

62

62

62

65

69

89

89

89

Weight

ca. kg

0.6

0.6

0.8

0.9

1.2

3.1

3.1

4.7

Kvs-Value

m³/h

1.5

1.5

3.4

6.5

9.5

19.0

21.0

28.0

Cv-Value

gal/min

1.7

1.7

3.9

7.5

11.0

22.0

24.3

32.4
?
