Type 09440 - Gate valve

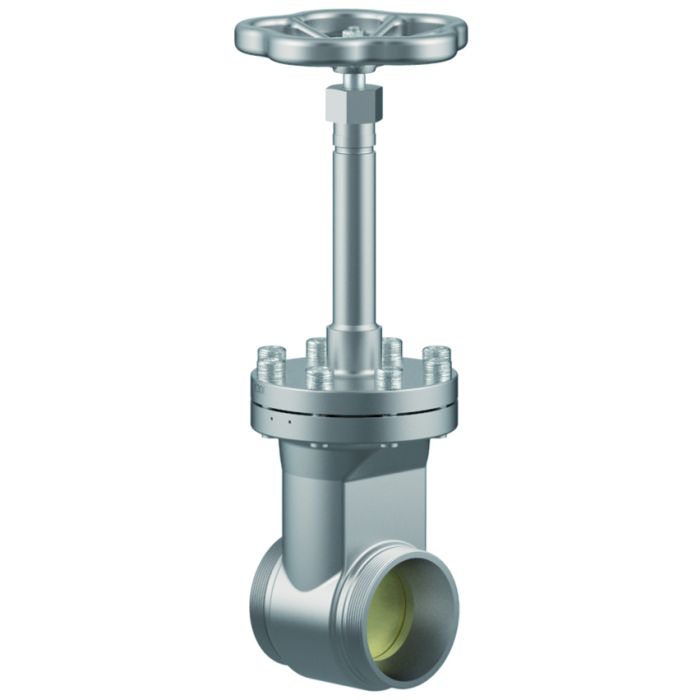

The product shown in the picture may differ from the product sold.
Field of application
Applications:
Approved for air gases, vapours and cryogenic liquefied gases incl. LNG.
Working temperature: -196°C / -321°F (77K) up to +120°C / +248°F (393K)
Certificates
Live Stock: Out-Of Stock pcs (ON STOCK)
| Solution | LNG, Air Gases |
|---|---|
| Solution Area | Transport, Storage, Refueling |
| SKU | CR_09440_1 |

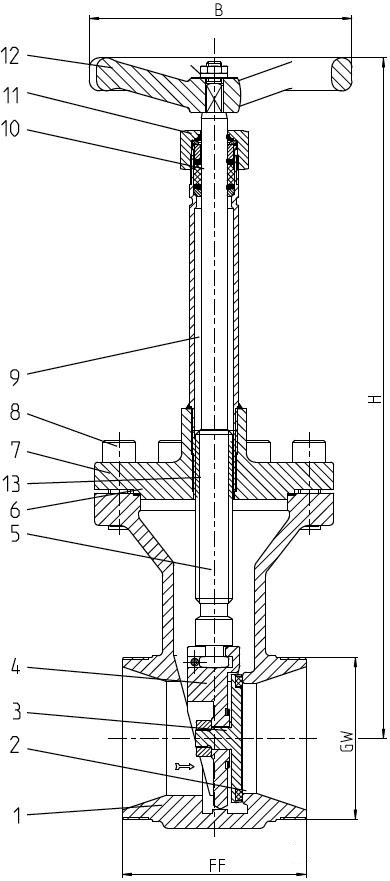

Materials |
DIN EN |
ASTM |
|
|---|---|---|---|
1 |
Body |
1.4308 |
A 351 CF8 |
2 |
Valve seal |
PTFE / Carbon filled (25%) |
|
3 |
Disc |
CW452K |
B 159 UNS C51900 |
4 |
Wedge |
1.4308 |
A 351 CF8 |
5 |
Stem |
1.4301 |
A 276 Grade 304 |
6 |
Bonnet gasket |
PTFE |
|
7 |
Headpiece |
1.4301 |
A 276 Grade 304 |
8 |
Bolts |
1.4301/A2 |
A 194 B8 |
9 |
Elongation tube |
1.4541 |
A 213 TP 321 |
10 |
Gland packing |
Graphite / PTFE / MICA |
|
11 |
Gland nut |
1.4305 |
A 276 Grade 303 |
12 |
Handwheel |
Aluminium alloy |
|
13 |
Bush |
CW452K |
B 159 UNS C51900 |
Type 09440 - Standard design |
Technical data |
||||
|---|---|---|---|---|---|
Nominal size |
DN |
25 |
40 |
50 |
65 |
Thread size (G- / M-thread) |
GW |
- / M40x2 |
G2 / M65x2 |
G2-1/2 / M78x2 |
G3 / M88x2 |
Dimension code |
.X. |
0250 |
0400 |
0500 |
0650 |
Face-to-face dimension |
FF |
133 |
133 |
110 |
100 |
Height |
H |
330 |
360 |
410 |
440 |
Handwheel-Ø |
B |
125 |
125 |
150 |
150 |
Weight |
ca. kg |
3.3 |
4.8 |
7.5 |
8.6 |
Kvs - Value |
m³/h |
43 |
93 |
125 |
227 |
Cv - Value |
gal/min |
51 |
111 |
149 |
264 |
