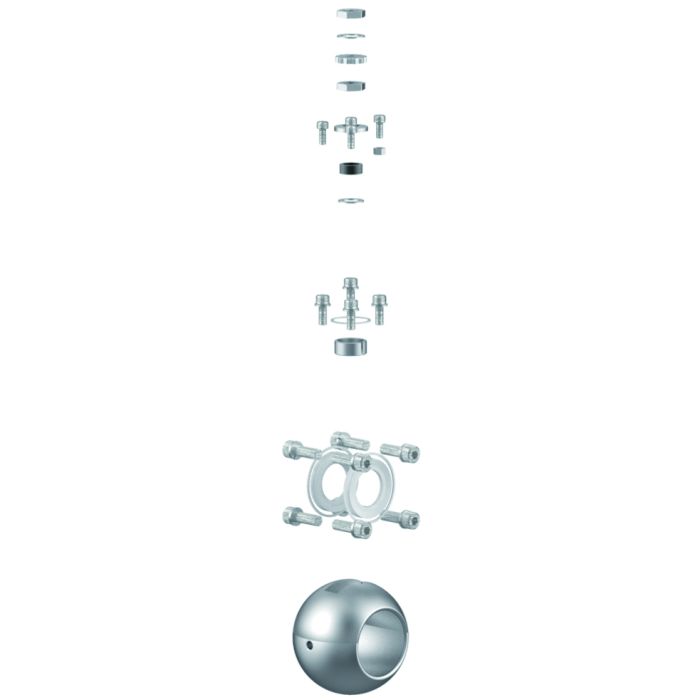

Type 15C01 - Ball set

Datasheet ID: CR_15C01_4
Description chevron-down

consisting of:

· 1x Ball stainless steel

· 2x Seats PCTFE

· 3x Cylinder screws stainless steel (head piece top)

· 1x Cylinder screw stainless steel (locking lever)

· 4x Cylinder screws stainless steel (head piece bottom)

· 8x Cylinder screws stainless steel (side parts)

· 2x Body gaskets PCTFE (bonnet extension) / PTFE (without bonnet extension)

· 1x Lower stem bearing PTFE/Glass fibre (25%)

· 1x Bonnet gasket PCTFE

· 2x Lock nuts stainless steel

· 1x Nut lock cover stainless steel

· 1x Thrust washer PTFE/Glass fibre (25%)

· 1x Hex nut stainless steel

· 2x Belleville washer stainless steel

· 1x Toothed lock washer stainless steel

· 1x Gland packing Graphite/PTFE

· 1x Gland stainless steel

· 12x Spring washer stainless steel

Part No. 15C01.X.E00401

Part No. 15C01.X.E00402 (Version without bonnet extension)

Certificates chevron-down
Pressure Equipment Directive (2014/68/EU) chevron-down
Ukraine (Ukraine) chevron-down
Equipment for explosive atmospheres (ATEX) (2014/34/EU) chevron-down
Data sheets chevron-down
Declarations of Conformity chevron-down
Pressure Equipment Safety Regulation 2016 (PESR 2016) chevron-down
Pressure Equipment Directive (2014/68/EU) chevron-down
More Information
Type (Series) 15C01
Solution LNG, Air Gases, Industry
Solution Area Transport, Storage, Refueling, Processes, Compressed Air
SKU CR_15C01_4
Versions

Type 15C01

Technical data

Nominal size

DN

10

15

20

25

32

40

50

Dimension code

.X.

0010

0015

0020

0025

0032

0040

0050
?
