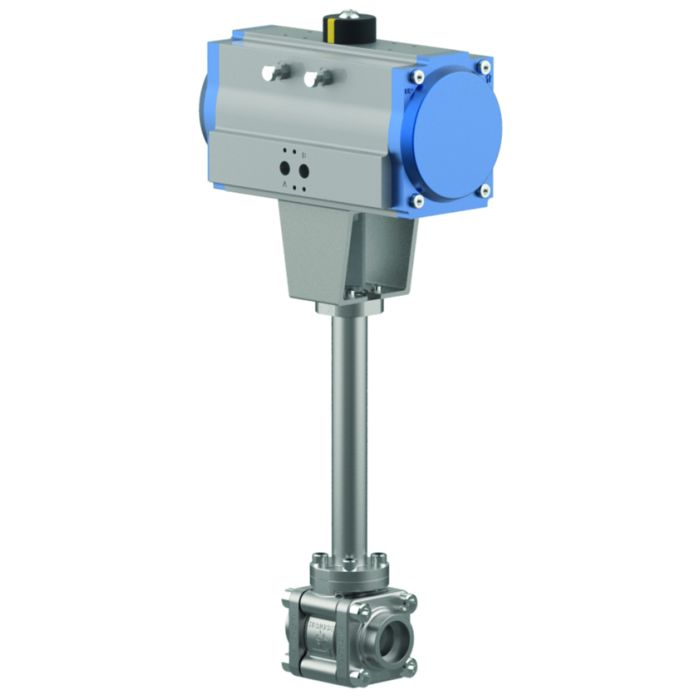

Type 15C01 - Ball Valve with Pneumatic Actuator

Applications:

Approved for air gases, vapours and cryogenic liquefied gases.

Working temperature: -196°C / -321°F (77K) up to +65°C / +149°F (338K)

Cryogenic Ball Valve

Unidirectional ball valve to be installed in flow direction with upstream pressure relief hole.

Socket weld connection for stainless steel pipes acc. to ISO 1127 or ASTM A312

Butt weld connection for stainless steel pipes acc. to ISO 1127 or ASTM A312

Female thread type NPT acc. to ANSI 1.20.1

Female thread type G (BSPP) acc. to ISO 228/1

Marking acc. to EN 1626

Top flange to EN ISO 5211

"¦cleaned and degreased for oxygen service¦"

Actuator:

Maximum air pressure for operation: 8 bar, Minimum air pressure for operation: 6 bar (max delta P)

Connection air supply: NAMUR G1/4"

Ambient temperature limit: -20°C / -4°F (253K) up to +80°C / 176°F (353K)

Part No. 15C01.A002.XXXXXX

Available accessories:

· Limit switch

· Solenoid valve
