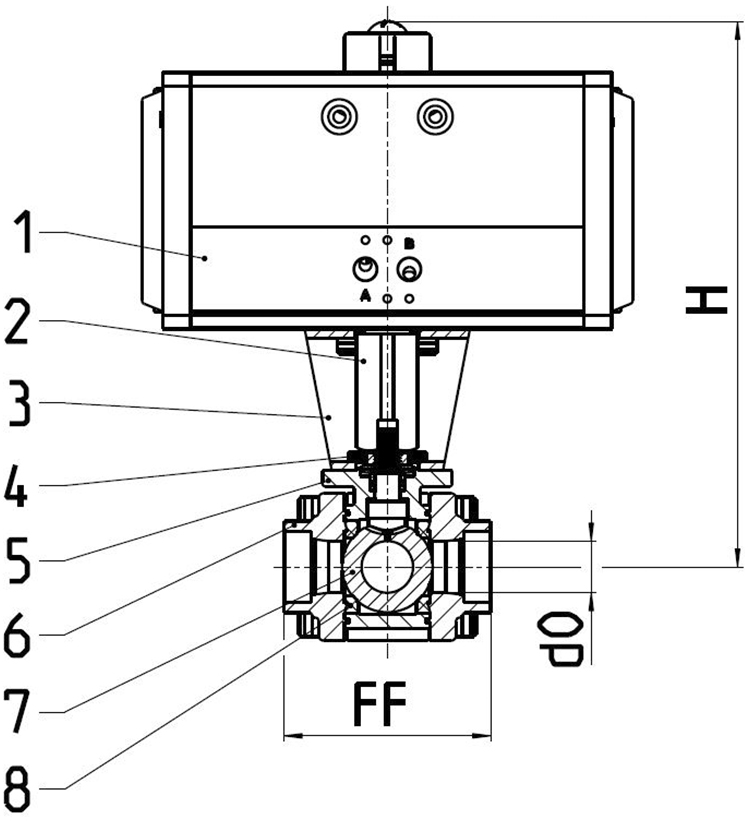

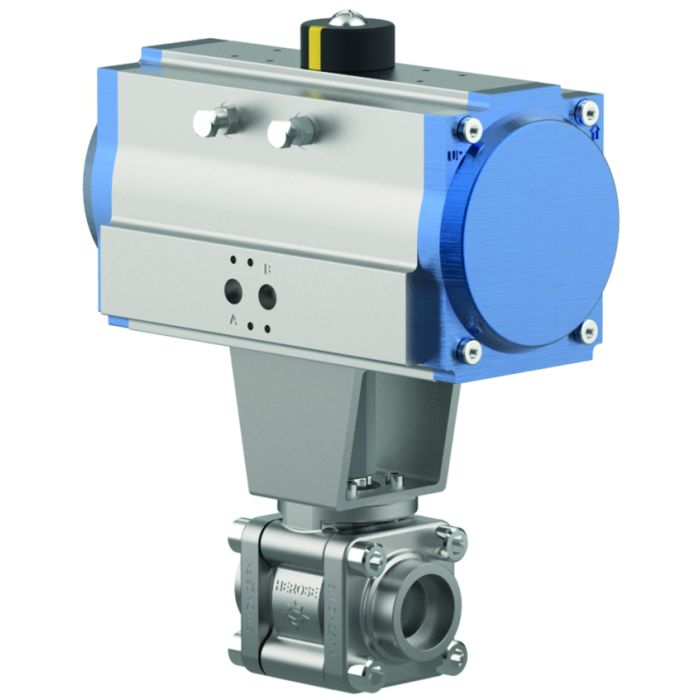

Type 15C02 - Ball Valve with Pneumatic Actuator

Applications:

Approved for air gases, vapours and CNG.

Working temperature: -60°C / -76°F (213K) up to +190°C / +374°F (463K)

Cryogenic Ball Valve

Bidirectional ball valve

Socket weld connection for stainless steel pipes acc. to ISO 1127 or ASTM A312

Butt weld connection for stainless steel pipes acc. to ISO 1127 or ASTM A312

Female thread type NPT acc. to ANSI 1.20.1

Female thread type G (BSPP) acc. to ISO 228/1

Marking acc. to EN 1626

Top flange to EN ISO 5211

"¦cleaned and degreased for oxygen service¦"

Actuator:

spring to close (optional spring to open)

Maximum air pressure for operation: 8 bar

Minimum air pressure for operation: 6 bar (max delta P)

Medium: Air, Nitrogen, NG (sulphide content <2ppm)

Connection air supply: NAMUR G1/4"

Ambient temperature limit: -20°C / -4°F (253K) up to +80°C / 176°F (353K)

Part No. 15C02.A002.XXXXXX

Available accessories:

· Limit switch

· Solenoid valve
