Type 15C02 - Ball Valve full bore

Datasheet ID: CR_15C02_2
Field of application chevron-down

Applications:

Approved for air gases, vapours and CNG.

Working temperature: -60°C / -76°F (213K) up to +190°C / +374°F (463K)

Description chevron-down

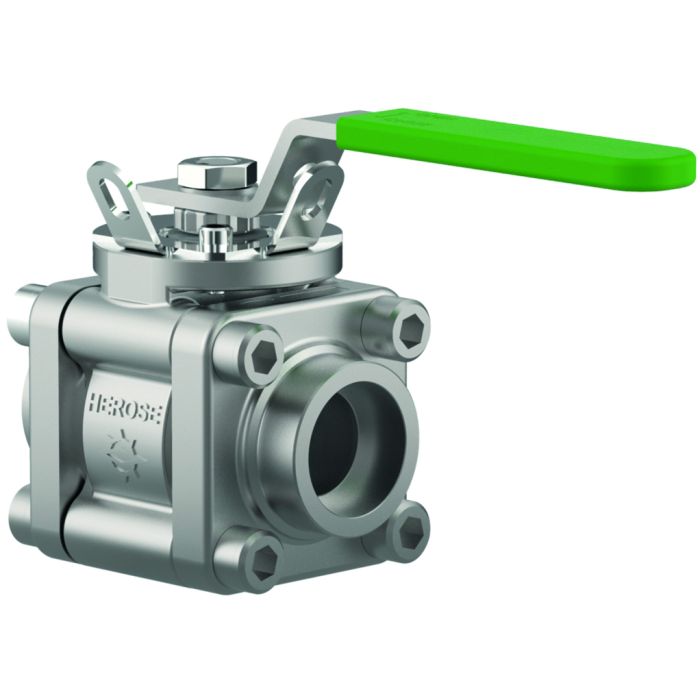

Cryogenic Ball Valve

Bidirectional ball valve

Socket weld connection for stainless steel pipes acc. to ISO 1127 or ASTM A312

Butt weld connection for stainless steel pipes acc. to ISO 1127 or ASTM A312

Female thread type NPT acc. to ANSI 1.20.1

Female thread type G (BSPP) acc. to ISO 228/1

Marking acc. to EN 1626

Top flange to EN ISO 5211

"¦cleaned and degreased for oxygen service¦"

Available accessories:

· Lock for locking device type 55394.0019.0302

Certificates chevron-down
Pressure Equipment Directive (2014/68/EU) chevron-down
Ukraine (Ukraine) chevron-down
Equipment for explosive atmospheres (ATEX) (2014/34/EU) chevron-down
Data sheets chevron-down
Declarations of Conformity chevron-down
Pressure Equipment Safety Regulation 2016 (PESR 2016) chevron-down
Pressure Equipment Directive (2014/68/EU) chevron-down
More Information
Type (Series) 15C02
Solution LNG, Air Gases, Industry
Solution Area Transport, Storage, Refueling, Processes, Compressed Air
SKU CR_15C02_2

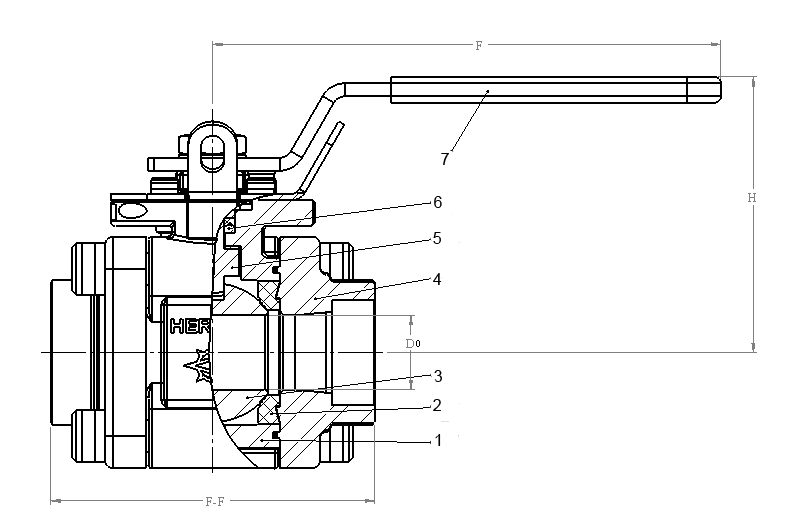

Materials

Materials

DIN EN

ASTM

1

Body

1.4409

A 351 CF3M

2

Ball seal

Carbon filled (25%)

3

Ball

1.4401

A 479 Grade 316

4

Side connection

1.4409

A 351 CF3M

5

Stem

1.4404

A 479 Grade 316

6

Gland packing

PTFE / Carbon filled (25%)

7

Lever

1.4301

A 240 Grade 304
Versions

Technical data - Standard design

Nominal size

[DN]

Height (H)

[mm]

Orifice (D0)

[mm]

Weight

[kg]

Kvs-value

[m³/h]

Cv-value

[gal/min]

Length (f)

[mm]

ISO 5211

10

69

8.0

1.1

5.7

6.6

127

F03

15

69

14.5

1.0

10.7

12.4

127

F03

20

80

19.5

1.8

24.7

28.6

157

F04

25

85

25.0

2.5

32.1

37.1

157

F04

32

95

32.0

3.8

77.9

90.1

240

F05

40

99

38.0

5.0

122.3

141.4

240

F05

50

141

50.0

11.4

124.1

143.7

420

F07

65

197

64.5

21.8

188.6

218.4

462.5

F10

80

233

80.0

35.7

279.8

323.7

600

F10
