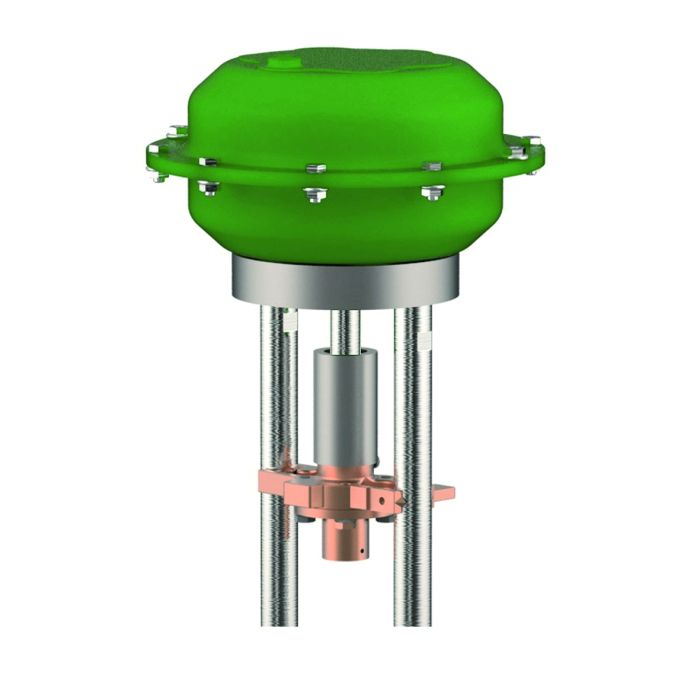

Type 27511 - Pneumatic Actuator - Globe Valve (on/off)
The product shown in the picture may differ from the product sold.
Live Stock: Out-Of Stock pcs (ON STOCK)
| Solution | LNG, Air Gases |
|---|---|
| Solution Area | Transport, Storage, Refueling, Processes |
| SKU | CR_27511_1 |

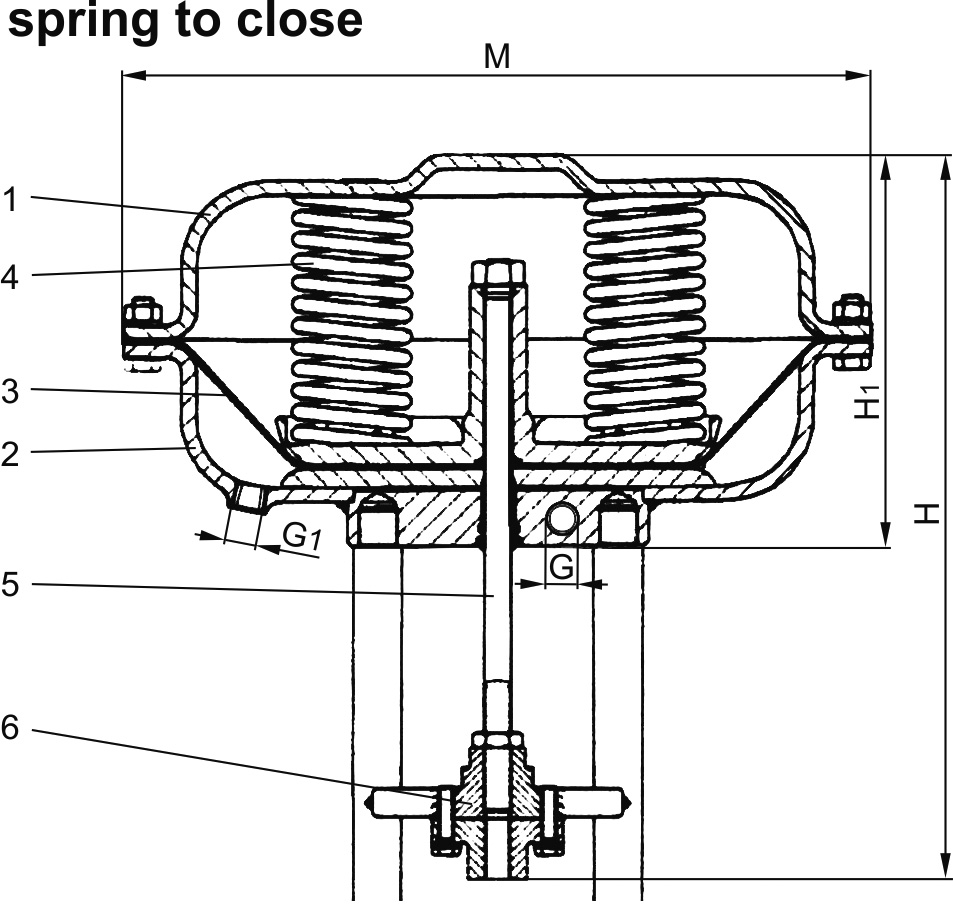

Materials |
DIN EN |
ASTM |
|
|---|---|---|---|
1 |
Body |
1.0333 |
A 619 Grade 1008 |
2 |
Body |
1.0333 |
A 619 Grade 1008 |
3 |
Diaphragm |
NBR |
|
4 |
Springs |
1.1200 |
A 576 Grade 1045 |
5 |
Actuator stem |
1.4301 |
A 276 Grade 304 |
6 |
Coupling |
CC333G |
B 148 UNS C95800 |
Type 27511 |
Technical data |
|||||||
|---|---|---|---|---|---|---|---|---|
Part No. Actuator |
27511 |
|||||||
.15A6.3SPO |
.35B6.6GPO |
.60A6.6GPO |
.60C6.7GPO |
.75B6.3DPO |
.75B6.5DPO |
.75B6.7DPO |
||
Diameter Actuator |
M |
162 |
210 |
310 |
310 |
430 |
430 |
430 |
Height |
H |
256 |
276 |
309 |
352 |
353 |
353 |
353 |
Height |
H1 |
116 |
136 |
166 |
186 |
234 |
234 |
234 |
Thread |
G |
G1/8'' with Ermeto-Fitting L8 |
- |
- |
- |
- |
- |
- |
Thread |
G1 |
- |
1/4'' NPT |
1/4'' NPT |
1/4'' NPT |
1/4'' NPT |
1/4'' NPT |
1/4'' NPT |
Diaphragm area |
cm² |
120 |
280 |
530 |
530 |
1000 |
1000 |
1000 |
Spring range |
bar |
0.9 - 2.0 |
0.8 - 3.0 |
0.8 - 2.8 |
0.7 - 3.0 |
0.7 - 2.1 |
1.2 - 3.4 |
1.6 - 4.7 |
Minimum air pressure |
bar |
2.2 |
3.2 |
3.0 |
3.2 |
2.3 |
3.6 |
4.9 |
Regulating lift |
mm |
20 |
35 |
40 |
60 |
60 |
60 |
60 |
Weight |
ca. kg |
3.0 |
5.0 |
12.5 |
14.0 |
37.0 |
39.0 |
41.0 |
