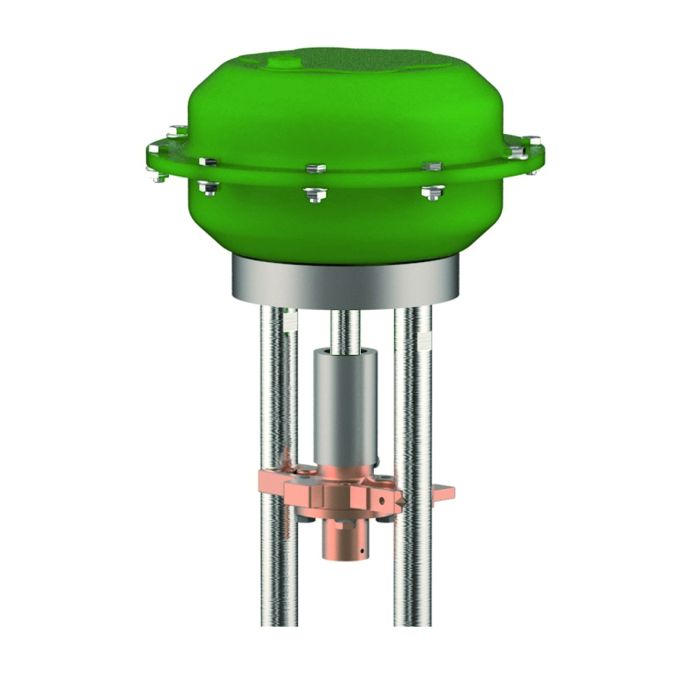

Type 27512 - Pneumatic Actuator - Globe Valve (on/off)

Datasheet ID: CR_27512_1
Description chevron-down

Pneumatic Actuators for Globe Valves (on/off)

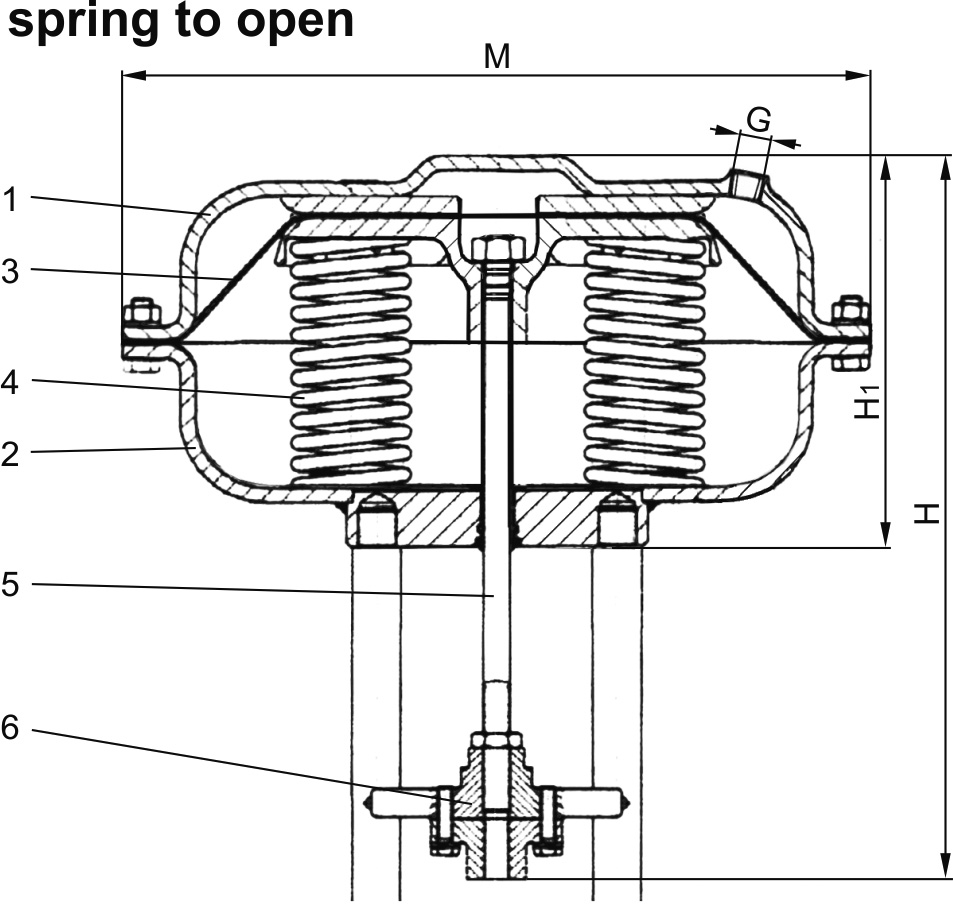

Actuator - spring to open, air to close

maximum air pressure for operation 6.0 bar g

Actuator coating outside - Epoxy resin

Available options - on request only:

· Pneumatic actuator with override handwheel

Ambient temperature limit: -20°C / -4°F (253K) up to +80°C / 176°F (353K)

Data sheets chevron-down
More Information
Type (Series) 27512
Solution LNG, Air Gases
Solution Area Transport, Storage, Refueling, Processes
SKU CR_27512_1
Materials

Materials

DIN EN

ASTM

1

Body

1.0333

A 619 Grade 1008

2

Body

1.0333

A 619 Grade 1008

3

Diaphragm

NBR

4

Springs

1.1200

A 576 Grade 1045

5

Actuator stem

1.4301

A 276 Grade 304

6

Coupling

CC333G

B 148 UNS C95800
Versions

Type 27512

Technical data

Part No. Actuator

27512

.15A6.3SPS

.35B6.6GPS

.60A6.6GPS

.60C6.7GPS

.75B6.2SPS

Diameter Actuator

M

162

210

310

310

430

Height

H

256

276

309

352

353

Height

H1

116

136

166

186

234

Thread

G

1/4'' NPT

1/4'' NPT

1/4'' NPT

1/4'' NPT

1/4'' NPT

Diaphragm area

cm²

120

280

530

530

1000

Spring range

bar

0.9 - 2.0

0.8 - 3.0

0.8 - 2.8

0.7 - 3.0

0.3 - 0.9

Minimum air pressure

bar

6.0

6.0

6.0

6.0

6.0

Regulating lift

mm

20

35

40

60

60

Weight

ca. kg

3.0

5.0

12.5

14.0

37.0
