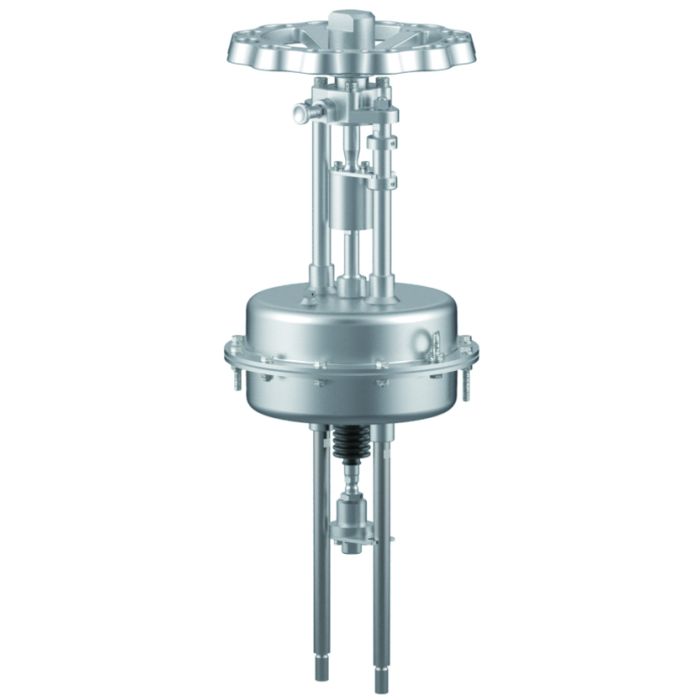

Type 27514 - Pneumatic Actuator - Globe Valve (on/off)
The product shown in the picture may differ from the product sold.
Type 27514 - Pneumatic Actuator - Globe Valve (on/off)
Datasheet ID: CR_27514_2
Currently out of stock
Delivery Times
On Stock:
Out-Of Stock:
The actual delivery time will be determined individually and is part of the order confirmation.
Live Stock: Out-Of Stock pcs (ON STOCK)
More Information
| Solution | LNG, Air Gases |
|---|---|
| Solution Area | Transport, Storage, Refueling, Processes |
| SKU | CR_27514_2 |

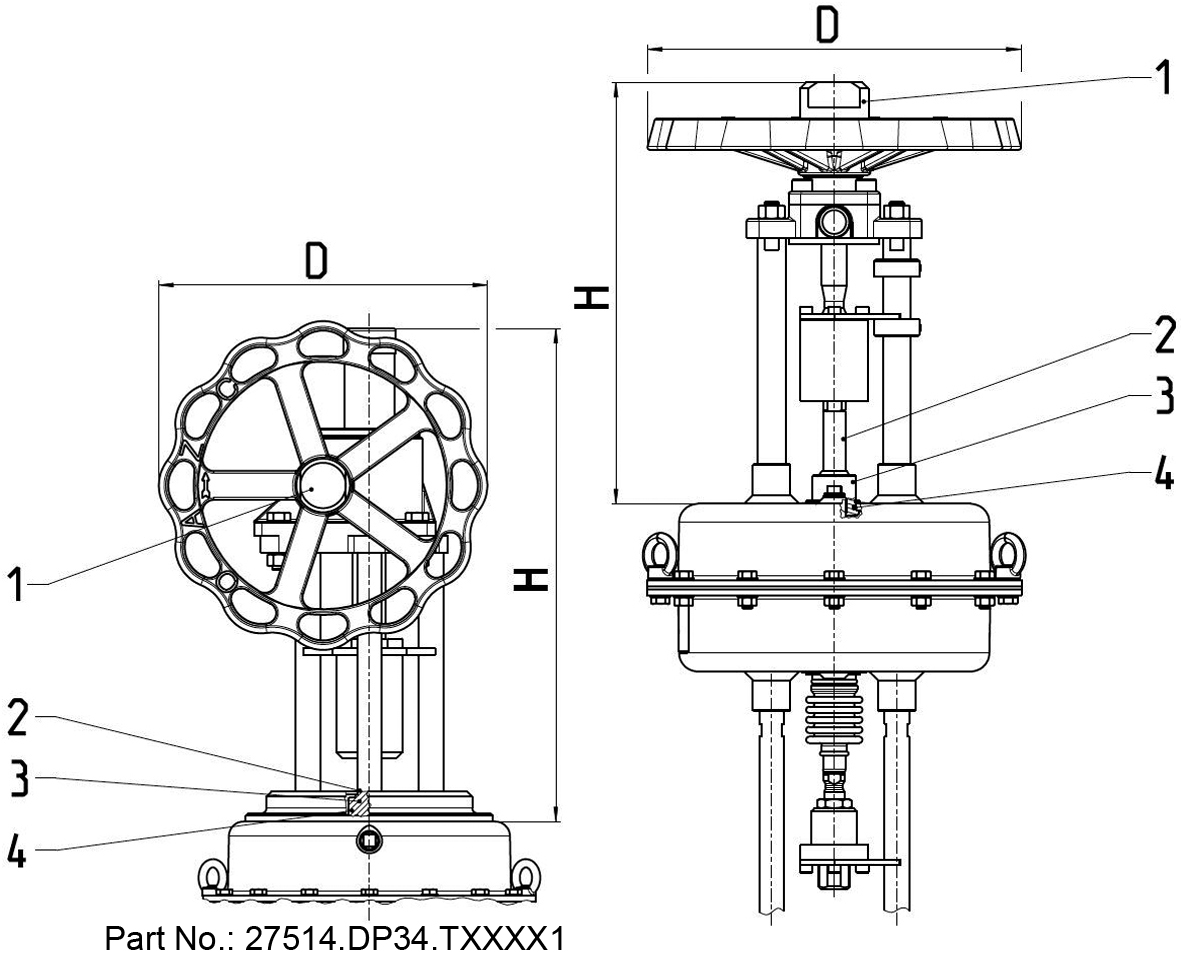

Materials
Materials |
DIN EN |
ASTM |
|
|---|---|---|---|
1 |
Cap |
1.4571 |
A 276 Grade 316Ti |
2 |
Stem extension |
1.4571 |
A 276 Grade 316Ti |
3 |
Stem guide |
1.4571 |
A 276 Grade 316Ti |
4 |
O-ring |
NBR |
Versions
Type 27514 |
Technical Data |
||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
Part No. Actuator |
27514.DP3X.XXXXXX |
||||||||||
Dimension code |
*X.XXX XXX |
0.2O2 2H1 |
2.2O0 8H1 |
2.2O2 0H1 |
3.3O2 0H1 |
4.5O1 5H1 |
4.5O2 0H1 |
4.T0P 1H1 |
4.T0P OH1 |
4.TRP 1H1 |
4.TRP OH1 |
Diameter Handwheel |
D |
225 |
225 |
225 |
300 |
397 |
397 |
400 |
400 |
400 |
400 |
Height |
H |
284 |
284 |
284 |
297 |
458 |
458 |
613 |
613 |
613 |
613 |
Weight |
ca. kg |
10.0 |
14.0 |
14.0 |
20.0 |
62.0 |
62.0 |
157.0 |
157.0 |
191.0 |
191.0 |
