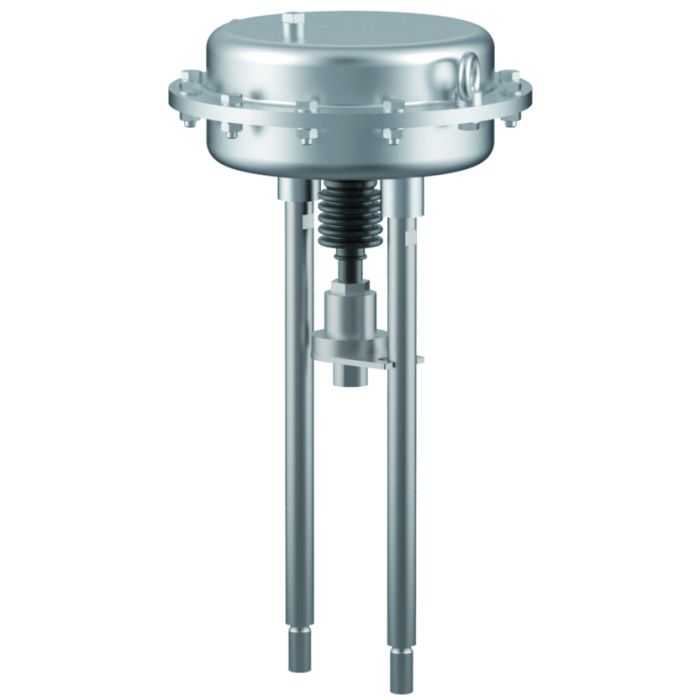

Type 27514 - Pneumatic Actuator - Control Valve
The product shown in the picture may differ from the product sold.
Live Stock: Out-Of Stock pcs (ON STOCK)
| Solution | LNG, Air Gases |
|---|---|
| Solution Area | Transport, Storage, Refueling, Processes |
| SKU | CR_27514_3 |
Materials |
DIN EN |
ASTM |
|
|---|---|---|---|
1 |
Body |
1.0335 |
A 622 Grade 1008 |
2 |
Diaphragm |
NBR + tissue |
|
3 |
Springs |
1.4310 |
A 313 Grade 301 |
4 |
Actuator stem |
1.4571 |
A 276 Grade 316Ti |
5 |
Coupling |
1.4571 |
A 276 Grade 316Ti |

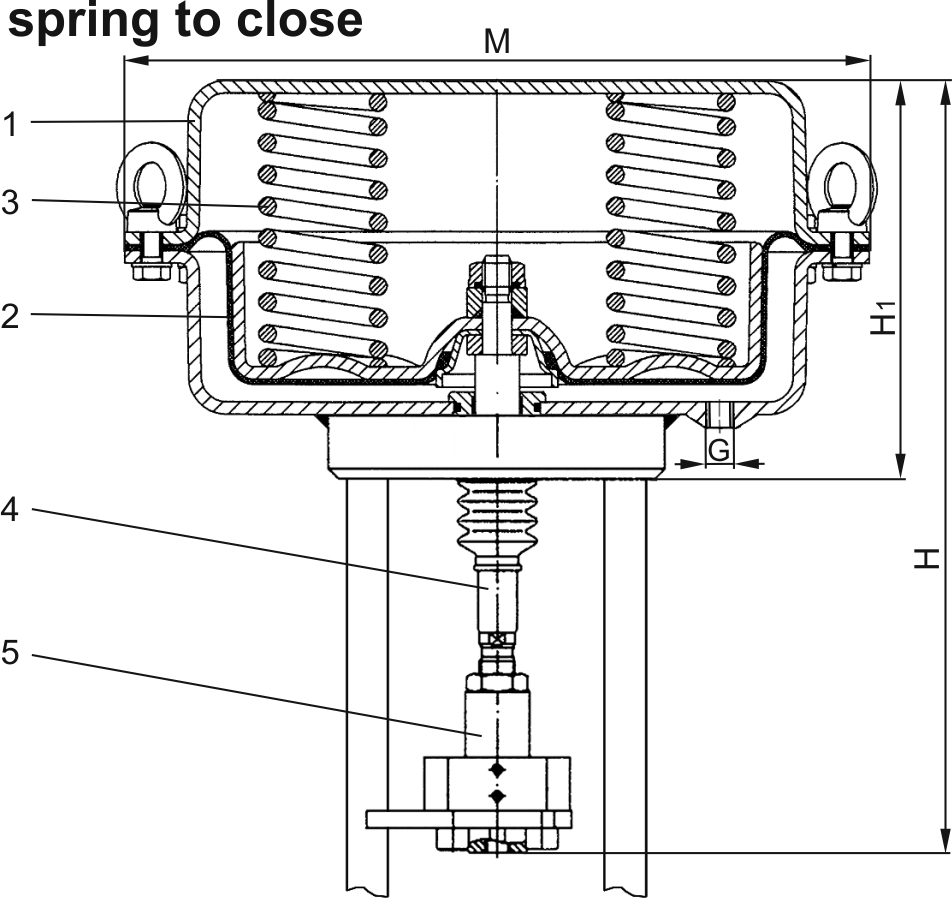

Type 27514 |
Technical Data |
||||||||
|---|---|---|---|---|---|---|---|---|---|
Part No. Actuator |
27514 |
||||||||
.DP30.2O22 |
.DP32.2O08 |
.DP32.2O20 |
.DP33.3O20 |
.DP34.5O15 |
.DP34.5O20 |
.DP34.T0PO (Tandem) |
.DP34.TRPO (Triple) |
||
Diameter Actuator |
M |
168 |
250 |
250 |
300 |
405 |
405 |
405 |
405 |
Height |
H |
ca. 244 |
ca. 240 |
ca. 240 |
ca. 300 |
ca. 375 |
ca. 375 |
ca. 635 |
ca. 884 |
Height |
H1 |
122 |
124 |
124 |
166 |
228 |
228 |
450 |
672 |
Thread |
G |
G 1/4" |
G 1/4'' |
G 1/4'' |
G 1/4'' |
G 3/8'' |
G 3/8'' |
G 3/8'' |
G 1/2" |
Diaphragm area |
cm² |
80 |
250 |
250 |
400 |
800 |
800 |
1600 (2x800) |
2400 (3x800) |
Spring range |
bar |
2.2 - 4.5 |
0.8 - 2.4 |
2.0 - 3.8 |
2.0 - 4.0 |
1.5 - 3.0 |
2.0 - 4.0 |
2.0 - 4.0 |
2.0 - 4.0 |
Minimum air pressure |
bar |
4.8 |
2.7 |
3.6 |
4.5 |
3.3 |
4.5 |
4.5 |
4.5 |
Regulating lift |
mm |
20 |
20 |
20 |
30 |
50 |
50 |
50 |
65 |
Weight |
ca. kg |
5.0 |
9.0 |
9.0 |
15.0 |
45.0 |
45.0 |
116.0 |
150.0 |
