Type 27515 - Pneumatic Actuator - Globe Valve (on/off)

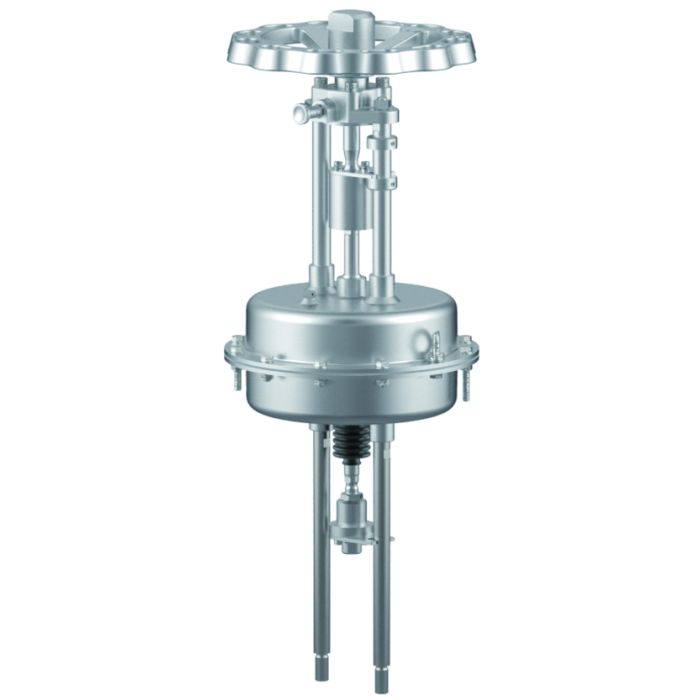

The product shown in the picture may differ from the product sold.
Type 27515 - Pneumatic Actuator - Globe Valve (on/off)
Datasheet ID: CR_27515_2
Currently out of stock
Delivery Times
On Stock:
Out-Of Stock:
The actual delivery time will be determined individually and is part of the order confirmation.
Live Stock: Out-Of Stock pcs (ON STOCK)
More Information
| Solution | LNG, Air Gases |
|---|---|
| Solution Area | Transport, Storage, Refueling, Processes |
| SKU | CR_27515_2 |

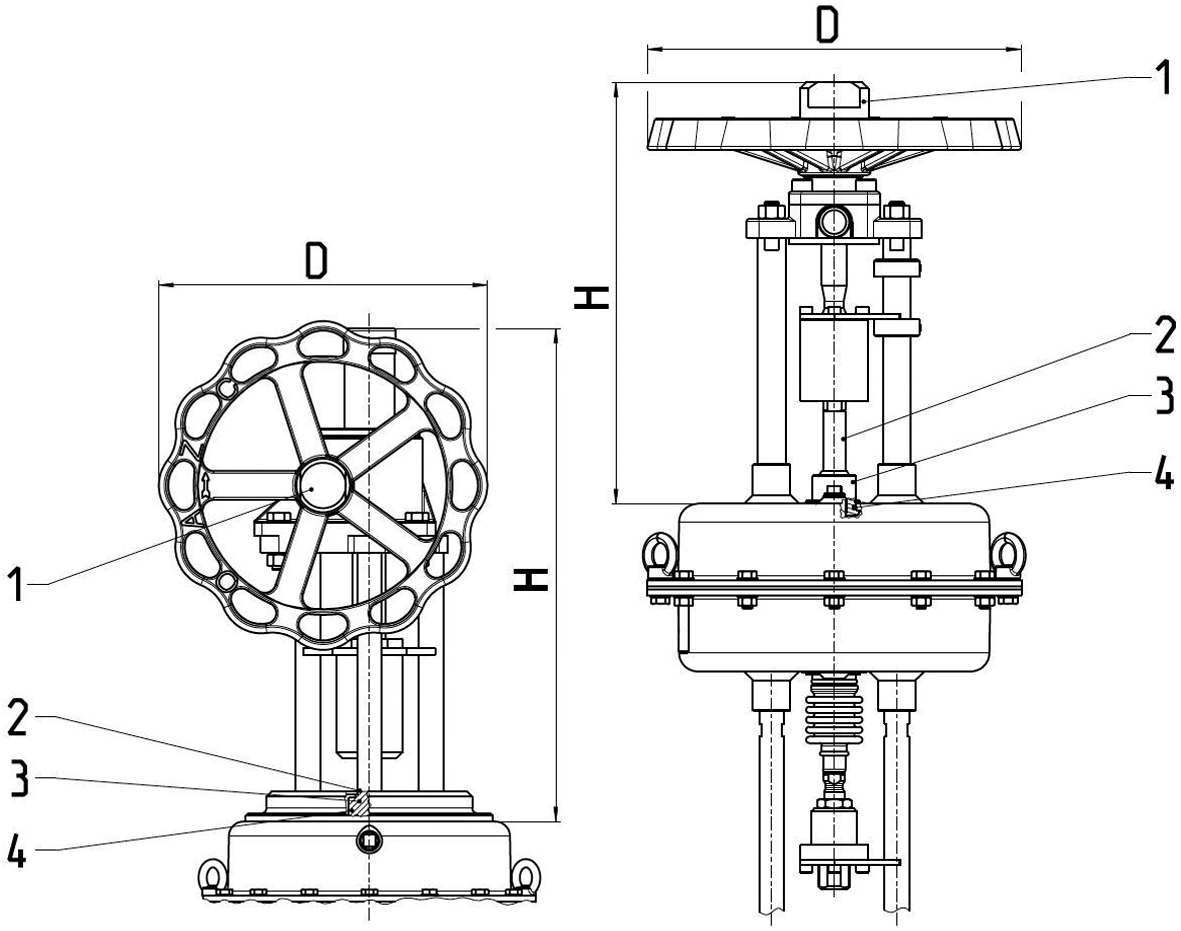

Materials
Materials |
DIN EN |
ASTM |
|
|---|---|---|---|
1 |
Cap |
1.4571 |
A 276 Grade 316Ti |
2 |
Stem extension |
1.4571 |
A 276 Grade 316Ti |
3 |
Stem guide |
1.4571 |
A 276 Grade 316Ti |
4 |
O-ring |
NBR |
Versions
Type 27515 |
Technical data |
||||
|---|---|---|---|---|---|
Part No. Actuator |
27515.DP3X.XXXXXX |
||||
Dimesion code |
*X.XXX XXX |
0.2S0 6H1 |
2.3S0 2H1 |
3.3S0 2H1 |
4.5S0 2H1 |
Diameter Handwheel |
D |
225 |
225 |
300 |
397 |
Height |
H |
284 |
284 |
297 |
458 |
Weight |
ca. kg |
10.0 |
14.0 |
20.0 |
62.0 |
