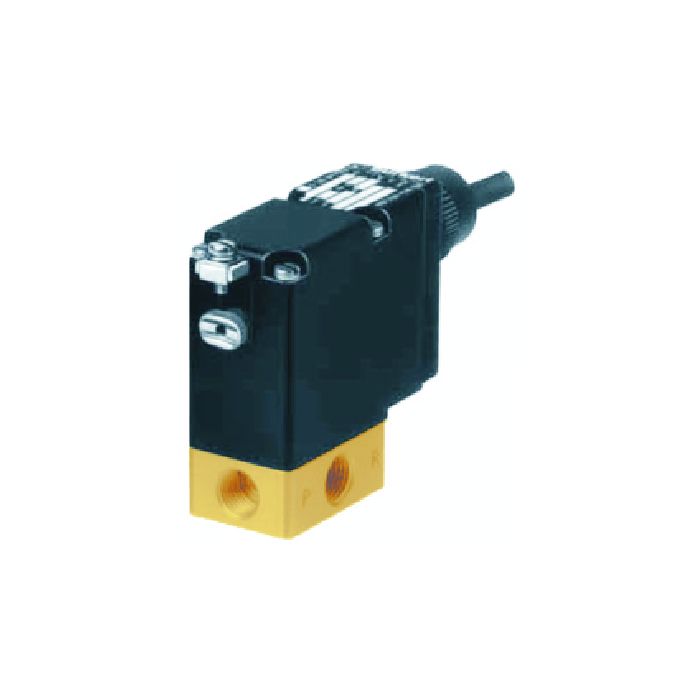

Type 40061 - Solenoid Valve EEx

3/2 way Solenoid Valve, EEx-protected

direct acting solenoid valve DN3, fast acting, body in brass, protecting class IP65,

EPS 16 ATEX 1 111X; II 2 G Ex mb IIC T 4 Gb; II 2 D EX mb IIIC T130° Db

with cable 3 x 0,5 mm², circuit function: power free - outlet balanced,

Pressure range 0 - 10.0 bar, Voltage tolerance ±10%, semi time-lag fuse acc. to nominal voltage

UC = universal current (universal control voltage)

Port connection 1/4" G (BSPP) thread: X= 0

Port connection 1/4" NPT thread: X= 6

Version with NBR sealing

port connections G (BSPP) 1/4 female thread, for neutral medium like air and water

Medium temperature: 0°C / 32°F up to +80°C / 176°F

Ambient temperature: 0°C / 32°F up to max. +55°C / 131°F -HTMLBREAK- -HTMLBREAK-

Part No. 400611020X.C024030 - Operating voltage 24V, UC, with 3 meter cable

Part No. 400611020X.C024100 - Operating voltage 24V, UC, with 10 meter cable

Part No. 400611020X.C230030 - Operating voltage 230V, UC, with 3 meter cable

Part No. 400611020X.C11A030 - Operating voltage 110V, AC (50 Hz), with 3 meter cable -HTMLBREAK- -HTMLBREAK-

Available options - on request only:

· other port connections (G1/8), body and seat material 1.4401

· circuit functions: power free - outlet pressure loaded
