Type 40070, Type 40071 - Position and Limit Switches

Position and Limit Switches

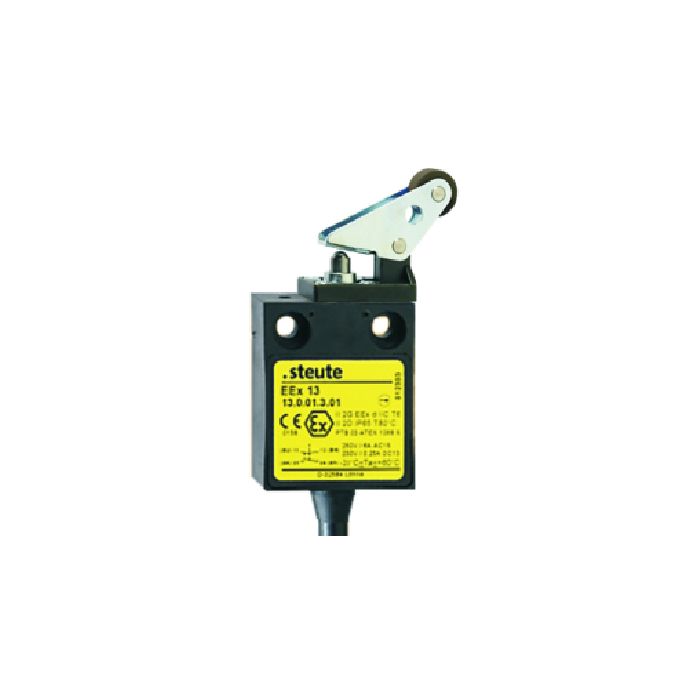

Limit switch (0/100%) with parallel roller lever and fixing device, quick-break switch,

Max. fuse rating 6A gL/gD D-fuse, Switching fequency 3600/h

Standard version

Protection class IP65 acc. to EN 60529,

Rated operating current/-voltage Ie/Ue: 6A / 400VAC,

3 cable entries M16 x 1.5,

change-over contact with double break (1 break contact/ 1 make contact),

Ambient temperature -20°C / -4°F up tp +80°C / 176°F

Part No. 40070.0011.0100100-HTMLBREAK-
