Type 40080 - Inductive Proximity Switches

Inductive proximity switches

Functions: inductive, Switching element function NAMUR NC, Output polarity NAMUR,

Rated operating distance 2 mm, Assured operating distance 0 - 1.62 mm, Installation embeddable,

Nominal voltage 8.2V, Switch frequency 0 - 1000 Hz, Short-circuit and reverse polarity protection,

Protecting class IP66/ IP67 acc. to EN 60529, EEX ia IIC T6

Indication of the switching state all direction LED yellow, with cable 2m x 0.34 mm²

Ambient temperature: -25°C / -13°F up to +70°C / 158°F -HTMLBREAK- -HTMLBREAK-

Part No. 4008011235.0A20100 - with 2 meter cable

Part No. 4008011235.0A20400 - with 10 meter cable

-HTMLBREAK- -HTMLBREAK-

Functions: inductive, Switching element function PNP closer, Output polarity DC,

Rated operating distance 2 mm, Assured operating distance 0 - 1.62 mm, Installation embeddable,

Nominal voltage 10 - 60V, Switch frequency 0 - 3000 Hz, Short-circuit and reverse polarity protection,

Protecting class IP66/ IP67 acc. to EN 60529

Indication of the switching state all direction LED yellow, with appliance inlet M12 x 1 - 4 pole

Ambient temperature: -25°C / -13°F up to +70°C / 158°F -HTMLBREAK- -HTMLBREAK-

Part No. 4008011240.0B10100 - with 2 meter cable -HTMLBREAK- -HTMLBREAK-

Induktive sensor: NCB2-12GM40-Z0

Functions: inductive, Switching element function DC closer, Output polarity DC,

Rated operating distance 2 mm, Assured operating distance 0 - 1.62 mm, Installation embeddable,

Nominal voltage 5 - 60V, Switch frequency 0 - 800 Hz, Short-circuit clocking,

Protecting class IP66/ IP67 acc. to EN 60529

Indication of the switching state all direction LED yellow, with cable 2m x 0.14 mm²

Ambient temperature: -25°C / -13°F up to +70°C / 158°F -HTMLBREAK- -HTMLBREAK-

Part No. 4008011240.0C10100 - with 2 meter cable -HTMLBREAK- -HTMLBREAK-

Available options - on request only:

· Other cable length

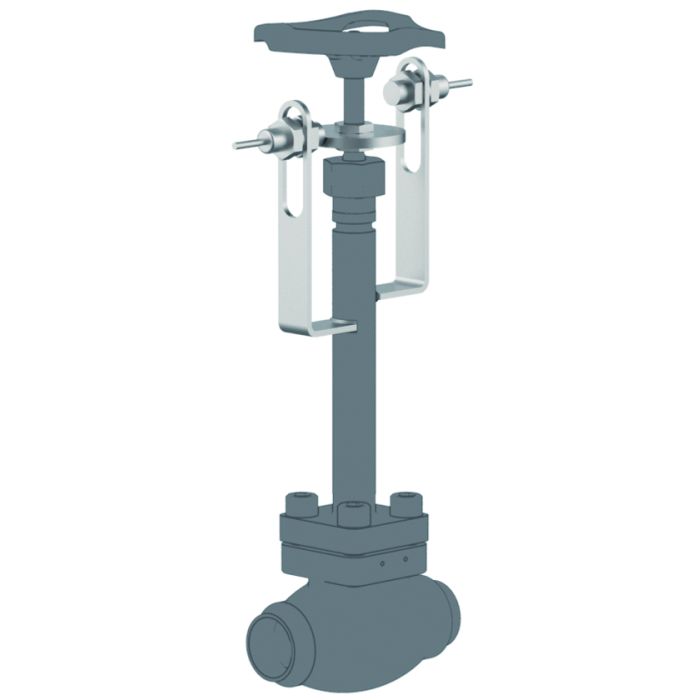

· Adapter for manual operated valves
