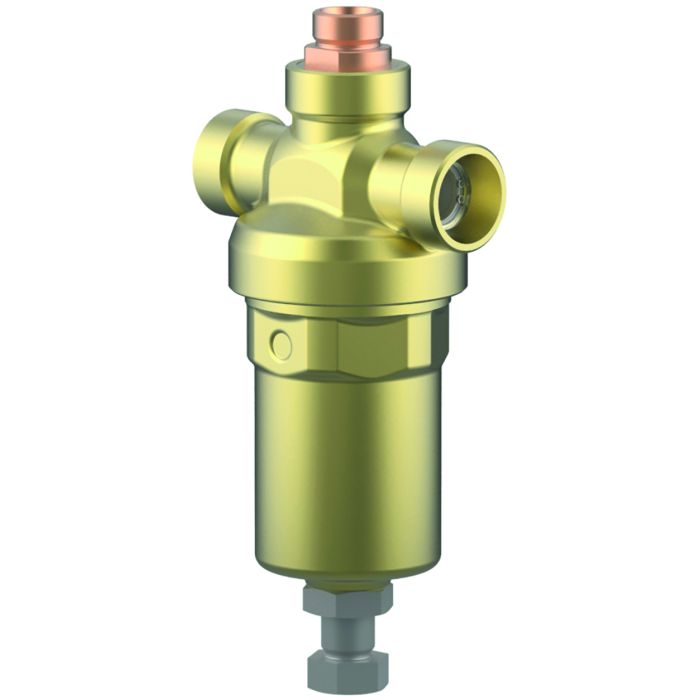

Type 4185-1 - CombiPressure-Regulator

Applications:

Approved for air gases, vapours and cryogenic liquefied gases incl. LNG.

Working temperature: -196°C / -321°F (77K) up to +65°C / 149°F (338K)

Ambient temperature: -40°C / -40°F (233K) up to +65°C / 149°F (338K)

Cryogenic-Pressure Regulator, brass, PN50

Set point range from 1.0 up to 38.0 bar

Connections: male thread for union connection, BSPP (G) or M thread

Cleaning Standard: "¦cleaned and degreased for oxygen service¦"

complete with installed strainer screens - mesh size 0.25 mm - on connection A and B

Part No. 4185-X-1100* Set point range 1.0 up to 12.0 bar

set at 8.0 bar unless otherwise noted on purchase order

Part No. 4185-X-1200* Set point range 6.0 up to 24.0 bar

set at 12.0 bar unless otherwise noted on purchase order

Part No. 4185-X-1300* Set point range 16.0 up to 38.0 bar

set at 20.0 bar unless otherwise noted on purchase order

*connection C: 1 = M thread (cone connection 37°), 2 = BSPP (G) thread (cone connection 60°)

Available options - on request only:

· Further connections

· With check unit type 66044
