Type 06195

Applications:

Provided as overflow valve for protection against excessive pressure in pipe systems and

pressure vessels, which are not subject to approval.

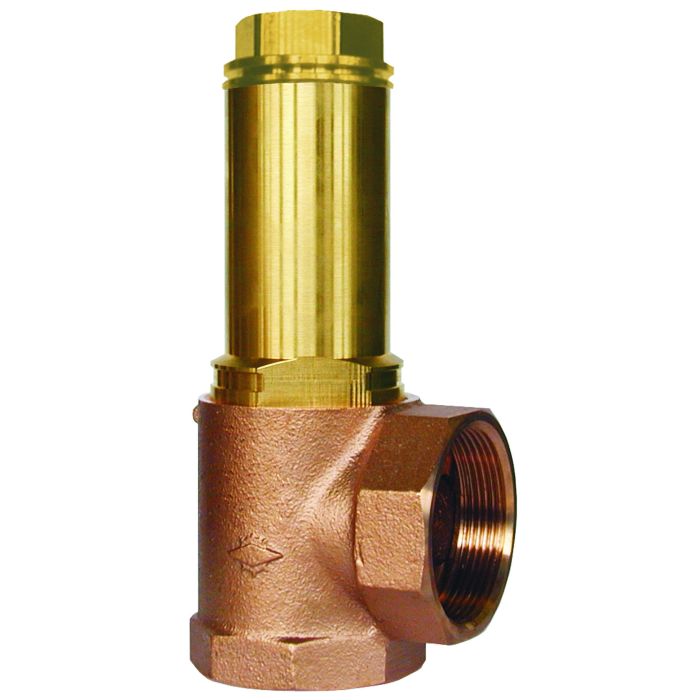

Overflow Valve, angle type, bronze,

not type tested

with soft valve seal, closed bonnet,

In- and Outlet: female thread type G (BSPP) acc. to ISO 228/1

Part No. 06195.X.0000

with NBR valve seal

Working temperature: -10°C / +14°F (263K) up to +110°C / +230°F (383K)

Part No. 06195.X.0700

with FPM valve seal

Working temperature: -10°C / +14°F (263K) up to +165°C / +329°F (438K)

Available options - on request only:

· stainless steel spring - material 1.4571

· external parts nickel plated
