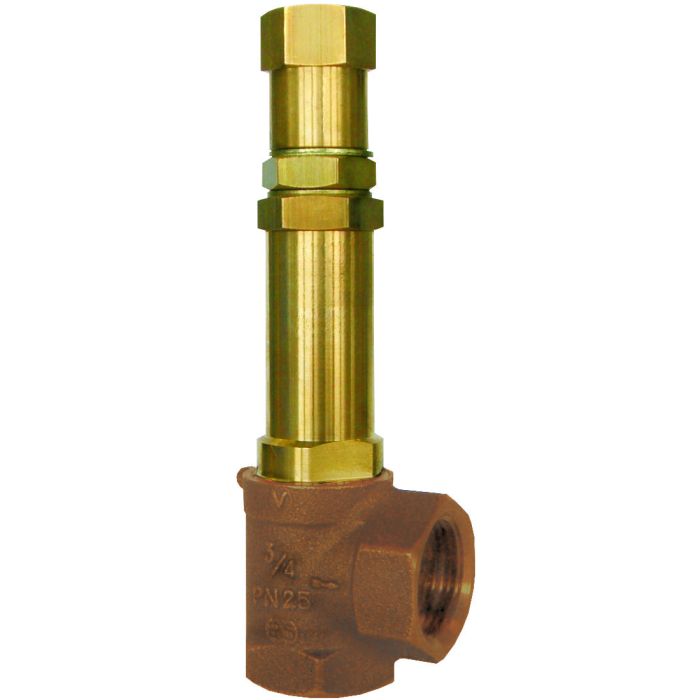

Type 06198

Datasheet ID: IN_06198
Field of application

Applications:

Provided as overflow valve for protection against excessive pressure in pipe systems and

pressure vessels, which are not subject to approval.

Certificates
Gost Ukraine (Gost Ukraine)
Data sheets
Operating Instructions
More Information
Solution Air Gases
Solution Area Storage, Processes
SKU IN_06198

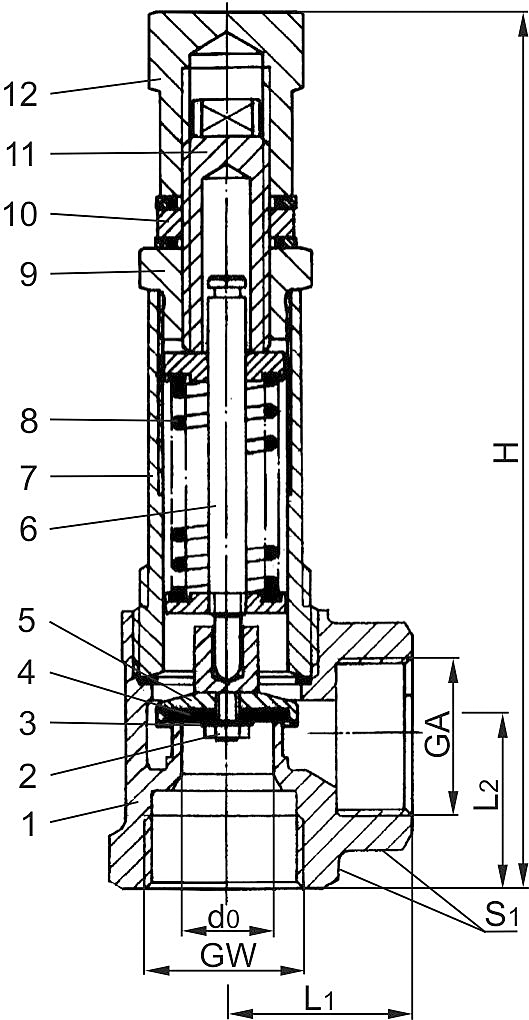

Materials

Materials

DIN EN

ASTM

1

Body

CC491K

B 62 UNS C83600

2

Disc nut

CW614N

B 249 UNS C38500

3

Plate

CW614N

B 249 UNS C38500

4

Valve seal

PTFE or FPM

5

Disc

CW614N

B 249 UNS C38500

6

Stem

CW614N

B 249 UNS C38500

7

Bonnet

CW614N

B 249 UNS C38500

8

Spring

1.1200

A 227

9

Cap

CW614N

B 249 UNS C38500

10

Nut

CW614N

B 249 UNS C38500

11

Adjusting screw

CW614N

B 249 UNS C38500

12

Closing cap

CW614N

B 249 UNS C38500
Versions

Type 06198

Technical data

Nominal size

GW

1/2

3/4

1

Orifice

d0

12

15

18

Dimension code

.X.

0400

0600

1000

Set pressure PTFE valve seal

bar

12.0-25

2.0-25

2.0-25

Set pressure FPM valve seal

bar

0.8-25

0.1-12

5.0-12

Outlet

GA

1/2

3/4

1

Height

H

113

145

165

Length

L1

25

30

36

Length

L2

20

25

30

Wrench size across flats

S1

27

32

41

Weight

ca. kg

0.30

0.55

0.85
