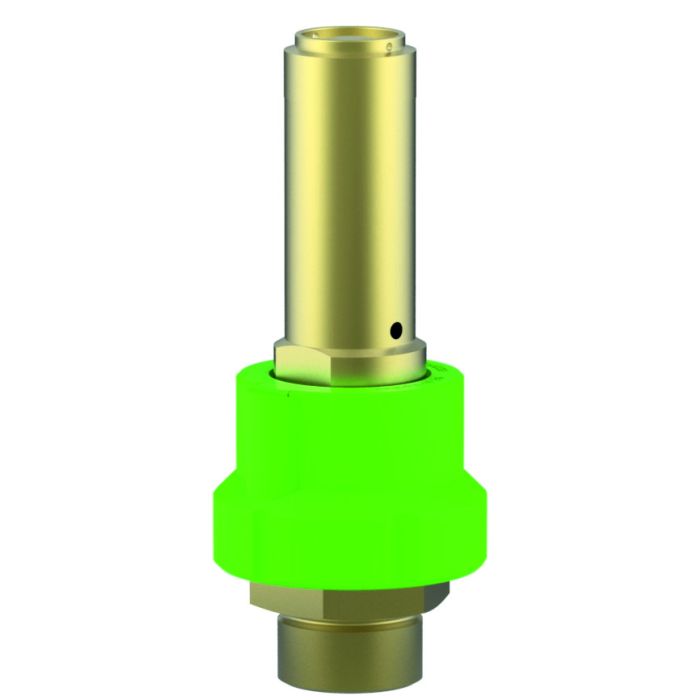

Type 06216, Type 06217 with protection cap
The product shown in the picture may differ from the product sold.
Type 06216, Type 06217 with protection cap
Datasheet ID: IN_06216_06217_wpc
Field of application
Applications:
Provided as safety device for protection against excessive pressure in stationary and
moveable gas cylinders and pressure vessels. Approved for air and similar gases.
Working temperature: -30°C / -22°F (243K) up to +130°C / +266°F (403K), suitable for horizontal installation
Certificates
ASME Code (ASME Code Section VIII)
NB18_EN_91112
NB18_EN_91123
NB18_EN_91134
NB18_EN_91145
NB18_EN_91156
NBBI 78711 278163
NB18_EN_91112
NB18_EN_91123
NB18_EN_91134
NB18_EN_91145
NB18_EN_91156
NBBI 78711 278163
Gost Ukraine (Gost Ukraine)
UA.276.159.04-21
UA.D.159.04-21
UA.276.159.04-21
UA.D.159.04-21
Canadian Registration Number (CRN)
0G07343.50R4_Newfoundland and Labrador
0G07343.51R4 - British Columbia
0G07343.52R4_Alberta
0G07343.54R4_Manitoba
0G07343.56R4_Quebec
0G07343.57R4_New Brunswick
0G07343.5NR4_Nunavut
0G07343.5R4_Ontario
0G07343.5TR4_Northwest Territories
0G07343.5YR4_Yukon
0G07343.58R4_Nova Scotia
0G07343.59R4_Prince Edward Island
0G07343.50R4_Newfoundland and Labrador
0G07343.51R4 - British Columbia
0G07343.52R4_Alberta
0G07343.54R4_Manitoba
0G07343.56R4_Quebec
0G07343.57R4_New Brunswick
0G07343.5NR4_Nunavut
0G07343.5R4_Ontario
0G07343.5TR4_Northwest Territories
0G07343.5YR4_Yukon
0G07343.58R4_Nova Scotia
0G07343.59R4_Prince Edward Island
License of Special Equipment (China) (TS)
TSX71000520210017- Certificate
TSF700D36-2029
TSX71000520210017- Certificate
TSF700D36-2029
Pressure Equipment Directive (2014/68/EU)
0045/202/1201/Z/00532/22/D/001(00)
0045/202/1201/Z/00532/22/D/001(00)
Pressure Equipment Safety Regulation 2016 (PESR 2016)
0879-PESR-B(P)-23290-2-DE
0879-PESR-B(P)-23290-2-DE
TÜV Verband (Approval mark number)
Data sheets
IN_06216_06217_wpc_en.pdf
Operating Instructions
HEROSE-Manual-IN_06216_06217_wpc-1
Delivery Times
The actual delivery time will be determined individually and is part of the order confirmation.
On Stock:
Out-Of Stock:
Delivery Time:
week(s)
The actual delivery time will be determined individually and is part of the order confirmation.
Live Stock:
Out-Of Stock
pcs
(ON STOCK)
Live Stock:
Delivery time (on stock):
Delivery time (off stock):
More Information
| Solution |
Air Gases |
| Solution Area |
Storage, Processes |
| SKU |
IN_06216_06217_wpc |

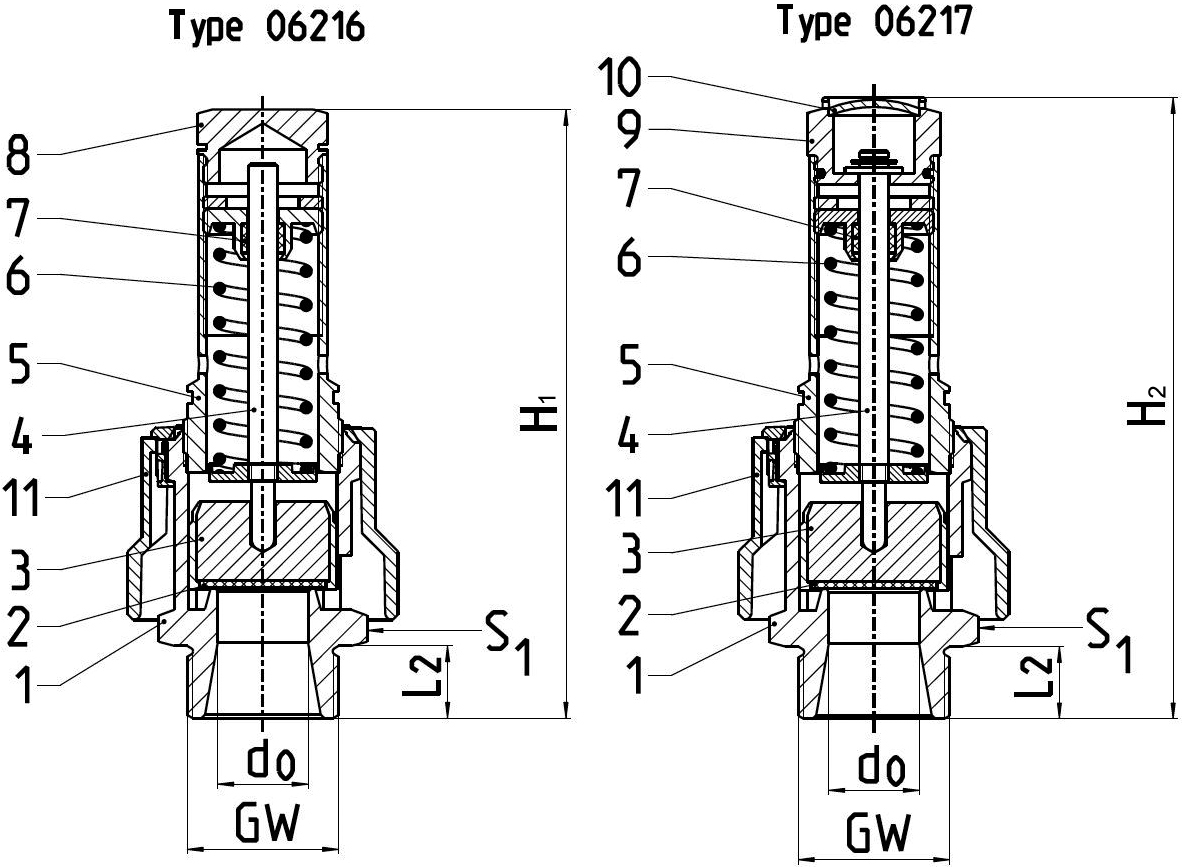

Materials
Materials |
|
DIN EN |
ASME/ASTM |
1 |
Body |
CW617N |
B 283 UNS C37700 |
2 |
Valve seal |
FPM (Viton-GLT) |
|
3 |
Disc |
CW614N |
B 455 UNS C38500 |
4 |
Stem |
CW614N |
B 455 UNS C38500 |
5 |
Bonnet |
CW614N |
B 455 UNS C38500 |
6 |
Spring |
1.1200 |
A 227 |
7 |
Stem guide |
PTFE |
|
8 |
Cap |
CW614N |
B 455 UNS C38500 |
9 |
Lifting device |
CW614N |
B 455 UNS C38500 |
10 |
Closing cap |
CW507L |
B 36 UNS C26800 |
11 |
Protection cap |
|
|
Versions
Type 06216, Type 06217 |
Technical data |
|
|
|
|
|
|
Nominal size |
GW |
1/2 |
3/4 |
1 |
1-1/4 |
1-1/2 |
2 |
Orifice |
d0 |
12 |
15 |
20 |
25 |
32 |
40 |
Dimension code |
.X. |
0400 |
0600 |
1000 |
1200 |
1400 |
2000 |
Set pressure range |
bar |
0.2-25 |
0.2-20 |
0.2-30 |
0.2-22 |
0.2-16 |
0.2-12 |
Height |
H1 |
103 |
122 |
149 |
169 |
198 |
224 |
Height |
H2 |
107 |
126 |
150 |
172 |
200 |
228 |
Length |
L2 |
14 |
16 |
18 |
20 |
22 |
25 |
Diameter |
D |
41.4 |
49.0 |
62.5 |
74.8 |
86.0 |
109.0 |
Wrench size across flats |
S1 |
27 |
32 |
41 |
50 |
55 |
70 |
Weight |
ca. kg |
0.25 |
0.41 |
0.72 |
1.23 |
1.73 |
3.09 |
Coeff. of discharge from 3.0 bar |
αw |
0.83 |
0.83 |
0.73 |
0.71 |
0.69 |
0.66 |
Coeff. of discharge from 3.0 bar |
rated slope |
2.59 |
4.10 |
6.79 |
10.15 |
16.50 |
24.80 |
