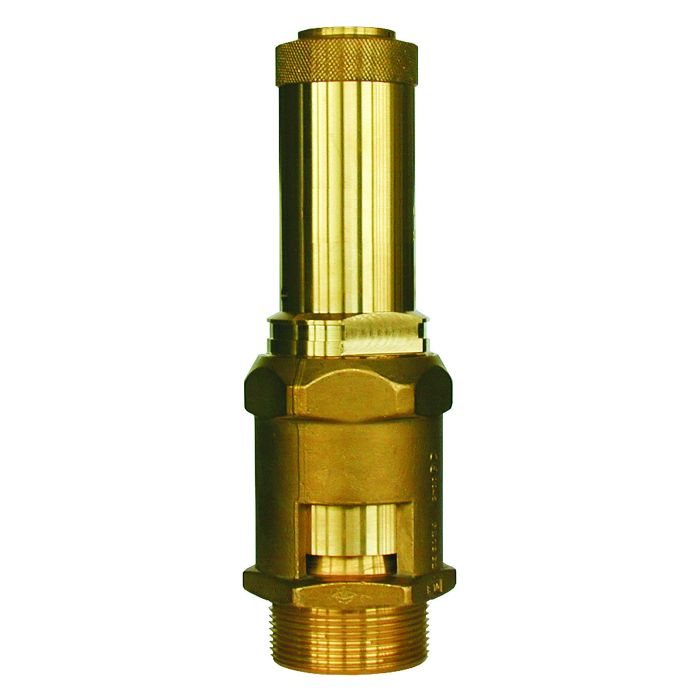

Type 06216, Type 06217

Datasheet ID: IN_06216_06217
Field of application chevron-down

Applications:

Provided as safety device for protection against excessive pressure in stationary and

moveable gas cylinders and pressure vessels. Approved for air and similar gases.

Working temperature: -40°C / -40°F (233K) up to +200°C / +392°F (473K), suitable for horizontal installation

Description chevron-down

Safety Valves, brass,

type tested TÃœV-SV.1090 S/G

Standard safety valve

with FPM valve seal, open bonnet, with discharge holes

Inlet: male thread type G (BSPP) acc. to ISO 228/1

Part No. 06216.X.0000

Part No. 06217.X.0000

with lifting device

Available options - on request only:

· discharge holes with protection cap

(working temperature: -30°C / -22°F (243K) up to +130°C / +266°F (403K))

· stainless steel spring - material 1.4571

· external parts nickel plated

Certificates chevron-down
ASME Code (ASME Code Section VIII) chevron-down
Canadian Registration Number (CRN) chevron-down
Pressure Equipment Directive (2014/68/EU) chevron-down
Pressure Equipment Safety Regulation 2016 (PESR 2016) chevron-down
License of Special Equipment (China) (TS) chevron-down
TÜV Verband (Approval mark number) chevron-down
Ukraine (Ukraine) chevron-down
Data sheets chevron-down
Operating Instructions chevron-down
Declarations of Conformity chevron-down
Pressure Equipment Directive (2014/68/EU) chevron-down
Pressure Equipment Safety Regulation 2016 (PESR 2016) chevron-down
More Information
Type (Series) 06216,06217
Solution Air Gases, Industry
Solution Area Storage, Processes, Compressed Air
SKU IN_06216_06217
Materials

Materials

DIN EN

ASME/ASTM

1

Body

CW617N

B 283 UNS C37700

2

Valve seal

FPM (Viton-GLT)

3

Disc

CW614N

B 455 UNS C38500

4

Stem

CW614N

B 455 UNS C38500

5

Bonnet

CW614N

B 455 UNS C38500

6

Spring

1.1200

A 227

7

Stem guide

PTFE

8

Cap

CW614N

B 455 UNS C38500

9

Lifting device

CW614N

B 455 UNS C38500

10

Closing cap

CW507L

B 36 UNS C26800

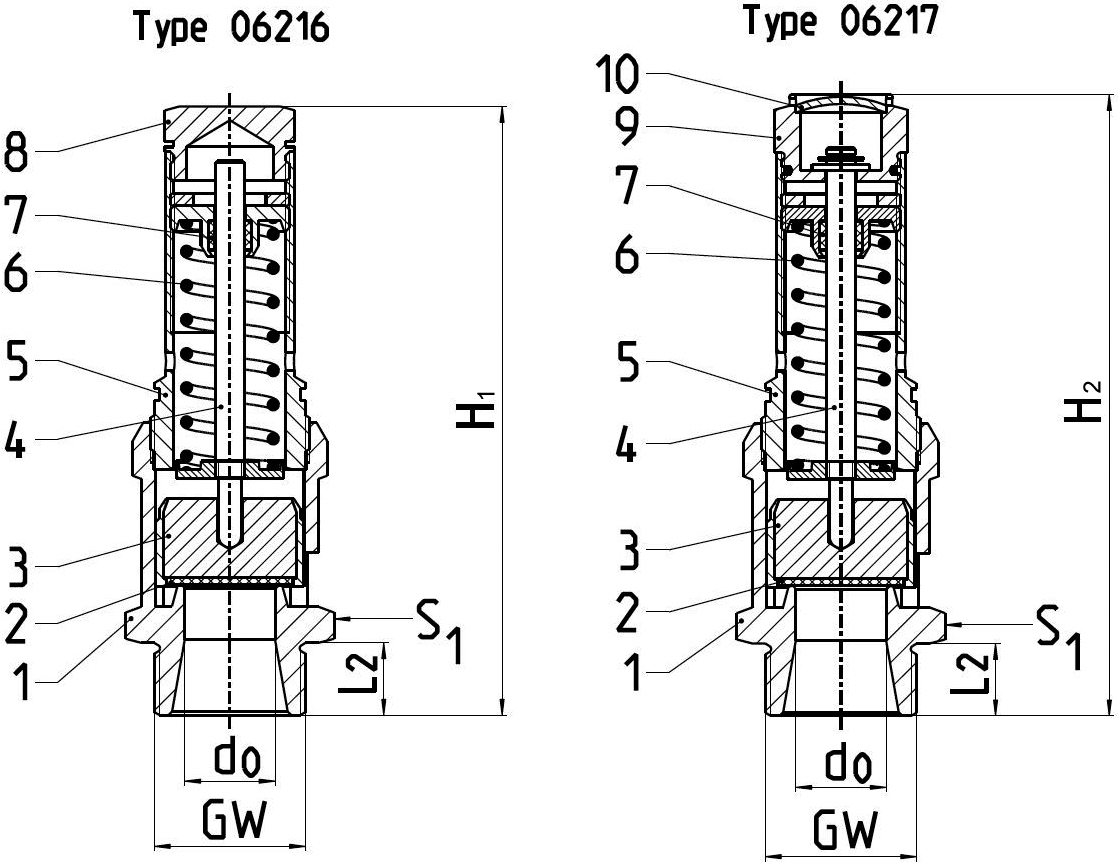

Versions

Type 06216, Type 06217

Technical data

Nominal size

GW

1/2

3/4

1

1-1/4

1-1/2

2

Orifice

d0

12

15

20

25

32

40

Dimension code

.X.

0400

0600

1000

1200

1400

2000

Set pressure range

bar

0.2-25

0.2-20

0.2-30

0.2-22

0.2-16

0.2-12

Height

H1

103

122

149

169

198

224

Height

H2

107

126

150

172

200

228

Length

L2

14

16

18

20

22

25

Wrench size across flats

S1

27

32

41

50

55

70

Weight

ca. kg

0.25

0.41

0.72

1.23

1.73

3.09

Coeff. of discharge from 3.0 bar

αw

0.83

0.83

0.73

0.71

0.69

0.66

Coeff. of discharge from 3.0 bar

rated slope

2.59

4.10

6.79

10.15

16.50

24.80
