Type 06217

Datasheet ID: IN_06217
Field of application chevron-down

Applications:

Provided as safety device for protection against excessive pressure in stationary and

moveable gas cylinders and pressure vessels. Approved for air and similar gases.

Working temperature: -40°C / -40°F (233K) up to +200°C / +392°F (473K), suitable for horizontal installation

Description chevron-down

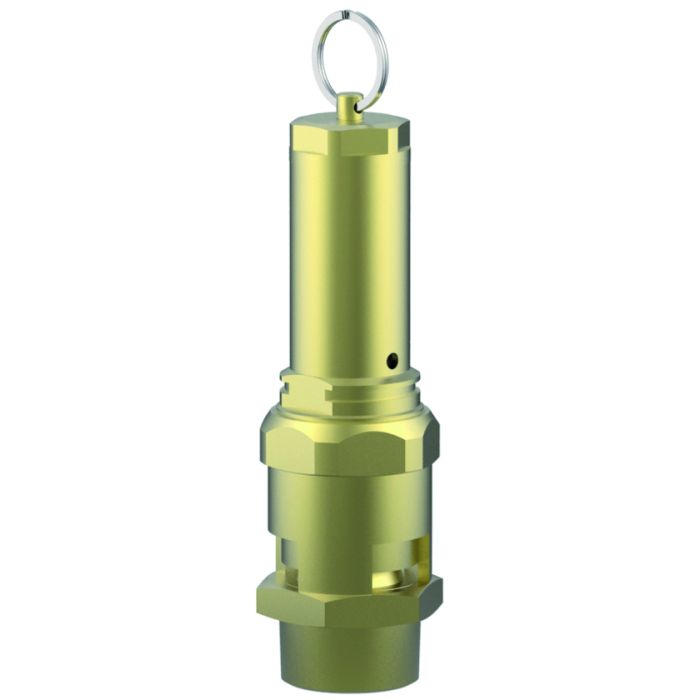

Safety Valves, brass,

type tested ASME Code Section VIII

Standard safety valve

with FPM valve seal, open bonnet, with discharge holes

Inlet: male thread NPT acc. to ANSI B 1.20.1

Part No. 06217.X.5010

with Pull-Ring

Available options - on request only:

· discharge holes with protection cap

· stainless steel spring - material 1.4571

· external parts nickel plated

Certificates chevron-down
ASME Code (ASME Code Section VIII) chevron-down
Canadian Registration Number (CRN) chevron-down
Pressure Equipment Directive (2014/68/EU) chevron-down
Pressure Equipment Safety Regulation 2016 (PESR 2016) chevron-down
License of Special Equipment (China) (TS) chevron-down
TÜV Verband (Approval mark number) chevron-down
Ukraine (Ukraine) chevron-down
Data sheets chevron-down
Declarations of Conformity chevron-down
Pressure Equipment Directive (2014/68/EU) chevron-down
Pressure Equipment Safety Regulation 2016 (PESR 2016) chevron-down
More Information
Type (Series) 06217
Solution Air Gases, Industry
Solution Area Storage, Processes, Compressed Air
SKU IN_06217

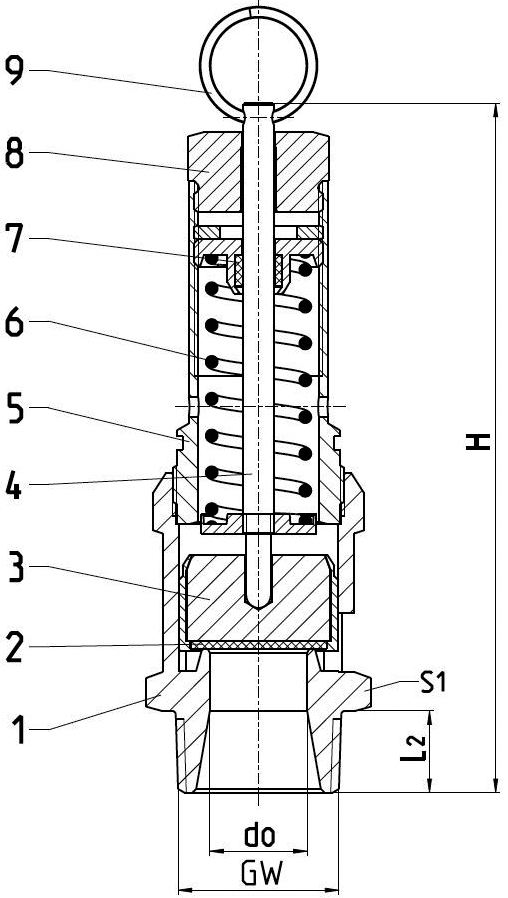

Materials

Materials

DIN EN

ASME/ASTM

1

Body

CW617N

B 283 UNS C37700

2

Valve seal

FPM (Viton-GLT)

3

Disc

CW614N

B 455 UNS C38500

4

Stem

CW614N

B 455 UNS C38500

5

Bonnet

CW614N

B 455 UNS C38500

6

Spring

1.1200

A 227

7

Stem guide

PTFE

8

Cap

CW614N

B 455 UNS C38500

9

Pull-Ring

Steel

Versions

Type 06217

Technical data

Nominal size

GW

1/2

3/4

1

1-1/4

1-1/2

2

Orifice d0

inch

0.472

0.591

0.787

0.984

1.260

1.575

Dimension code

.X.

0400

0600

1000

1200

1400

2000

Set pressure range

psi

15-362

15-435

15-279

15-179

15-111

15-71

Height H

inch

4.291

5.118

6.260

6.930

8.110

9.114

Length L2

inch

0.551

0.630

0.709

0.787

0.866

0.984

Wrench size across flats S1

inch

1.063

1.260

1.614

1.969

2.165

2.756

Weight

lb

0.551

0.904

1.587

2.712

3.814

6.812

Coeff. of discharge from 44 psi

rated slope

2.59

4.10

6.79

10.15

16.50

24.80
