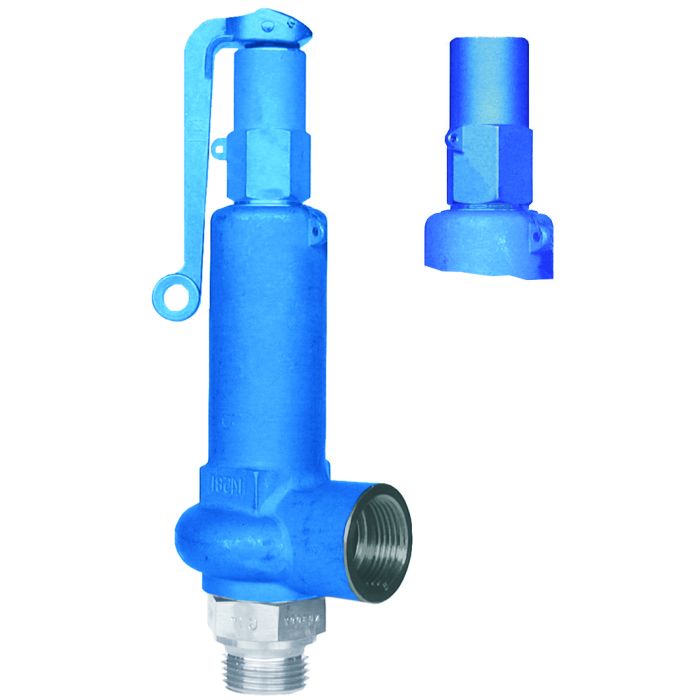

Type 06321

Datasheet ID: IN_06321
Field of application

Applications:

Provided as overflow valve for protection against excessive pressure in pipe

systems and pressure vessels, which are not subject to approval.

Working temperatures: -10°C / +14°F (263K) up to +280°C / +536°F (553K)

Data sheets
More Information
Solution Air Gases
Solution Area Storage, Processes
SKU IN_06321
Materials

Materials

DIN EN

ASTM

1

Body + Bonnet

0.7043

A 395

2

Inlet body

1.4104

A 276 Grade 430F

3

Disc

1.4571

A 276 Grade 316Ti

4

Stem

1.4104

A 276 Grade 430F

5

Spring

1.4310

A 313 Grade 301

6

Lifting cap

1.4104

A 276 Grade 430F

7

Lifting stem

1.4305

A 276 Grade 303

8

Lever

3.2581

no reference

9

Cap

1.0718

A 108
Versions

Type 06321

Technical data

Nominal size

GW

3/8

3/8

1/2

3/4

3/4

3/4

1

1

1-1/4

1-1/2

Orifice

d0

8

10

12.5

8

12.5

16

12.5

16

22

27

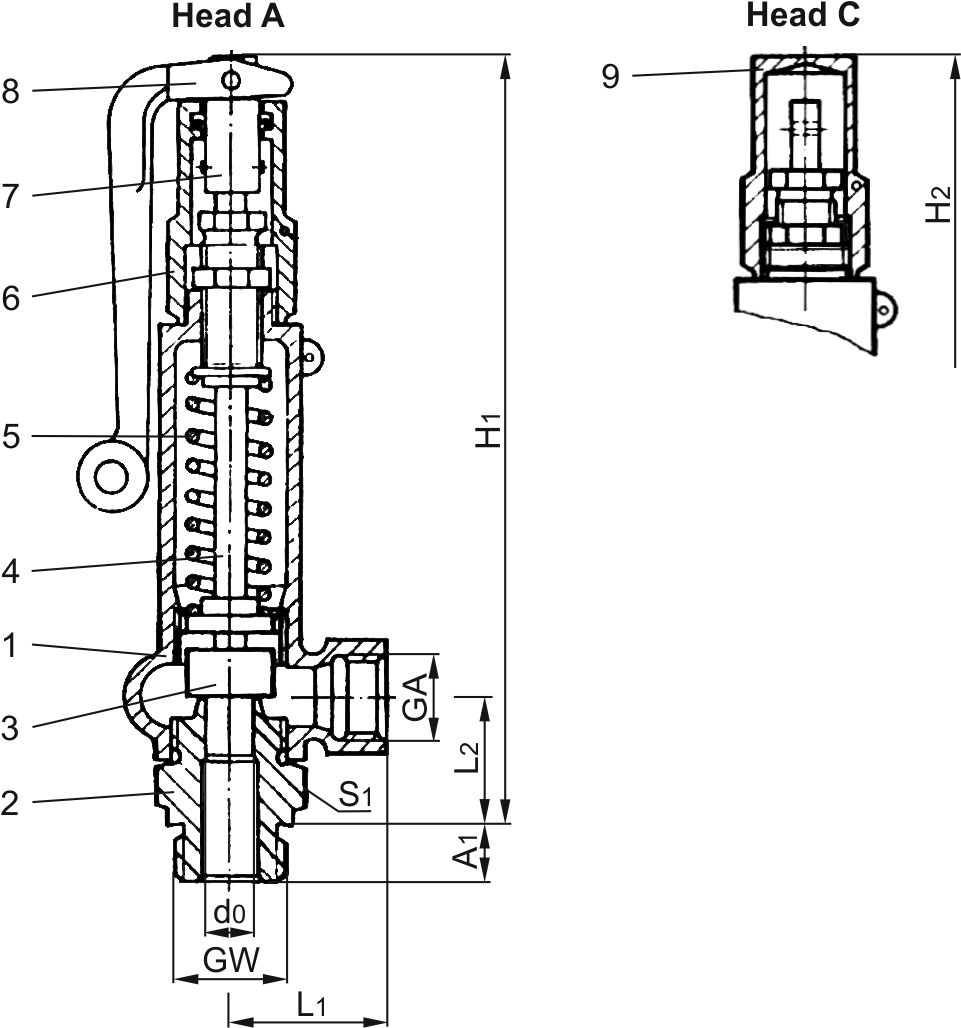

Dimension code

.X.

0803

1003

1204

0806

1206

1606

1210

1610

2212

2714

Set pressure range

bar

50-200

0.1-140

0.1-120

50-200

50-170

0.1-90

50-170

0.1-90

0.05-55

0.05-45

Outlet

GA

1/2

1/2

1/2

1

1

1

1

1

1

1

Height

H1

200

200

200

200

230

230

230

230

230

230

Height

H2

185

185

185

185

215

215

215

215

215

215

Length

L1

40

40

40

40

50

50

50

50

50

50

Length

L2

34

34

34

34

40

40

40

40

40

40

Length

A1

12

12

14

16

16

16

18

18

20

20

Wrench size across flats

S1

32

32

32

32

41

41

41

41

41

41

Weight

ca. kg

1.0

1.0

1.0

1.0

1.6

1.6

1.6

1.6

1.8

1.8
?
