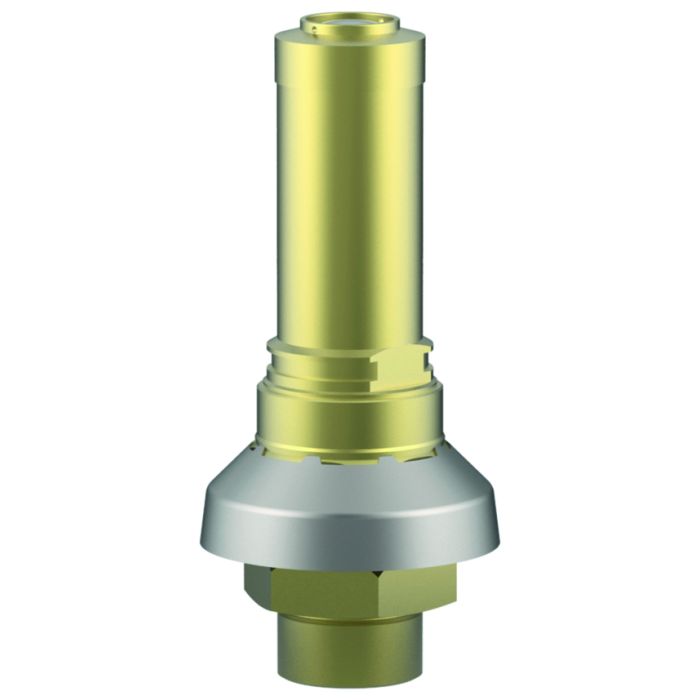

The product shown in the picture may differ from the product sold.

Type 06C01

Datasheet ID: IN_06C01

Field of application

Applications:

Provided as safety device for protection against excessive pressure in the gas phase

in vehicle containers and pressure vessels. Approved for liquid, granular and powdery goods.

Working temperature: -40°C / -40°F (233K) up to +200°C / +392°F (473K), suitable for horizontal installation (d₀ 25 up to d₀48)

Description

Safety Valves, brass (A001),

type tested TÜV-SV.948 Liquid/ Granular/ Powder

Standard safety valve

with FPM valve seal, closed bonnet,

with diaphragm for protection of the spring, with lifting device,

discharge holes with protection cap

Inlet: male thread type G (BSPP) acc. to ISO 228/1

Part No. 06C01.A001.X - Material brass

Part No. 06C01.A002.X - Material stainless steel

Available options:

Type (Series)	06C01
Solution	Air Gases, Industry
Solution Area	Transport, Storage, Processes, Compressed Air, FKS
SKU	IN_06C01

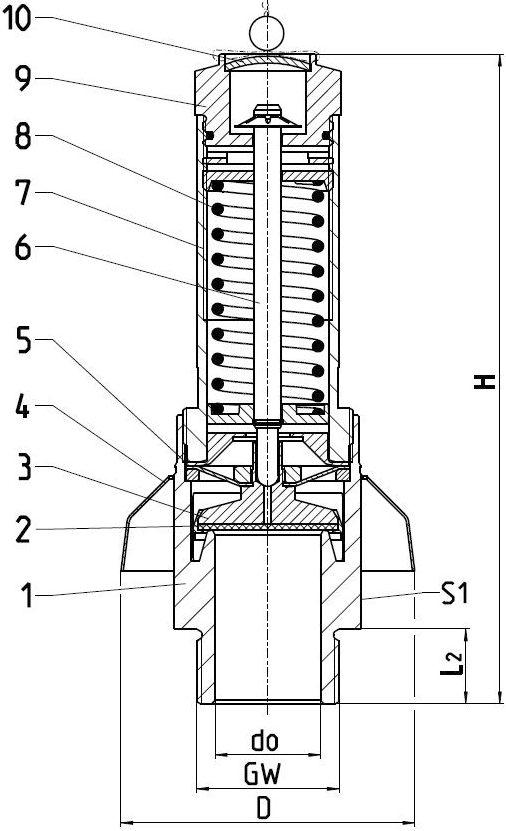

Type 06C01	Technical data
Nominal size	GW	1	1-1/4	1-1/2	2
Orifice	d₀	25	31	31	48
Set pressure range	bar	0.5-6.0	0.5-6.0	0.5-6.0	0.5-3.5
Height	H	186	191	191	232
Length	L₂	18	22	22	25
Protection cap diameter	D	86	86	86	114
Wrench size across flats	S₁	55	55	55	85
Weight	ca. kg	1.65	1.58	1.58	4.6
Coeff. of discharge from 3.0 bar	α_w	0.68	0.68	0.68	0.55
Series A001: Material brass		x	x	x	x
Series A002: Material stainless steel		x	x	x	-
