Type 06C02

Datasheet ID: IN_06C02
Field of application chevron-down

Applications:

Provided as safety device for protection against excessive pressure in stationary and

moveable gas cylinders and pressure vessels. Approved for air and similar gases.

Working temperature with FPM sealing: -20°C / -4°F (253K) up to +160°C / +320°F (433K)

Description chevron-down

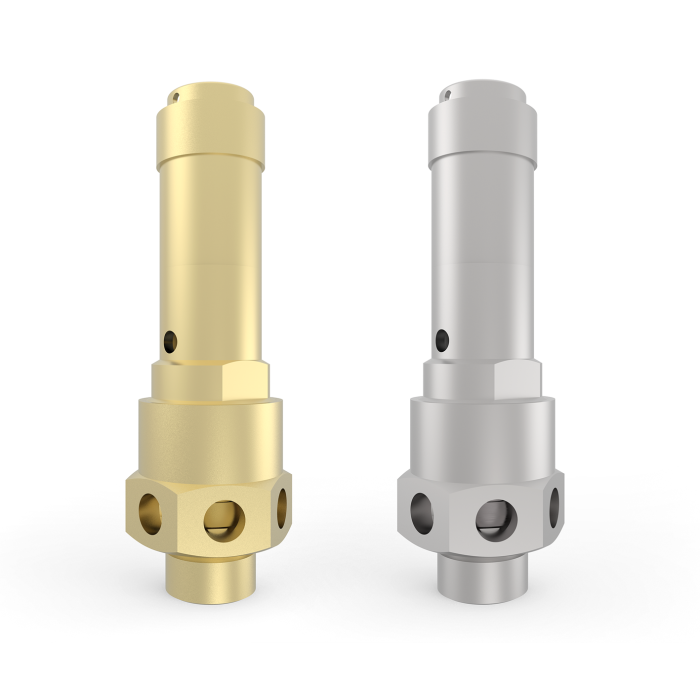

Sicherheitsventile aus Messing oder Edelstahl,

bauteilgeprüft TÜV-SV.1090 D/G

Normal-Sicherheitsventil

Abschlusskörper mit FPM-Dichtung, offene Federhaube

frei abblasend, mit Anlüftvorrichtung

Eintritt: Außengewinde Typ G nach ISO 228/1

Artikel-Nr. 06C02.A001.X - Messing

Artikel-Nr. 06C02.A002.X - Edelstahl

Sonderausführungen auf Anfrage:

· Eintritt NPT Außengewinde

· EPDM Kegeldichtung (-40°C bis +150°C)

Certificates chevron-down
Pressure Equipment Directive (2014/68/EU) chevron-down
TÜV Verband (Approval mark number) chevron-down
Ukraine (Ukraine) chevron-down
Data sheets chevron-down
Operating Instructions chevron-down
Declarations of Conformity chevron-down
Pressure Equipment Directive (2014/68/EU) chevron-down
More Information
Type (Series) 06C02
Solution Air Gases, Industry
Solution Area Storage, Processes, Compressed Air, Steam
SKU IN_06C02

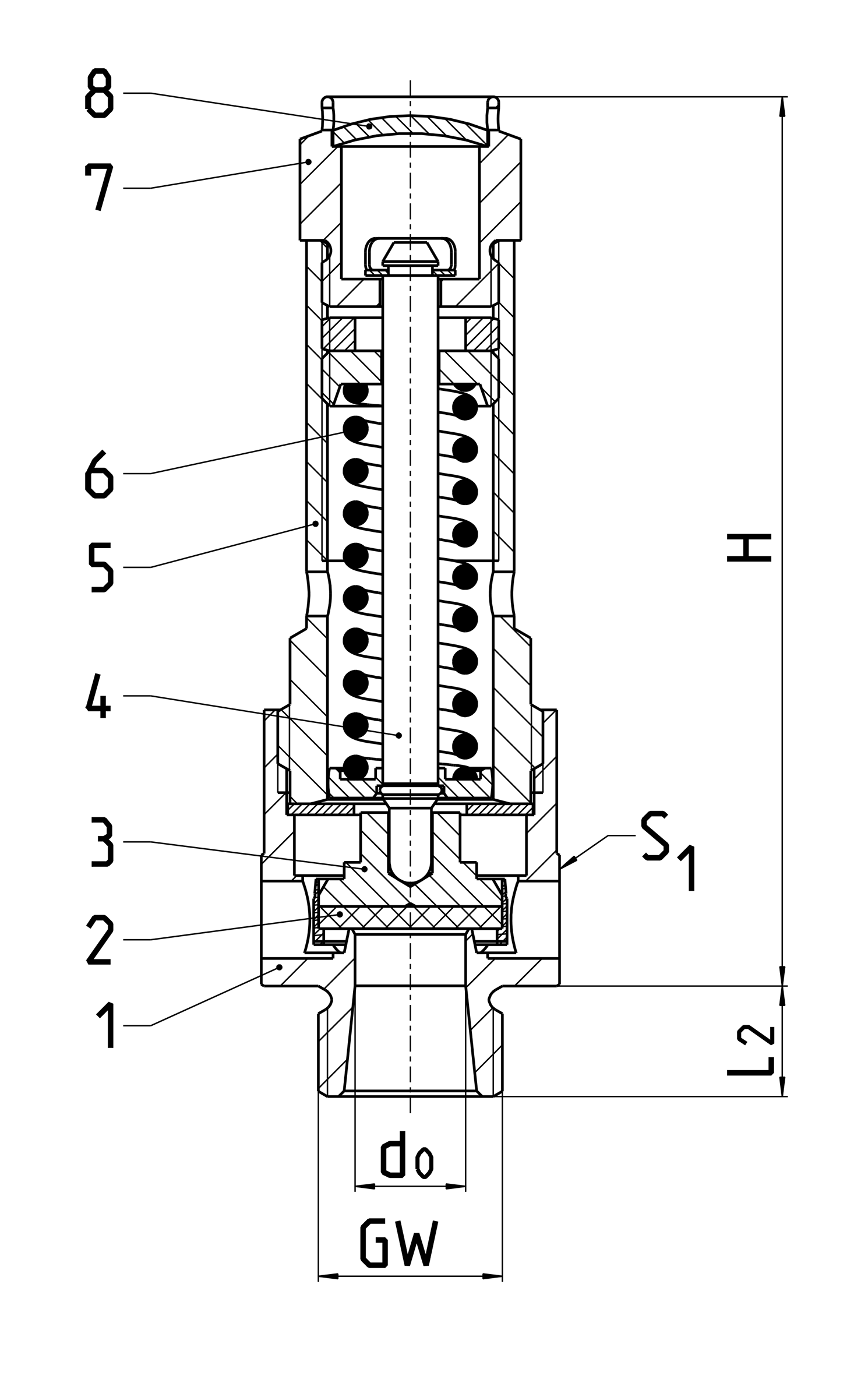

Materials

Materials

DIN EN

ASME/ASTM

1

Body

CW614N

B 249 UNS C38500

2

Valve seal

FPM (Viton)

3

Disc

CW614N

B 249 UNS C38500

4

Stem

1.4301

SS304

5

Bonnet

CW614N

B 249 UNS C38500

6

Spring

1.4571/1.1200

SS316L/A 227

7

Lifting device

CW614N

B 249 UNS C38500

8

Closing cap

CW507L

B 36 UNS C26800
Versions

Type 06C02

Technical data

Nominal size

GW

1/4

3/8

1/2

3/8

1/2

3/4

3/4

1

Orifice

d0

8

8

8

10

10

10

15

18

Set pressure range

bar

0.2-50

0.2-50

0.2-50

0.2-42

0.2-42

0.2-42

0.2-16

0.2-20

Height

H

78

78

78

81

81

81

92

110

Length

L2

10

10

12

10

12

15

15

18

Wrench size across flats

S1

21

21

27

27

27

32

32

41

Weight

ca. kg

0.14

0.15

0.18

0.18

0.20

0.25

0.31

0.53

Coeff. of discharge from 3.0 bar*

αw

0.70

0.70

0.70

0.61

0.61

0.61

0.60

0.60
