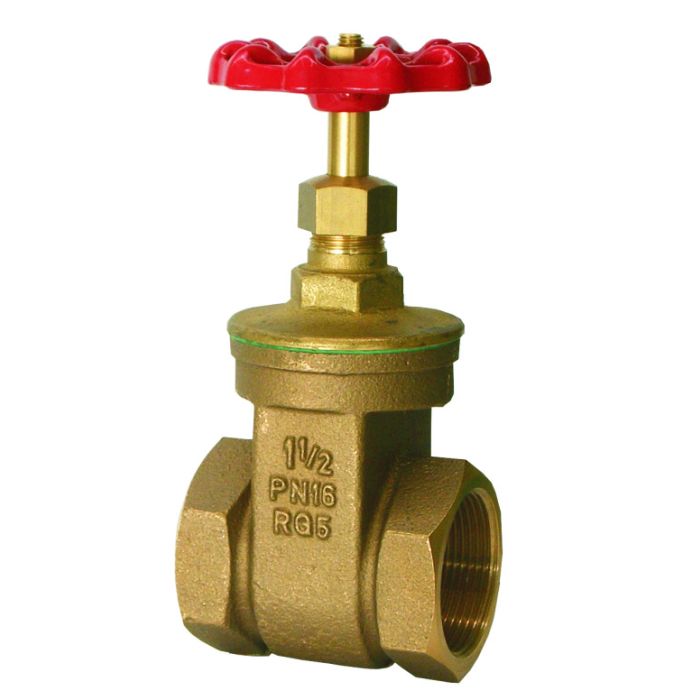

Type 09010

Datasheet ID: IN_09010
Field of application

Applications:

Suitable for non-toxic, non-inflammable fluids, gases and vapours.

The laws, regulations and standards are to observe for the range of application.

Working temperatures and pressures:

up to max. 16.0 bar: -10°C / +14°F (263K) up to +120°C / +248°F (393K)

up to max. 12.0 bar: -10°C / +14°F (263K) up to +200°C / +392°F (473K)

Data sheets
More Information
Solution Air Gases
Solution Area Transport, Storage, Processes
SKU IN_09010
Materials

Materials

DIN EN

ASTM

1

Body

CC491K

B 62 UNS C83600

2

Wedge

CC491K

B 62 UNS C83600

3

Stem

CW614N

B 283 UNS C38500

4

Headpiece

CW614N

B 283 UNS C38500

5

Handwheel

Aluminium - diecasting

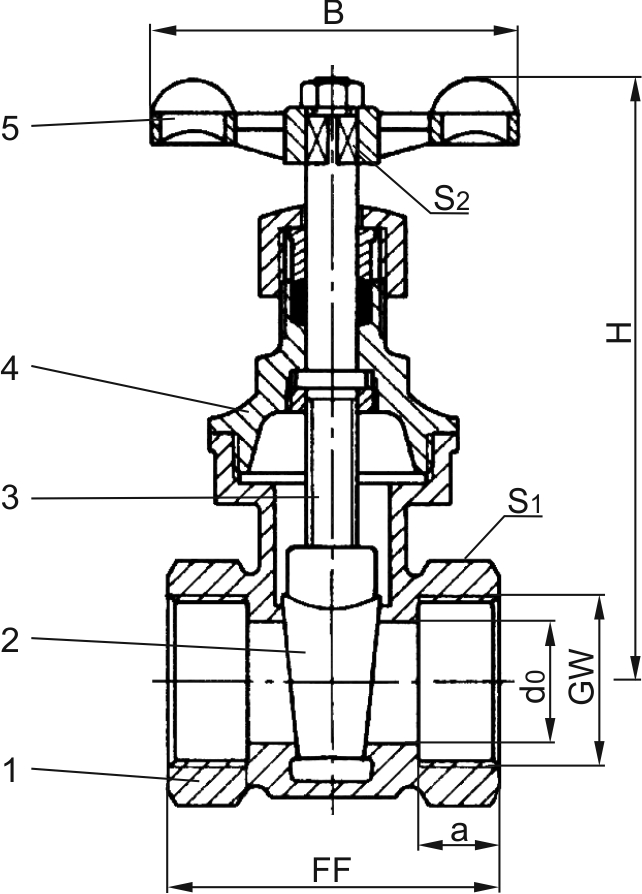

Versions

Type 09010

Technical data

Nominal size

GW

1/2

3/4

1

1-1/4

1-1/2

2

Dimension code

.X.

0400

0600

1000

1200

1400

2000

Face-to-face dimension

FF

55

60

68

76

80

93

Height

H

85

105

115

130

150

180

Socket depth

a

15.0

16.3

19.1

21.4

21.4

25.7

Flow diameter

d0

12.0

17.5

23.2

29.0

36.0

47.0

Handwheel-Ø

B

60

70

70

80

90

110

Wrench size across flats

S1

27

32

41

50

58

70

Wrench size across flats

S2

6

7

8

9

9

11

Weight

ca. kg

0.36

0.54

0.82

1.10

1.60

2.40
?
