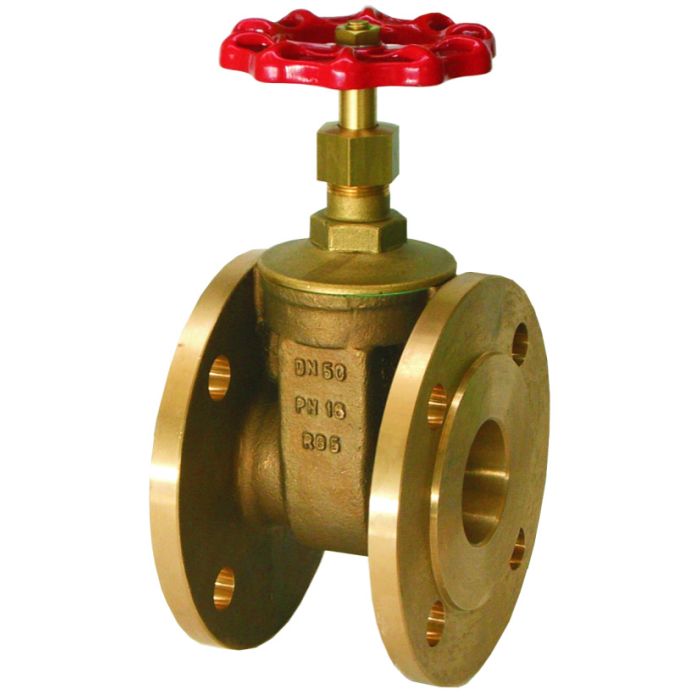

Type 09061

Datasheet ID: IN_09061
Field of application

Applications:

Suitable for non-toxic, non-inflammable fluids, gases and vapours.

The laws, regulations and standards are to observe for the range of application.

Working temperatures and pressures:

up to max. 16.0 bar: -10°C / +14°F (263K) up to +120°C / +248°F (393K)

up to max. 10.0 bar: -10°C / +14°F (263K) up to +150°C / +302°F (423K)

up to max. 6.0 bar: -10°C / +14°F (263K) up to +200°C / +392°F (473K)

Data sheets
More Information
Solution Air Gases
Solution Area Transport, Storage, Processes
SKU IN_09061
Materials

Materials

DIN EN

ASTM

1

Body

CC491K

B 62 UNS C83600

2

Wedge

CC491K

B 62 UNS C83600

3

Stem

CW614N

B 283 UNS C38500

4

Headpiece

CW614N

B 283 UNS C38500

5

Handwheel

Aluminium - diecasting

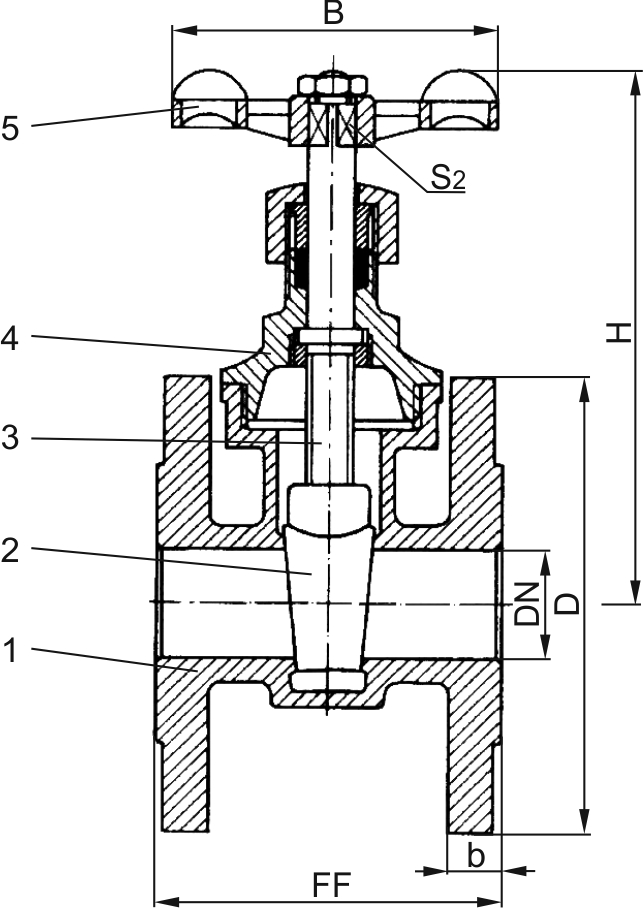

Versions

Type 09061

Technical data

Nominal size

DN

20

25

32

40

50

65

80

Dimension code

.X.

0200

0250

0320

0400

0500

0650

0800

Face-to-face dimension

FF

75

80

90

100

110

130

150

Height

H

105

115

130

150

180

220

250

Flange diameter

D

105

115

140

150

165

185

200

Width of flange

b

12

12

14

14

16

16

18

Handwheel-Ø

B

70

70

80

80

110

150

160

Wrench size across flats

S2

7

8

9

9

11

12

13

Weight

ca. kg

1.8

2.3

3.6

4.6

6.4

9.4

12.1
