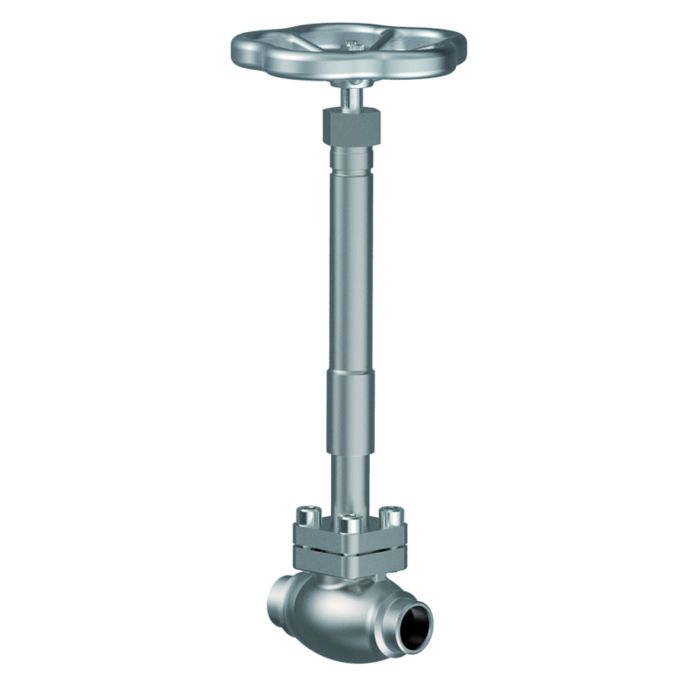

Type 01272 - Bellow Sealed Globe Valve

Datasheet ID: CR_01272

Field of application

Applications:

Approved for air gases, vapours and cryogenic liquefied gases incl. H2 and LNG.

Working temperature: -255°C / -427°F (18K) up to +120°C / +248°F (393K)

Description

Cryogenic-Bellow Sealed Globe Valve, PN50

Stainless steel body and topwork,

“¦live loaded¦” gland packing

“¦cleaned and degreased for oxygen service¦"

Part No. 01272.X.002*

* Butt weld connection for stainless steel pipes acc. to ISO 1127 or ASTM A312

Part No. 01272.X.0024

Socket weld connection for stainless steel pipes acc. to ISO 1127 or ASTM A312

Available options - on request only:

· Welded stainless steel stubs acc. to ISO 1127 or ASTM A312 - length FF + 200mm

· Extension H up to 900mm

· Valve with control disc (tapered design)

Certificates

type-examination for LNG (DIN EN 12567)

LNG-Certificate_01XXX_02XXX_03XXX_05XXX_06XXX_08XXX_09XXX_11XX

ClassNK (Class Rules)

TA22155M

DNV (Class Rules)

TAB00000KD Rev.2

BV (Class Rules)

33353/C0 BV

SMS.W.I./11744/C.0

Pressure Equipment Safety Regulation 2016 (PESR 2016)

0879-PESR-DD1-23290-4-DE

RINA (Class Rules)

MAC322723XG

Pressure Equipment Directive (2014/68/EU)

0045/202/1201/Z/00366/23/D/001(00)

CCS (Class Rules)

HB24PTB00028

HB25PTB00055

Lloyd's Register (Class Rules)

LR2508712TA-02

LR2695076QAES

ABS (Class Rules)

25-0381115-PDA

092776-7471959-006

Ukraine (Ukraine)

UA.276.127.03-26

UA.D.127.04-26

Data sheets

CR_01272_en.pdf

Operating Instructions

HEROSE-Manual-CR_01272-1

Declarations of Conformity

Pressure Equipment Safety Regulation 2016 (PESR 2016)

002TTV (EN)

Pressure Equipment Directive (2014/68/EU)

002TTV (DE, EN, CN)

002TTV (DE, EN, CZ)

002TTV (DE, EN, ES)

002TTV (DE, EN, FR)

002TTV (DE, EN, IT)

002TTV (DE, EN, NL)

002TTV (DE, EN, PL)

002TTV (DE, EN, RU)

More Information
Materials
Versions
Product Variants

More Information

Type (Series)	01272
Solution	H2, LNG, Air Gases
Solution Area	Manufacturing, Transport, Storage, Refueling, Processes
SKU	CR_01272

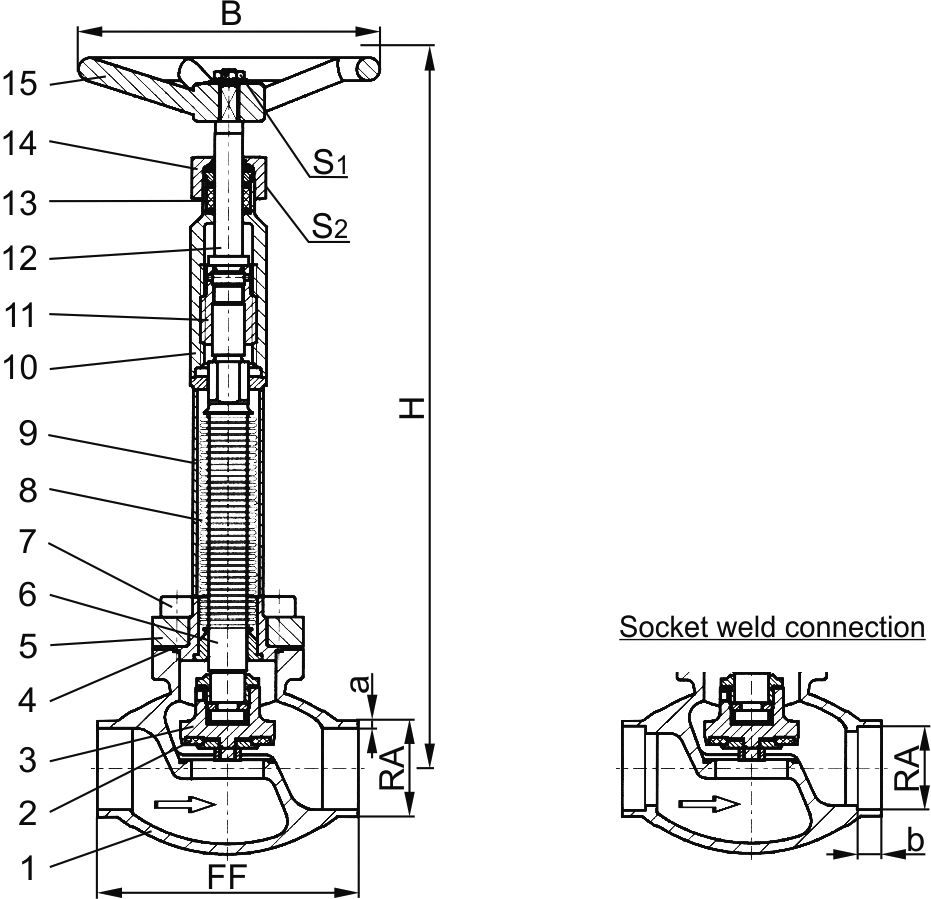

Materials

Materials		DIN EN	ASTM
1	Body	1.4409	A 351 CF3M
2	Valve seal	PCTFE (Kel-F)
3	Disc	1.4404	A 276 Grade 316L
4	Bonnet gasket	Graphite
5	Headpiece	1.4404	A 276 Grade 316L
6	Bellow stem	1.4571	A 313 Grade 316Ti
7	Bolts	1.4401/A4	A 194 B8M
8	Bellow	1.4571	A 313 Grade 316Ti
9	Elongation tube	1.4571	A 313 Grade 316Ti
10	Headpiece	1.4404	A 276 Grade 316L
11	Bush	CW452K	B 159 UNS C51900
12	Stem	1.4404	A 276 Grade 316L
13	Gland packing	Graphite / PTFE / MICA
14	Gland nut	1.4404	A 276 Grade 316L
15	Handwheel	1.4409	A 351 CF3M

Versions

Type 01272 - Standard design	Technical data
Nominal size	DN	10	15	15	20	25	32	40	40	50
Dimension code	.X.	1012	1517	1521	2026	2533	3238	4042	4048	5060
Face-to-face dimension	FF	70	85	85	100	115	115	130	130	155
Height	H	380	380	380	380	380	380	380	380	380
Outside pipe-Ø ISO 1127	RA	12.0	17.2	21.3	26.9	33.7	38.0	42.4	48.3	60.3
Wall thickness pipe ISO 1127	a	1.0	1.6	2.0	2.0	2.0	2.0	2.0	2.0	2.0
Outside pipe-Ø ASTM A312	RA	13.72	17.15	21.34	26.67	33.40	-	42.16	48.26	60.33
Wall thickness pipe ASTM A312	a	dimensions acc. to S10 or S40
Socket depth	b	6	10	10	13	13	-	13	13	16
Handwheel-Ø	B	150	150	150	150	150	150	150	150	150
Wrench size across flats	S₁	7	7	7	7	7	10	10	10	10
Wrench size across flats	S₂	30	30	30	30	30	36	36	36	36
Weight	ca. kg	1.6	1.85	1.9	2.3	2.7	3.6	5.1	5.1	7.7
Kvs-Value	m³/h	1.6	2.8	4.3	6.7	11.5	14.0	20.6	22.6	37.1
Cv-Value	gal/min	1.9	3.3	5.0	7.8	13.4	16.2	23.9	26.3	43.2
