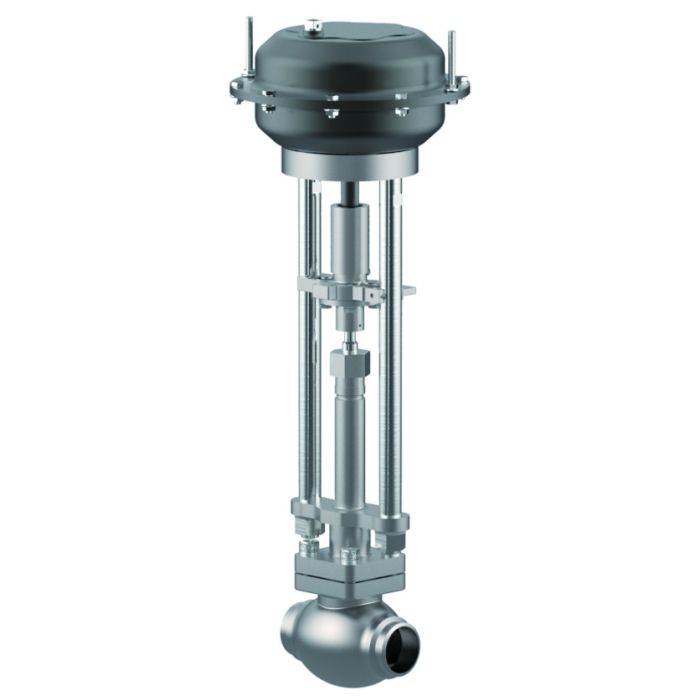

Type 01343 - Actuated Globe Valve
The product shown in the picture may differ from the product sold.
Field of application
Applications:
Approved for air gases, vapours and cryogenic liquefied gases incl. LNG.
Working temperature: -196°C / -321°F (77K) up to +120°C / +248°F (393K)
Description
Cryogenic-Globe Valves with Pneumatic Actuator, PN50 (DN150=PN40)
Stainless steel body and topwork
Actuator - air opens, spring closes or contrary
"¦live loaded¦" gland packing
"¦cleaned and degreased for oxygen service¦" - the standard actuator is not cleaned and
degreased for oxygen
Part No. 01343.X.0010
possible connections:
· Butt weld connection for stainless steel pipes acc. to ISO 1127 or ASTM A312
· Socket weld connection for stainless steel pipes acc. to ISO 1127 or ASTM A312
· Female thread connection (G) acc. to ISO 228/1 or NPT acc. to ANSI B 1.20.1
Please specify the required connection when ordering!
Available options - on request only:
· Solenoid valves · Electropneumatic positioner
· Inductive Proximity Switches · Position and Limit Switches · Air control sets
· Welded stainless steel stubs acc. to ISO 1127 or ASTM A312 - length FF + 200mm
· Actuator "¦cleaned and degreased for oxygen service¦" · Electric actuator
· Valve with check disc · valve with control disc (tapered design)
· Further pipe wall thicknesses
Certificates
Transportable Pressure Equipment Directive (2010/35/EU)
type-examination for LNG (DIN EN 12567)
Canadian Registration Number (CRN)
ClassNK (Class Rules)
License of Special Equipment (China) (TS)
DNV (Class Rules)
Pressure Equipment Directive (2014/68/EU)
Pressure Equipment Safety Regulation 2016 (PESR 2016)
BV (Class Rules)
RINA (Class Rules)
CCS (Class Rules)
ABS (Class Rules)
Ukraine (Ukraine)
Data sheets
Declarations of Conformity
Transportable Pressure Equipment Directive (2010/35/EU)
Pressure Equipment Directive (2014/68/EU)
Pressure Equipment Safety Regulation 2016 (PESR 2016)
Live Stock: Out-Of Stock pcs (ON STOCK)
| Type (Series) | 01343 |
|---|---|
| Solution | LNG, Air Gases |
| Solution Area | Transport, Storage, Refueling, Processes |
| SKU | CR_01343_2 |

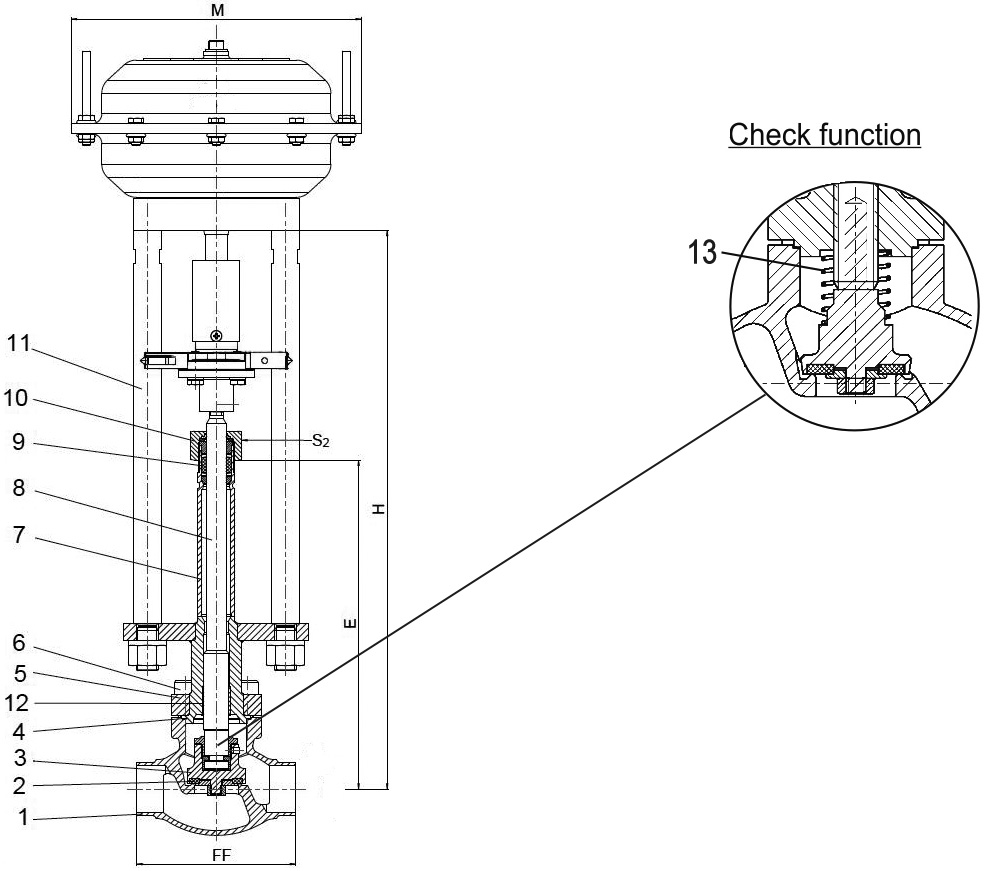

Materials |
DIN EN |
ASTM |
|
|---|---|---|---|
1 |
Body |
1.4308 |
A 351 CF8 |
2 |
Valve seal up to DN50 |
PTFE / Carbon filled (25%) |
|
2a |
Valve seal from DN65 |
PTFE |
|
3 |
Disc |
1.4301 |
A 276 Grade 304 |
4 |
Bonnet Gasket |
PTFE |
|
5 |
Headpiece |
1.4301 |
A 276 Grade 304 |
6 |
Bolts |
1.4301/A2 |
A 194 B8 |
7 |
Elongation tube |
1.4541 |
A 213 TP 321 |
8 |
Stem |
1.4301 |
A 276 Grade 304 |
9 |
Gland packing |
Graphite / PTFE / MICA |
|
10 |
Gland nut |
1.4305 |
A 276 Grade 303 |
11 |
Pillars |
1.4404 |
A 276 Grade 316L |
12 |
Bush |
CW452K |
B 159 UNS C51900 |
13 |
Spring |
CW452K |
B 159 UNS C51900 |
Type 01343 - Standard design |
Technical Data |
|||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
Nominal size |
DN |
10 |
15 |
20 |
25 |
32 |
40 |
50 |
65 |
80 |
100 |
150 |
Dimension code |
.X. |
0100 |
0150 |
0200 |
0250 |
0320 |
0400 |
0500 |
0650 |
0800 |
1000 |
1500 |
Face-to-face dimension |
FF |
70 |
85 |
100 |
115 |
115 |
130 |
155 |
205 |
245 |
280 |
400 |
Height |
H |
370 |
370 |
370 |
375 |
405 |
420 |
425 |
510 |
575 |
635 |
685 |
Length |
E |
195 |
195 |
200 |
200 |
230 |
230 |
235 |
300 |
300 |
300 |
350 |
Actuator-Ø |
M |
dependent on actuator |
||||||||||
Wrench size across flats |
S2 |
30 |
30 |
30 |
30 |
36 |
36 |
36 |
36 |
36 |
41 |
41 |
Weight w/o actuator |
ca. kg |
1.9 |
2.15 |
2.4 |
3.1 |
3.8 |
6.5 |
9.0 |
15.2 |
20.0 |
28.0 |
60.9 |
Stroke |
mm |
10 |
10 |
7 |
9 |
9 |
11 |
15 |
23 |
23 |
30 |
40 |
