Type 01343 - Actuated Globe Valve

Datasheet ID: CR_01343_3

Field of application

chevron-down

Applications:

Approved for air gases, vapours and cryogenic liquefied gases incl. LNG.

Working temperature: -196°C / -321°F (77K) up to +120°C / +248°F (393K)

Description

chevron-down

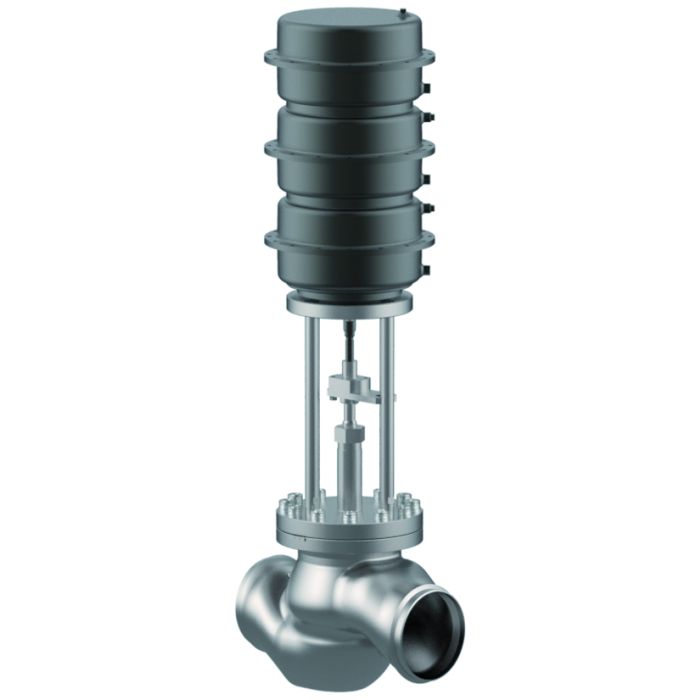

Cryogenic-Globe Valves with Pneumatic Actuator, PN25

Stainless steel body and topwork

Actuator - air opens, spring closes or contrary

"¦live loaded¦" gland packing

Part No. 01343.0219.*01*

Butt weld connection for stainless steel pipes acc. to ISO 1127 or ASTM A312

Part No. 01343.0219.*014

Socket weld connection for stainless steel pipes acc. to ISO 1127 or ASTM A312

In flow direction, the valve with the nominal size DN200 is conform to tightness class

L1 up to 12 bar maximum differential pressure acc. to DIN 12567 for LNG use.

This standard can also be used for the tightness class of other cryogenic gases.

Available accessories/options - on request only:

· Solenoid valve · Limit switch · Electropneumatic positioner etc.

· Welded stainless steel stubs acc. to ISO 1127 or ASTM A312

· Actuator "¦cleaned and degreased for oxygen service¦"

Certificates

chevron-down
Transportable Pressure Equipment Directive (2010/35/EU) chevron-down
07/201/1321/Z/0278/17/oD/0002
0045/201/1201/Z/00649/23/oD/001(00)
type-examination for LNG (DIN EN 12567) chevron-down
LNG-Certificate_01XXX_02XXX_03XXX_05XXX_06XXX_08XXX_09XXX_11XX
LNG-Certificate_DN200-01XXX_03XXX
Canadian Registration Number (CRN) chevron-down
0C22964.5 - Ontario
0C22964.5N - Nunavut
0C22964.5T - Northwest Territories
0C22964.5Y - Yukon
0C22964.50 - Newfoundland and Labrador
0C22964.51 - British Columbia
0C22964.52 - Alberta
0C22964.53 - Saskatchewan
0C22964.54 - Manitoba
0C22964.56 - Quebec
0C22964.57 - New Brunswick
0C22964.58 - Nova Scotia
0C22964.59 - Prince Edward Island
ClassNK (Class Rules) chevron-down
TA22155M
License of Special Equipment (China) (TS) chevron-down
TSX71000120220019
TSX71000520230057
TSF700D36-2029
DNV (Class Rules) chevron-down
TAP00000MM Rev. 3
Pressure Equipment Directive (2014/68/EU) chevron-down
0045-202-1334-Z-00176-23-D-001(01)
0045/202/1201/Z/00366/23/D/001(00)
0045/202/1201/Z/00366/23/D/001(00)
0045/202/1201/Z/00366/23/D/001(00)
0045/202/1201/Z/00366/23/D/001(00)
0045/202/1201/Z/00366/23/D/001(00)
Pressure Equipment Safety Regulation 2016 (PESR 2016) chevron-down
0879-PESR-B(D)-23290-3-DE
0879-PESR-DD1-23290-4-DE
BV (Class Rules) chevron-down
33354/C0 BV
SMS.W.I./11744/C.0
RINA (Class Rules) chevron-down
MAC322723XG
CCS (Class Rules) chevron-down
HB24PTB00028
HB25PTB00055
ABS (Class Rules) chevron-down
25-0381115-PDA
25-0381115-PDA
092776-7471959-006
Ukraine (Ukraine) chevron-down
UA.276.127.03-26
UA.D.127.04-26

Data sheets

chevron-down
CR_01343_3_en.pdf

Declarations of Conformity

chevron-down
Transportable Pressure Equipment Directive (2010/35/EU) chevron-down
TTV (DE, EN, ES)
TTV (DE, EN, CN)
TTV (DE, EN, CZ)
TTV (DE, EN, FR)
TTV (DE, EN, IT)
TTV (DE, EN, NL)
TTV (DE, EN, PL)
TTV (DE, EN, RU)
Pressure Equipment Directive (2014/68/EU) chevron-down
001TTV (DE, EN, CN)
001TTV (DE, EN, CZ)
001TTV (DE, EN, ES)
001TTV (DE, EN, FR)
001TTV (DE, EN, IT)
001TTV (DE, EN, NL)
001TTV (DE, EN, PL)
001TTV (DE, EN, RU)
002TTV (DE, EN, CN)
002TTV (DE, EN, CZ)
002TTV (DE, EN, ES)
002TTV (DE, EN, FR)
002TTV (DE, EN, IT)
002TTV (DE, EN, NL)
002TTV (DE, EN, PL)
002TTV (DE, EN, RU)
Pressure Equipment Safety Regulation 2016 (PESR 2016) chevron-down
002TTV (EN)
003TTV (EN)
003TTV (EN)
More Information
Type (Series) 01343
Solution LNG, Air Gases
Solution Area Transport, Storage, Refueling, Processes
SKU CR_01343_3

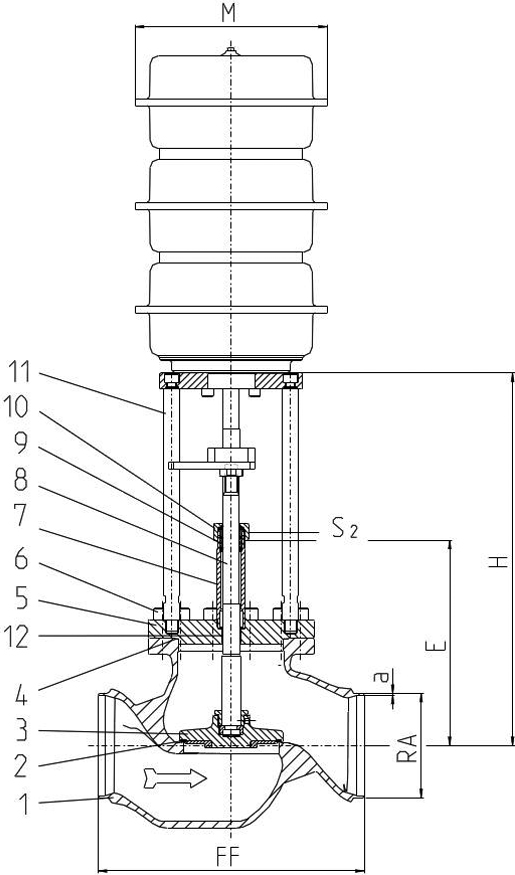

Materials

Materials

DIN EN

ASTM

1

Body

1.4308

A 351 CF8

2

Valve seal

PTFE

3

Disc

1.4301

A 276 Grade 304

4

Bonnet gasket

PTFE

5

Headpiece

1.4301

A 276 Grade 304

6

Bolts

1.4301/A2

A 194 B8

7

Elongation tube

1.4541

A 213 TP 321

8

Stem

1.4301

A 276 Grade 304

9

Gland packing

Graphite / PTFE / MICA

10

Gland nut

1.1404

A 276 Grade 316L

11

Pillars

1.4571

A 313 Grade 316TI

12

Bush

CW452K

B 159 UNS C51900
Versions

Type 01343 - Standard design

Technical data

Nominal size

DN

200

Face-to-face dimension

FF

560

Height

H

785

Length

E

410

Outside pipe-Ø ISO 1127

RA

219.1

Wall thickness pipe ISO 1127

a

6.3

Outside pipe-Ø ASTM A312

RA

219.1

Wall thickness pipe ASTM A312

a

dimensions acc. to S10 or S40

Socket depth

b

15

Actuator-Ø

M

depent on actuator

Wrench size across flats

S2

65

Weight w/o actuator

ca. kg

165.0

*Kvs-Value

m³/h

680.0

*Cv-Value

gal/min

793.0

Stroke

mm

60
?
