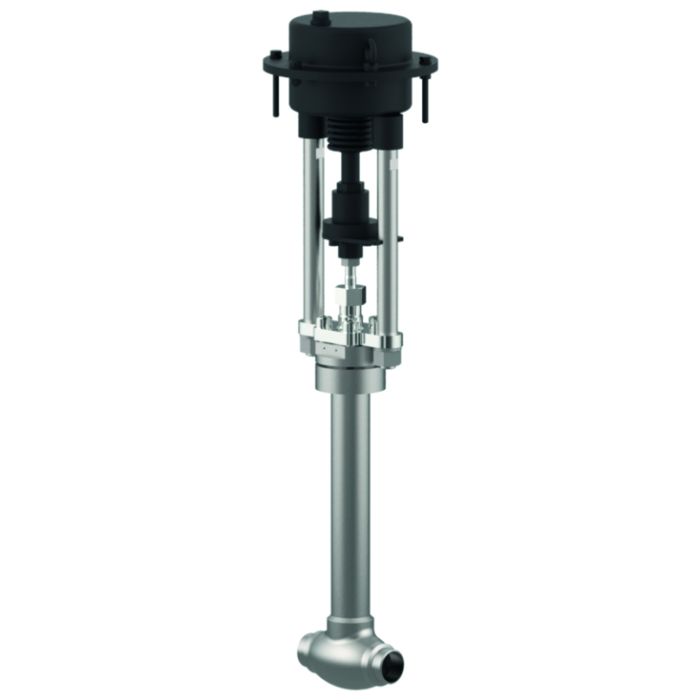

Type 01423 - Actuated Globe Valve T-Model

Datasheet ID: CR_01423_2

Field of application

chevron-down

Applications:

Approved for air gases, vapours and cryogenic liquefied gases.

Working temperature: -196°C / -321°F (77K) up to +120°C / +248°F (393K)

Description

chevron-down

Top Entry Cryogenic-Globe Valves with Pneumatic Actuator, PN50

Stainless steel body and topwork

"¦live loaded¦" gland packing

"¦cleaned and degreased for oxygen service¦" - the actuator is not cleaned and

degreased for oxygen

Part No. 01423.XC3C22 (DN15, DN25)

Part No. 01423.XC3C32 (DN40, DN50)

Available accessories/options - on request only:

· Solenoid valve · Limit switch · Electropneumatic positioner etc.

· Extension H and A acc. to customer specification

· Actuator "¦cleaned and degreased for oxygen service¦"

· Valve with check disc, valve with control disc (tapered design)

Certificates

chevron-down
ClassNK (Class Rules) chevron-down
TA22155M
DNV (Class Rules) chevron-down
TAP00000MM Rev. 3
BV (Class Rules) chevron-down
33354/C0 BV
SMS.W.I./11744/C.0
Pressure Equipment Safety Regulation 2016 (PESR 2016) chevron-down
0879-PESR-DD1-23290-4-DE
RINA (Class Rules) chevron-down
MAC322723XG
Pressure Equipment Directive (2014/68/EU) chevron-down
0045/202/1201/Z/00366/23/D/001(00)
0045/202/1201/Z/00366/23/D/001(00)
0045/202/1201/Z/00366/23/D/001(00)
0045/202/1201/Z/00366/23/D/001(00)
0045/202/1201/Z/00366/23/D/001(00)
Transportable Pressure Equipment Regulation 2009 (TPER 2009) chevron-down
0038/UK/TPER/MUM/PRJ11100534357/2
0038/UK/TPER/MUM/PRJ11100427971/2 Iss. 04
Transportable Pressure Equipment Directive (2010/35/EU) chevron-down
0343/TPED/MUM/PRJ11100534357/3
0343/TPED/MUM/PRJ11100427971/4 Iss. 02
ABS (Class Rules) chevron-down
25-0381115-PDA
25-0381115-PDA
092776-7471959-006
Ukraine (Ukraine) chevron-down
UA.276.127.03-26
UA.D.127.04-26

Data sheets

chevron-down
CR_01423_2_en.pdf

Declarations of Conformity

chevron-down
Pressure Equipment Safety Regulation 2016 (PESR 2016) chevron-down
002TTV (EN)
Pressure Equipment Directive (2014/68/EU) chevron-down
002TTV (DE, EN, CN)
002TTV (DE, EN, CZ)
002TTV (DE, EN, ES)
002TTV (DE, EN, FR)
002TTV (DE, EN, IT)
002TTV (DE, EN, NL)
002TTV (DE, EN, PL)
002TTV (DE, EN, RU)
More Information
Type (Series) 01423
Solution LNG, Air Gases
Solution Area Transport, Storage, Refueling, Processes
SKU CR_01423_2

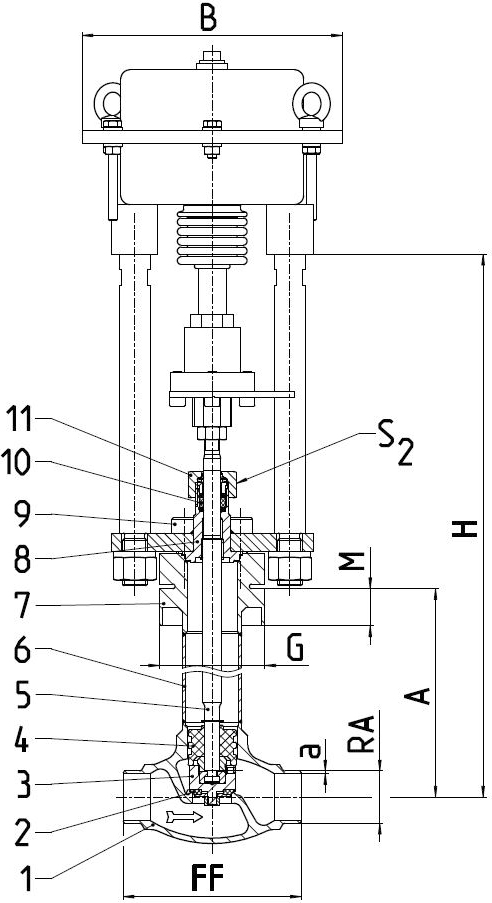

Materials

Materials

DIN EN

ASTM

1

Body

1.4308

A 351 CF8

2

Valve seal

PTFE / Carbon filled (25%)

3

Disc

1.4301

A 276 Grade 304

4

Guide bush

PTFE

5

Stem

1.4301

A 276 Grade 304

6

Tube

1.4301

A 276 Grade 304

7

Headpiece flange

1.4301

A 276 Grade 304

8

Cold box feature

1.4301

A 276 Grade 304

9

Bolts

A2-70

B8

10

Gland packing

Graphite / PTFE / Mica

11

Gland nut

1.4404

A 276 Grade 316L
Versions

Type 01423 - T-Model

Technical data

Nominal size

DN

15

25

40

50

Dimension code

.X.

1521

2533

4048

5060

Face-to-face dimension

FF

135

165

180

205

Height

H

526

506

644

649

Actuator-Ø

B

dependent on actuator

Outside pipe-Ø ASTM A312

RA

21.34

33.40

48.26

60.33

Wall thickness pipe ASTM A312

a

dimensions acc. to S10 or S40

Length

A

290

290

351

351

Length

G

68

68

109

134.5

Length

M

14

24

19

22

Wrench size across flats

S2

27

27

32

32

Weight without actuator

ca. kg

3.6

4.2

9.3

12.8

*Kvs-Value

m³/h

4.3

11.5

22.6

37.1

*Cv-Value

gal/min

5.0

13.4

26.3

43.2

Stroke

mm

10

9

11

15
?
