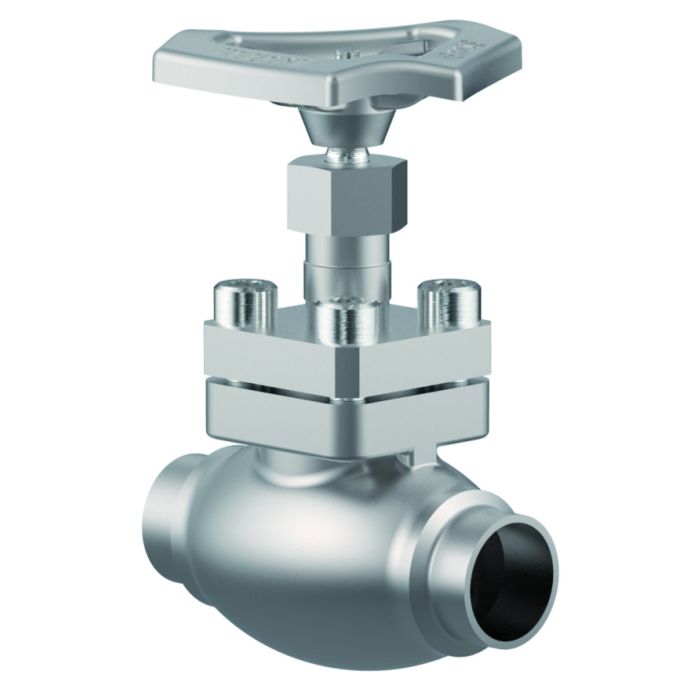

Type 01851 - Globe Valve

Datasheet ID: CR_01851

Field of application

chevron-down

Applications:

Approved for hydrogen, air gases, vapours and cryogenic liquefied gases incl. LNG.

Working temperature: -255°C / -427°F (18K) up to +120°C / +248°F (393K)

Recommended working temperature: -60°C / -76°F (213K) up to +120°C / +248°F (393K)

Description

chevron-down

Cryogenic-Globe and Globe/Check Valves, PN50

“¦Fire safe¦” type test approval acc. to EN ISO 10497

Stainless steel body and topwork,

“¦live loaded¦” gland packing

“¦cleaned and degreased for oxygen service¦"

Part No. 01851.X.000*

Part No. 01851.X.500* Globe/Check Valve

* Butt weld connection for stainless steel pipes acc. to ISO 1127 or ASTM A312

Part No. 01851.X.0004

Part No. 01851.X.5004 Globe/Check Valve

Socket weld connection for stainless steel pipes acc. to ISO 1127 or ASTM A312

Available options - on request only:

· Welded stainless steel stubs acc. to ISO 1127 or ASTM A312 - length FF + 200mm

· Valve with control disc (tapered design)

Certificates

chevron-down
Transportable Pressure Equipment Directive (2010/35/EU) chevron-down
07/201/1321/Z/0273/17/oD/0002
0045/201/1201/Z/00649/23/oD/001(00)
type-examination for LNG (DIN EN 12567) chevron-down
LNG-Certificate_01XXX_02XXX_03XXX_05XXX_06XXX_08XXX_09XXX_11XX
type-examination fire-safe (DIN EN ISO 10497) chevron-down
FS-Certificate_01XXX_03XXX
Canadian Registration Number (CRN) chevron-down
0C22964.5 - Ontario
0C22964.5N - Nunavut
0C22964.5T - Northwest Territories
0C22964.5Y - Yukon
0C22964.50 - Newfoundland and Labrador
0C22964.51 - British Columbia
0C22964.52 - Alberta
0C22964.53 - Saskatchewan
0C22964.54 - Manitoba
0C22964.56 - Quebec
0C22964.57 - New Brunswick
0C22964.58 - Nova Scotia
0C22964.59 - Prince Edward Island
ClassNK (Class Rules) chevron-down
TA22155M
License of Special Equipment (China) (TS) chevron-down
TSX71000120220016
TSX71000520230057
TS2700G39-2029
DNV (Class Rules) chevron-down
TAP00000MM Rev. 3
Pressure Equipment Directive (2014/68/EU) chevron-down
0045-202-1334-Z-00176-23-D-001(01)
0045/202/1201/Z/00366/23/D/001(00)
0045/202/1201/Z/00366/23/D/001(00)
0045/202/1201/Z/00366/23/D/001(00)
0045/202/1201/Z/00366/23/D/001(00)
0045/202/1201/Z/00366/23/D/001(00)
0045/202/1201/Z/00469/23/D/001(00)
0045/202/1201/Z/00469/23/D/001(00)
Pressure Equipment Safety Regulation 2016 (PESR 2016) chevron-down
0879-PESR-B(D)-23290-3-DE
0879-PESR-DD1-23290-4-DE
BV (Class Rules) chevron-down
33354/C0 BV
SMS.W.I./11744/C.0
RINA (Class Rules) chevron-down
MAC322723XG
CCS (Class Rules) chevron-down
HB24PTB00028
HB25PTB00055
Lloyd's Register (Class Rules) chevron-down
LR2508712TA-02
LR2695076QAES
ABS (Class Rules) chevron-down
25-0381115-PDA
25-0381115-PDA
092776-7471959-006
Ukraine (Ukraine) chevron-down
UA.276.127.03-26
UA.D.127.04-26

Data sheets

chevron-down
CR_01851_en.pdf

Operating Instructions

chevron-down
HEROSE-Manual-CR_01851-1

Declarations of Conformity

chevron-down
Transportable Pressure Equipment Directive (2010/35/EU) chevron-down
TTV (DE, EN, ES)
TTV (DE, EN, CN)
TTV (DE, EN, CZ)
TTV (DE, EN, FR)
TTV (DE, EN, IT)
TTV (DE, EN, NL)
TTV (DE, EN, PL)
TTV (DE, EN, RU)
Pressure Equipment Directive (2014/68/EU) chevron-down
001TTV (DE, EN, CN)
001TTV (DE, EN, CZ)
001TTV (DE, EN, ES)
001TTV (DE, EN, FR)
001TTV (DE, EN, IT)
001TTV (DE, EN, NL)
001TTV (DE, EN, PL)
001TTV (DE, EN, RU)
002TTV (DE, EN, CN)
002TTV (DE, EN, CZ)
002TTV (DE, EN, ES)
002TTV (DE, EN, FR)
002TTV (DE, EN, IT)
002TTV (DE, EN, NL)
002TTV (DE, EN, PL)
002TTV (DE, EN, RU)
Pressure Equipment Safety Regulation 2016 (PESR 2016) chevron-down
002TTV (EN)
003TTV (EN)
More Information
Type (Series) 01851
Solution H2, LNG, Air Gases
Solution Area Manufacturing, Transport, Storage, Refueling, Processes
SKU CR_01851
Materials

Materials

DIN EN

ASTM

1

Body

1.4409

A 351 CF3M

2

Valve seal

PTFE / Carbon filled (25%)

3

Disc

1.4404

A 276 Grade 316L

4

Bonnet gasket

Graphite

5

Headpiece

1.4404

A 276 Grade 316L

6

Bolts

1.4571/A4

similar A 194 B8T

8

Stem

1.4404

A 276 Grade 316L

9

Gland packing

Graphite / PTFE / MICA

10

Gland nut

1.4404

A 276 Grade 316L

11

Handwheel

1.4409

A 351 CF3M

12

Spring

1.4571

A 313 Grade 316Ti

13

Bush

CW452K

B 159 UNS C51900
Versions

Type 01851 - Standard design

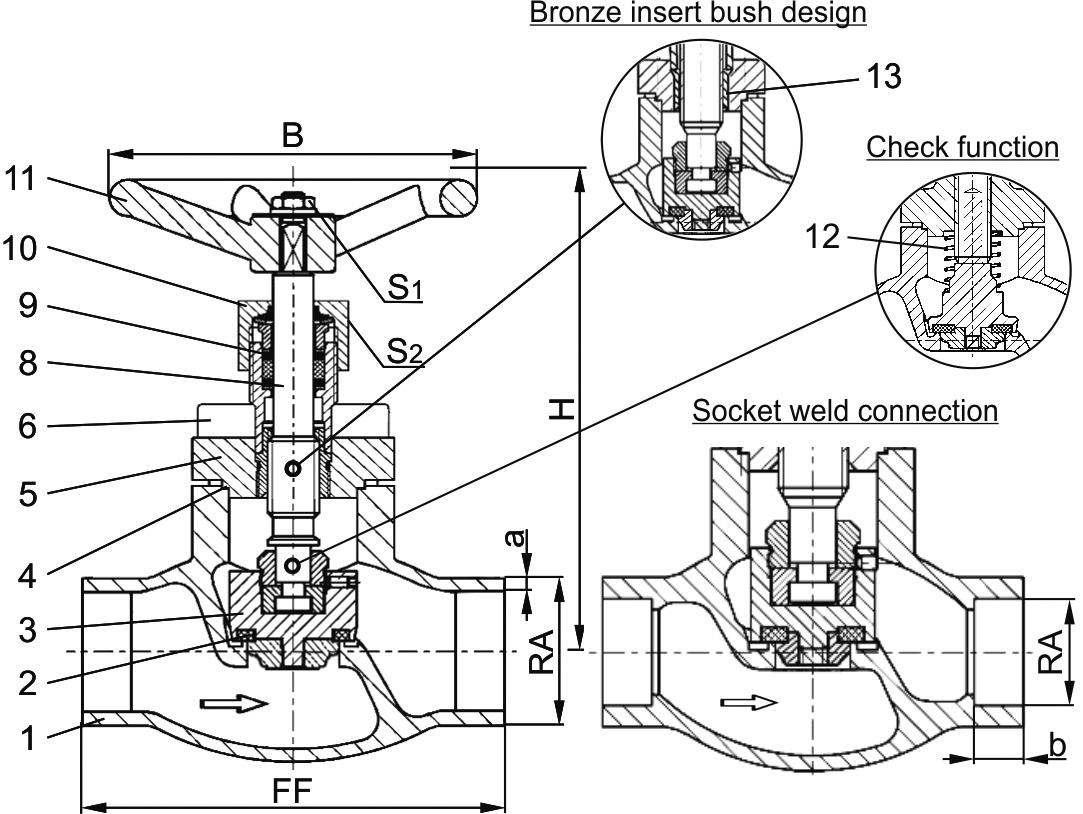

Technical data

Nominal size

DN

10

15

15

20

25

32

40

40

50

65

80

100

Dimension code

.X.

1012

1517

1521

2026

2533

3238

4042

4048

5060

657x

8088

0114

Face-to-face dimension

FF

70

85

85

100

115

115

130

130

155

205

245

280

Height

H

140

140

140

140

140

170

175

175

200

260

310

350

Outside pipe-Ø ISO 1127

RA

12.0

17.2

21.3

26.9

33.7

38.0

42.4

48.3

60.3

76.1

88.9

114.3

Wall thickness pipe ISO 1127

a

1.0

1.6

2.0

2.0

2.0

2.0

2.0

2.0

2.0

2.9

3.2

6.0

Outside pipe-Ø ASTM A312

RA

13.72

17.15

21.34

26.67

33.40

-

42.16

48.26

60.33

73.03

88.90

114.3

Wall thickness pipe ASTM A312

a

dimensions acc. to S10 or S40

Socket depth

b

6

10

10

13

13

-

13

13

16

16

16

20

Handwheel-Ø

B

100

100

100

100

100

125

125

125

125

200

250

315

Wrench size across flats

S1

7

7

7

7

7

10

10

10

10

10

10

12

Wrench size across flats

S2

30

30

30

30

30

36

36

36

36

36

36

41

Weight

ca. kg

1.0

1.25

1.3

1.7

2.0

2.8

4.2

4.2

6.7

10.7

16.0

23.0

Kvs-Value

m³/h

1.6

3.8

4.3

6.7

11.5

14.0

20.6

22.6

37.1

71.1

104.0

170.0

Cv-Value

gal/min

1.9

4.4

5.0

7.8

13.4

16.2

23.9

26.3

43.2

82.9

121.3

198.3
