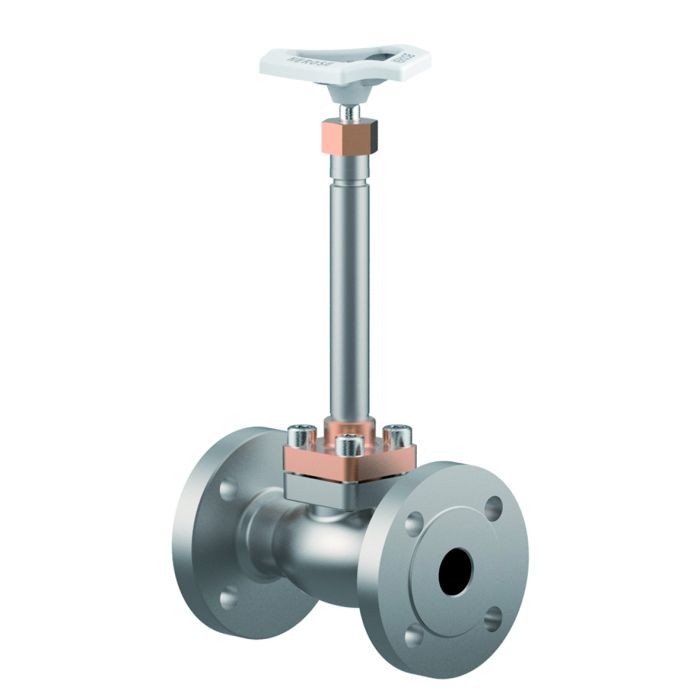

Type 03321 - Globe Valve, DIN EN Flanges

Datasheet ID: CR_03321_1

Field of application

chevron-down

Applications:

Approved for air gases, vapours and cryogenic liquefied gases incl. LNG.

Working temperature: -196°C / -321°F (77K) up to +120°C / +248°F (393K)

Description

chevron-down

Cryogenic-Globe and Globe/Check Valves, PN16

Stainless steel body and bronze topwork,

"¦live loaded¦" gland packing

"¦cleaned and degreased for oxygen service¦"

Part No. 03321.X.0014 (H = 270mm)

Part No. 03321.X.0024 (H = 370mm)

Part No. 03321.X.5014 (H = 270mm) Globe/Check Valve

Part No. 03321.X.5024 (H = 370mm) Globe/Check Valve

Flanged connection acc. to DIN EN 1092-1 PN16

Available options - on request only:

· Extension H up to 900mm

· Valve with control disc (tapered design)

Certificates

chevron-down
type-examination for LNG (DIN EN 12567) chevron-down
LNG-Certificate_01XXX_02XXX_03XXX_05XXX_06XXX_08XXX_09XXX_11XX
License of Special Equipment (China) (TS) chevron-down
TSX71000120220016
TSX71000520230057
TS2700G39-2029
Pressure Equipment Directive (2014/68/EU) chevron-down
0045-202-1334-Z-00176-23-D-001(01)
0045/202/1201/Z/00366/23/D/001(00)
0045/202/1201/Z/00366/23/D/001(00)
0045/202/1201/Z/00366/23/D/001(00)
0045/202/1201/Z/00366/23/D/001(00)
0045/202/1201/Z/00366/23/D/001(00)
0045/202/1201/Z/00469/23/D/001(00)
0045/202/1201/Z/00469/23/D/001(00)
Pressure Equipment Safety Regulation 2016 (PESR 2016) chevron-down
0879-PESR-B(D)-23290-3-DE
0879-PESR-DD1-23290-4-DE
Transportable Pressure Equipment Directive (2010/35/EU) chevron-down
0343/TPED/MUM/PRJ11100541146/3 Iss. 01
0343/TPED/MUM/PRJ11100427971/4 Iss. 02
Transportable Pressure Equipment Regulation 2009 (TPER 2009) chevron-down
0038/UK/TPER/MUM/PRJ11100541146/2
0038/UK/TPER/MUM/PRJ11100427971/2 Iss. 04
Ukraine (Ukraine) chevron-down
UA.276.127.03-26
UA.D.127.04-26

Data sheets

chevron-down
CR_03321_1_en.pdf

Declarations of Conformity

chevron-down
Transportable Pressure Equipment Directive (2010/35/EU) chevron-down
TTV (DE, EN, ES)
TTV (DE, EN, CN)
TTV (DE, EN, CZ)
TTV (DE, EN, FR)
TTV (DE, EN, IT)
TTV (DE, EN, NL)
TTV (DE, EN, PL)
TTV (DE, EN, RU)
Pressure Equipment Directive (2014/68/EU) chevron-down
001TTV (DE, EN, CN)
001TTV (DE, EN, CZ)
001TTV (DE, EN, ES)
001TTV (DE, EN, FR)
001TTV (DE, EN, IT)
001TTV (DE, EN, NL)
001TTV (DE, EN, PL)
001TTV (DE, EN, RU)
002TTV (DE, EN, CN)
002TTV (DE, EN, CZ)
002TTV (DE, EN, ES)
002TTV (DE, EN, FR)
002TTV (DE, EN, IT)
002TTV (DE, EN, NL)
002TTV (DE, EN, PL)
002TTV (DE, EN, RU)
Pressure Equipment Safety Regulation 2016 (PESR 2016) chevron-down
002TTV (EN)
003TTV (EN)
More Information
Type (Series) 03321
Solution LNG, Air Gases
Solution Area Transport, Storage, Refueling, Processes
SKU CR_03321_1

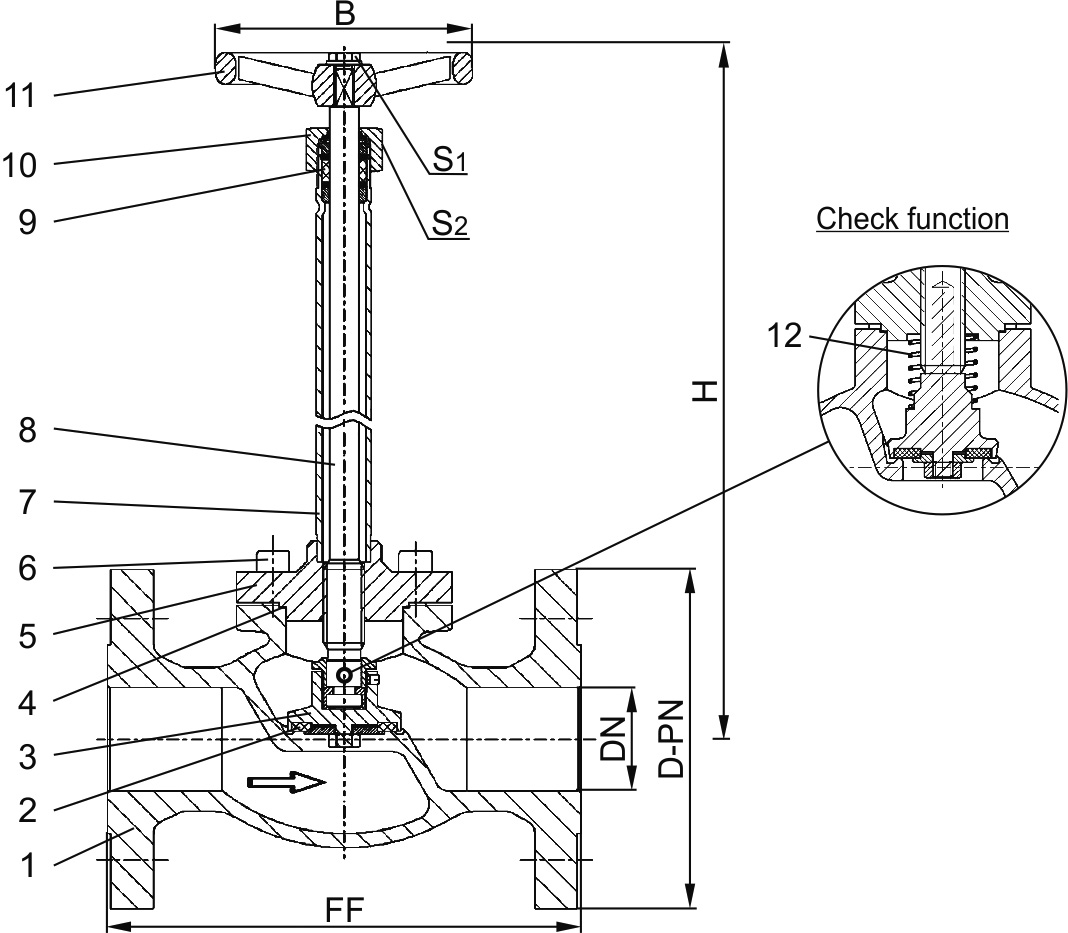

Materials

Materials

DIN EN

ASTM

1

Body

1.4308

A 351 CF8

2

Valve seal up to DN50

PTFE / Carbon filled (25%)

2a

Valve seal from DN65

PTFE

3

Disc

CW614N

B 283 UNS C38500

4

Bonnet gasket

PTFE

5

Headpiece

CC493K

B 505 UNS C93200

6

Bolts

1.4301/A2

A 194 B8

7

Elongation tube

1.4541

A 213 TP 321

8

Stem

1.4301

A 276 Grade 304

9

Gland packing

Graphite / PTFE

10

Gland nut

CW614N

B 283 UNS C38500

11

Handwheel

Aluminium alloy

12

Spring

CW452K

B 159 UNS C51900
Versions

Type 03321 - Standard design

Technical data

Nominal size

DN

15

20

25

40

50

65

80

100

150

Dimension code - Flange EN 1092-1 PN16

.X.

0150

0200

0250

0400

0500

0650

0800

1000

1500

Flange-Ø

D-PN

95

105

115

150

165

185

200

220

285

Face-to-face dimension

FF

140

150

160

200

230

295

310

350

510

Height

H

270 mm or 370 mm

370

420

Handwheel-Ø

B

100

100

100

125

125

200

250

315

360

Wrench size across flats

S1

7

7

7

10

10

10

10

12

15

Wrench size across flats

S2

30

30

30

36

36

36

36

41

41

Weight

ca. kg

3.0

3.5

5.0

9.0

13.0

21.0

28.0

42.0

83.0

Kvs-Value

m³/h

4.3

6.7

11.5

22.6

37.1

71.1

104.0

170.0

350.0

Cv-Value

gal/min

5.0

7.8

13.4

26.3

43.2

82.9

121.3

198.3

408.4
?
