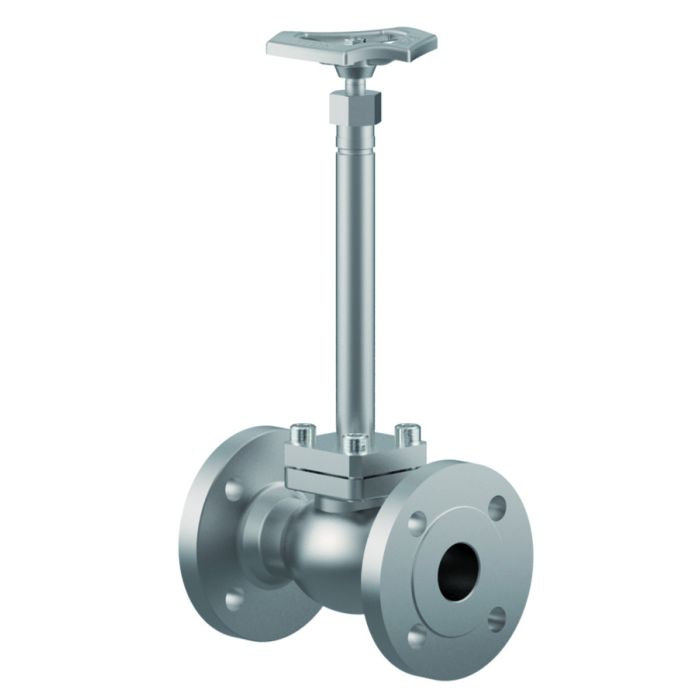

The product shown in the picture may differ from the product sold.

Type 03841 - Globe Valve, ASME B16.5 Flanges

Datasheet ID: CR_03841_3

Field of application

Applications:

Approved for air gases, vapours and cryogenic liquefied gases incl. LNG.

Working temperature: -255°C / -427°F (18K) up to +120°C / +248°F (393K)

Description

Cryogenic-Globe and Globe/Check Valves, class 150

“¦Fire safe¦” type test approval acc. to EN ISO 10497

Stainless steel body and topwork,

“¦live loaded¦” gland packing

“¦cleaned and degreased for oxygen service¦"

Part No. 03841.X.0011 (H = 270mm)

Part No. 03841.X.0021 (H = 370mm)

Part No. 03841.X.5011 (H = 270mm) Globe/Check Valve

Part No. 03841.X.5021 (H = 370mm) Globe/Check Valve

Flanged connection acc. to ASME B16.5 class 150

Certificates

type-examination for LNG (DIN EN 12567)

LNG-Certificate_01XXX_02XXX_03XXX_05XXX_06XXX_08XXX_09XXX_11XX

LNG-Certificate_DN200-01XXX_03XXX

type-examination fire-safe (DIN EN ISO 10497)

FS-Certificate_01XXX_03XXX

ClassNK (Class Rules)

TA22155M

DNV (Class Rules)

TAP00000MM Rev. 3

Pressure Equipment Directive (2014/68/EU)

0045-202-1334-Z-00176-23-D-001(01)

0045/202/1201/Z/00366/23/D/001(00)

0045/202/1201/Z/00469/23/D/001(00)

Pressure Equipment Safety Regulation 2016 (PESR 2016)

0879-PESR-B(D)-23290-3-DE

0879-PESR-DD1-23290-4-DE

BV (Class Rules)

33354/C0 BV

SMS.W.I./11744/C.0

RINA (Class Rules)

MAC322723XG

CCS (Class Rules)

HB24PTB00028

HB25PTB00055

Lloyd's Register (Class Rules)

LR2508712TA-02

LR2695076QAES

ABS (Class Rules)

25-0381115-PDA

092776-7471959-006

Ukraine (Ukraine)

UA.276.127.03-26

UA.D.127.04-26

Data sheets

CR_03841_3_en.pdf

Operating Instructions

HEROSE-Manual-CR_03841_3-1

Declarations of Conformity

Pressure Equipment Directive (2014/68/EU)

001TTV (DE, EN, CN)

001TTV (DE, EN, CZ)

001TTV (DE, EN, ES)

001TTV (DE, EN, FR)

001TTV (DE, EN, IT)

001TTV (DE, EN, NL)

001TTV (DE, EN, PL)

001TTV (DE, EN, RU)

002TTV (DE, EN, CN)

002TTV (DE, EN, CZ)

002TTV (DE, EN, ES)

002TTV (DE, EN, FR)

002TTV (DE, EN, IT)

002TTV (DE, EN, NL)

002TTV (DE, EN, PL)

002TTV (DE, EN, RU)

Pressure Equipment Safety Regulation 2016 (PESR 2016)

002TTV (EN)

003TTV (EN)

More Information
Materials
Versions
Product Variants

More Information

Type (Series)	03841
Solution	LNG, Air Gases
Solution Area	Transport, Storage, Refueling, Processes
SKU	CR_03841_3

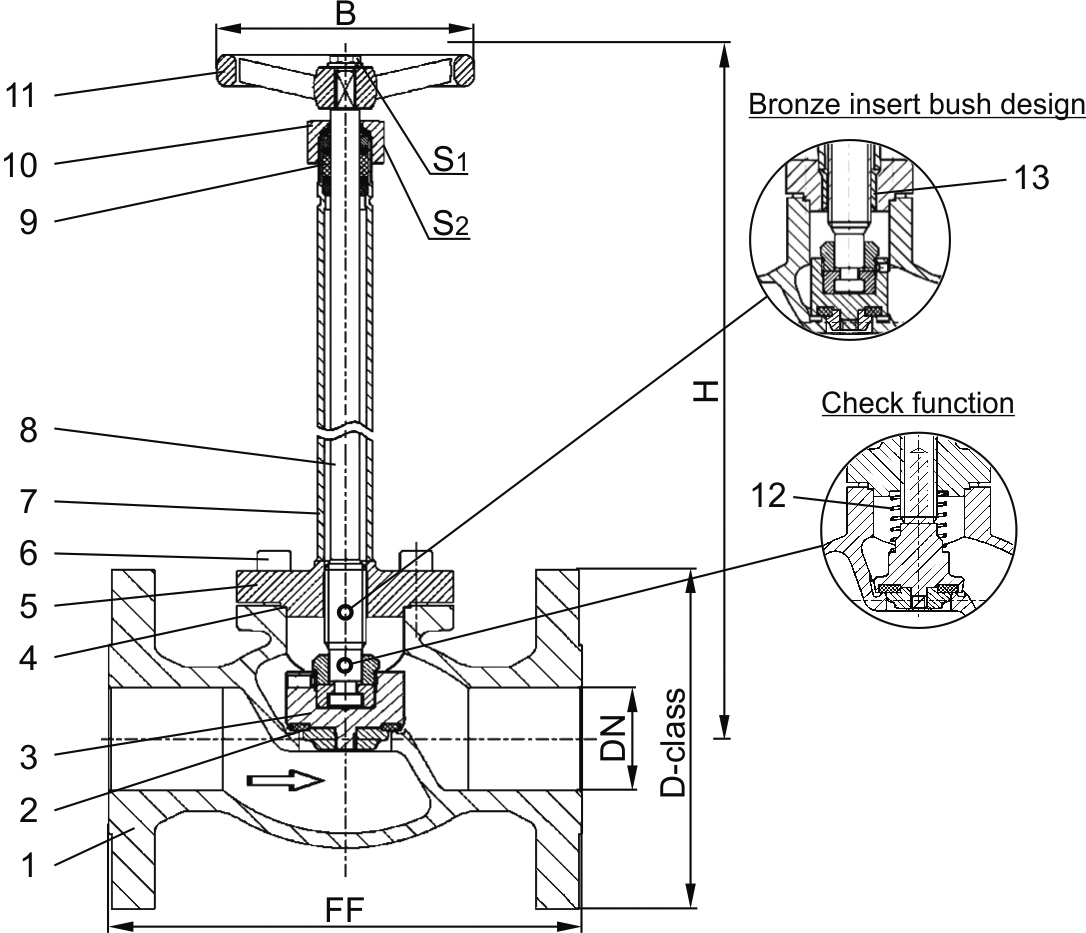

Materials

Materials		DIN EN	ASTM
1	Body	1.4409	A 351 CF3M
2	Valve seal	PTFE / Carbon filled (25%)
3	Disc	1.4404	A 276 Grade 316L
4	Bonnet gasket	Graphite
5	Headpiece	1.4404	A 276 Grade 316L
6	Bolts	1.4571/A4	similar A 194 B8T
7	Elongation tube	1.4571	A 213 TP 316Ti
8	Stem	1.4404	A 276 Grade 316L
9	Gland packing	Graphite / PTFE / MICA
10	Gland nut	1.4404	A 276 Grade 316L
11	Handwheel	1.4409	A 351 CF3M
12	Spring	1.4571	A 313 Grade 316Ti
13	Bush	CW452K	B 159 UNS C51900

Versions

Type 03841 - Standard design	Technical data
Nominal size	DN	15	20	25	40	50	65	80	100	150
Dimension code - Flange ASME B16.5 class 150	.X.	0400	0600	1000	1400	2000	2400	3000	4000	6000
Flange-Ø	D-class	90	100	110	125	150	180	190	230	280
Face-to-face dimension	FF	140	150	160	200	230	290	310	350	577
Height	H	270 mm or 370 mm							400	420
Handwheel-Ø	B	100	100	100	125	125	200	250	315	360
Wrench size across flats	S₁	7	7	7	10	10	10	10	12	15
Wrench size across flats	S₂	30	30	30	36	36	36	36	41	41
Weight	ca. kg	3.0	3.5	5.0	9.0	13.0	21.0	28.0	42.0	83.0
Kvs-Value	m³/h	4.3	6.7	11.5	22.6	37.1	71.1	104.0	170.0	350.0
Cv-Value	gal/min	5.0	7.8	13.4	26.3	43.2	82.9	121.3	198.3	408.4
