Type 06001

Datasheet ID: CR_06001_2

Field of application

chevron-down

Applications:

Provided as overflow valve for protection against excessive pressure in pipe systems and pressure

vessels, which are not subject to approval.

Working temperature: -196°C / -321°F (77K) up to +65°C / +149°F (338K)

Description

chevron-down

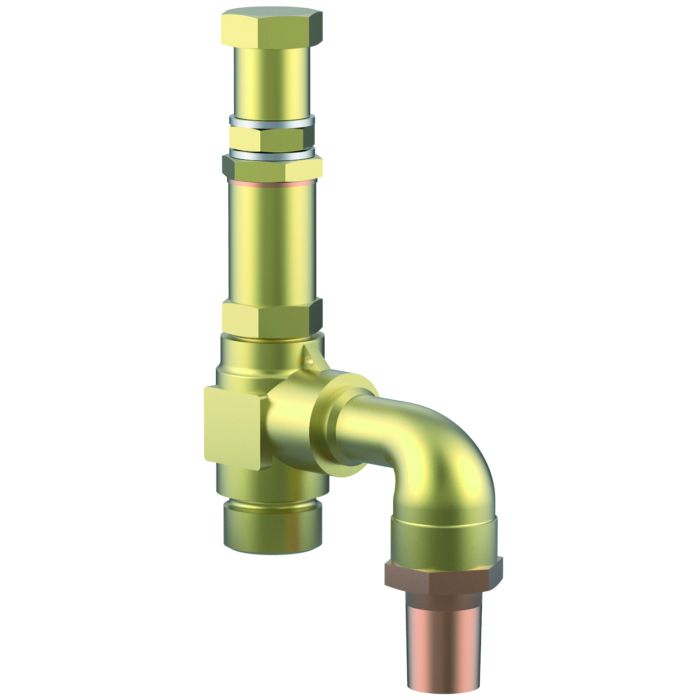

Cryogenic Overflow Valves, angle type, bronze with elbow and silencer for noise reduction,

PN40, not type tested

with adjusting device,

with carbon filled PTFE valve seal

Inlet: male thread type G (BSPP) acc. to ISO 228/1

"cleaned and degreased for oxygen service"

Part No. 06001.0400.9001 (11.0 up to 16.0 bar)

Part No. 06001.0400.9002 (16.0 up to 21.0 bar)

Part No. 06001.0400.9003 (22.0 up to 28.0 bar)

Part No. 06001.0400.9004 (28.0 up to 36.0 bar)

Available options - on request only:

· other spring ranges acc. to customer specification

Certificates

chevron-down
Transportable Pressure Equipment Directive (2010/35/EU) chevron-down
0045/201/1321/Z/00065/18/oD/002(02)
Pressure Equipment Directive (2014/68/EU) chevron-down
0045/202/1201/Z/00616/20/D/001(01)
TÜV Verband (Approval mark number) chevron-down
24-1048
24-1048
Transportable Pressure Equipment Regulation 2009 (TPER 2009) chevron-down
0038/UK/TPER/MUM/PRJ1110512846/4
0038/UK/TPER/MUM/PRJ11100427971/2 Iss. 04
License of Special Equipment (China) (TS) chevron-down
TSF700D36-2029
Gas Cylinder Rules 2016 (India) (GCR 2016) chevron-down
G.3(40)287/I
Ukraine (Ukraine) chevron-down
UA.TR.107.135.03-26
UA.TR.107.127.07-26
UA.D.135.01-26

Data sheets

chevron-down
CR_06001_2_en.pdf

Operating Instructions

chevron-down
HEROSE-Manual-CR_06001_2-1

Declarations of Conformity

chevron-down
Transportable Pressure Equipment Directive (2010/35/EU) chevron-down
TTSV (DE, EN, CN)
TTSV (DE, EN, CZ)
TTSV (DE, EN, ES)
TTSV (DE, EN, FR)
TTSV (DE, EN, IT)
TTSV (DE, EN, NL)
TTSV (DE, EN, PL)
TTSV (DE, EN, RU)
Transportable Pressure Equipment Regulation 2009 (TPER 2009) chevron-down
TTSV (DE, EN)
Pressure Equipment Safety Regulation 2016 (PESR 2016) chevron-down
001 SV (EN)
Pressure Equipment Directive (2014/68/EU) chevron-down
001SV (DE, EN, CN)
001SV (DE, EN, CZ)
001SV (DE, EN, ES)
001SV (DE, EN, FR)
001SV (DE, EN, IT)
001SV (DE, EN, NL)
001SV (DE, EN, PL)
001SV (DE, EN, RU)
More Information
Type (Series) 06001
Solution LNG
Solution Area Transport, Storage, Refueling, Processes
SKU CR_06001_2
Materials

Materials

DIN EN

ASTM

1

Body

CW610N

B 283 UNS C36500

2

Disc

PTFE / Carbon filled (25%)

3

Guide plate

CW614N

B 283 UNS C38500

4

Copper ring

Copper

Copper

5

Stem

CW614N

B 283 UNS C38500

6

Bonnet

CW614N

B 283 UNS C38500

7

Spring

1.4571

A 313 Grade 316Ti

8

Cap

CW614N

B 283 UNS C38500

9

Ring

FKM/V4A

10

Nut

CW614N

B 283 UNS C38500

11

Adjusting screw

CW614N

B 283 UNS C38500

12

Closing cap

CW614N

B 283 UNS C38500

13

Elbow

CW614N

B 283 UNS C38500

14

Silencer

CC483K

B 30 UNS C90800

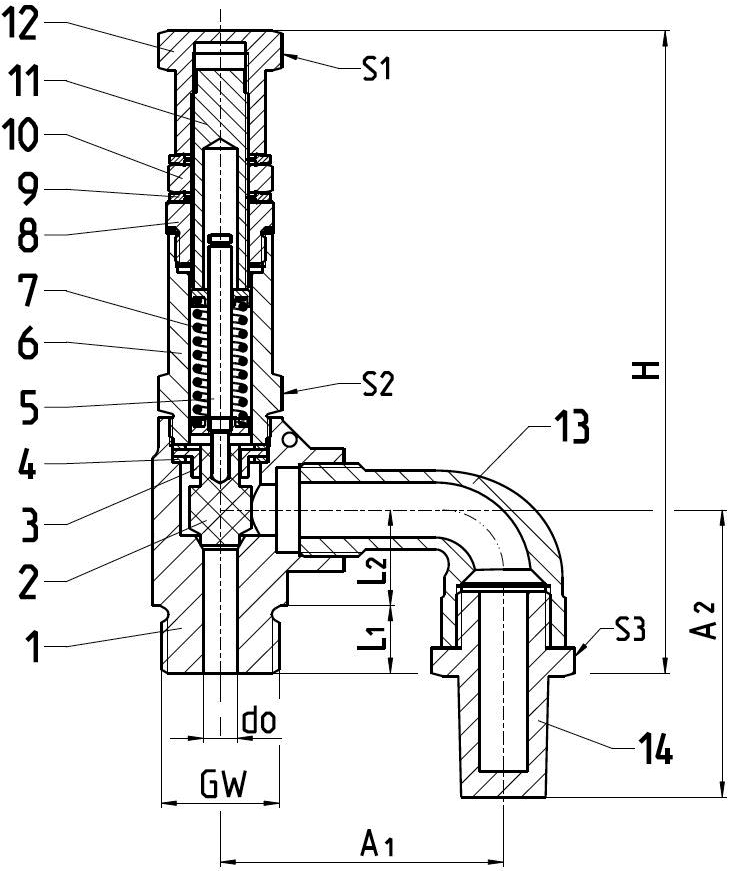

Versions

Type 06001

Technical data

Nominal size

GW

1/2

Orifice

d0

6.0

Dimension code

.X.

0400

Height

H

103

Length

L1

12

Length

L2

17

Length

A1

51

Wrench size across flats

S1

19

Wrench size across flats

S2

19

Wrench size across flats

S3

22

Weight

ca. kg

0.39
Product Variants

Product Variants

Filter our product by specific attributes
Name Connection inlet Connection outlet Connection dimension inlet Connection dimension outlet Link to product
/
?
