Type 06001

Datasheet ID: CR_06001

Field of application

chevron-down

Applications:

Provided as safety device for protection against thermal expansion in pipeworks and parts of facilities.

Approved for air gases, vapours and cryogenic liquefied gases incl. LNG.

Working temperature: -196°C / -321°F (77K) up to +65°C / +149°F (338K), suitable for horizontal installation

Description

chevron-down

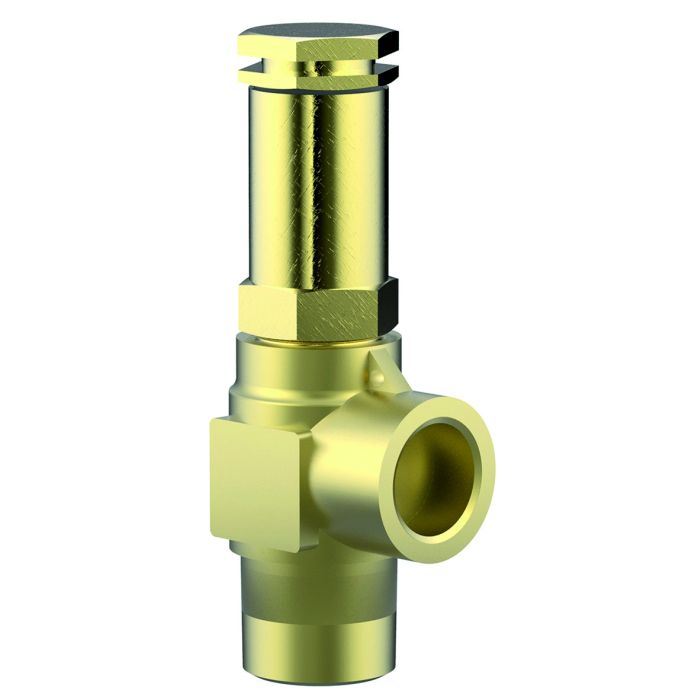

Cryogenic Safety Valves, angle type, brass, PN63, type tested TÜV-SV.1048. S/G/L

Standard Safety Valve,

complete with carbon filled PTFE valve seal, closed bonnet

Outlet: female thread Rc 3/8 acc. to ISO 7/1

"cleaned and degreased for oxygen service"

Part No. 06001.X.0000

Inlet: male thread type R (BSPT) acc. to ISO 7/1

Part No. 06001.X.2000

Inlet: male thread type G (BSPP) acc. to ISO 228/1

Part No. 06001.X.5000

Inlet: male thread NPT acc. to ANSI B 1.20.1

Available options - on request only:

· with installed elbow at the outlet

Certificates

chevron-down
Transportable Pressure Equipment Directive (2010/35/EU) chevron-down
0045/201/1321/Z/00065/18/oD/002(02)
Pressure Equipment Directive (2014/68/EU) chevron-down
0045/202/1201/Z/00616/20/D/001(01)
TÜV Verband (Approval mark number) chevron-down
24-1048
24-1048
Transportable Pressure Equipment Regulation 2009 (TPER 2009) chevron-down
0038/UK/TPER/MUM/PRJ1110512846/4
0038/UK/TPER/MUM/PRJ11100427971/2 Iss. 04
License of Special Equipment (China) (TS) chevron-down
TSF700D36-2029
Gas Cylinder Rules 2016 (India) (GCR 2016) chevron-down
G.3(40)287/I
Ukraine (Ukraine) chevron-down
UA.TR.107.135.03-26
UA.TR.107.127.07-26
UA.D.135.01-26

Data sheets

chevron-down
CR_06001_2_en.pdf
CR_06001_en.pdf

Declarations of Conformity

chevron-down
Transportable Pressure Equipment Directive (2010/35/EU) chevron-down
TTSV (DE, EN, CN)
TTSV (DE, EN, CZ)
TTSV (DE, EN, ES)
TTSV (DE, EN, FR)
TTSV (DE, EN, IT)
TTSV (DE, EN, NL)
TTSV (DE, EN, PL)
TTSV (DE, EN, RU)
Transportable Pressure Equipment Regulation 2009 (TPER 2009) chevron-down
TTSV (DE, EN)
Pressure Equipment Safety Regulation 2016 (PESR 2016) chevron-down
001 SV (EN)
Pressure Equipment Directive (2014/68/EU) chevron-down
001SV (DE, EN, CN)
001SV (DE, EN, CZ)
001SV (DE, EN, ES)
001SV (DE, EN, FR)
001SV (DE, EN, IT)
001SV (DE, EN, NL)
001SV (DE, EN, PL)
001SV (DE, EN, RU)
More Information
Type (Series) 06001
Solution LNG
Solution Area Transport, Storage, Refueling, Processes
SKU CR_06001

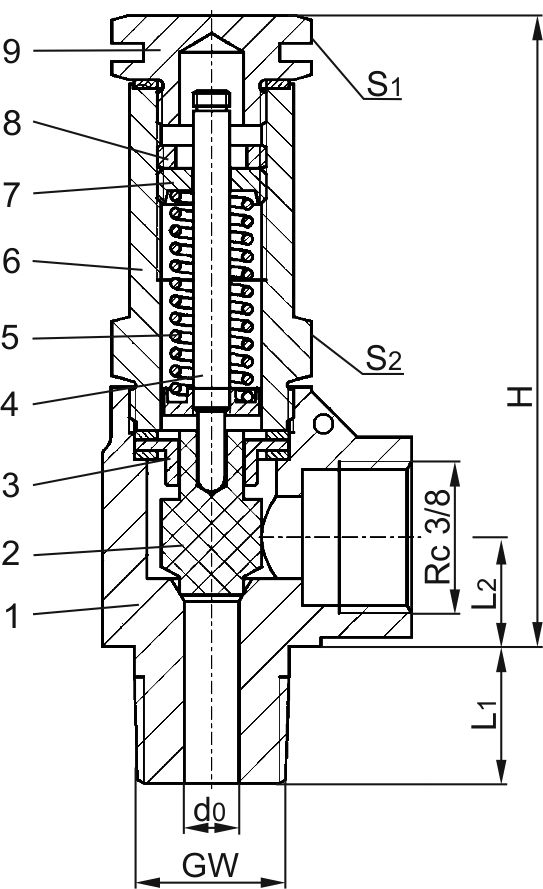

Materials

Materials

DIN EN

ASME/ASTM

1

Body

CW617N

EN12165 CW617N Code Case 1750

2

Disc

PTFE / Carbon filled (25%)

3

Guide plate

CW614N

EN12164 CW614N Code Case 1750

4

Stem

CW614N

EN12164 CW614N Code Case 1750

5

Spring

1.4571

A 313 Grade 316Ti

6

Bonnet

CW614N

EN12164 CW614N Code Case 1750

7

Spring clamp

CW614N

EN12164 CW614N Code Case 1750

8

Thread ring

CW614N

EN12164 CW614N Code Case 1750

9

Cap

CW614N

EN12164 CW614N Code Case 1750
Versions

Type 06001

Technical data

Nominal size

GW

1/4

3/8

1/2

Orifice

d0

6.0

6.0

6.0

Dimension code

.X.

0200

0300

0400

Set pressure range

bar

5.0-55.0

5.0-55.0

5.0-55.0

Height

H

70

70

70

Length

L1

13

15

17

Length

L2

13

13

13

Wrench size across flats

S1

19

19

19

Wrench size across flats

S2

19

19

19

Weight

ca. kg

0.18

0.195

0.21

Coefficient of discharge

αw

0.09

0.09

0.09
