Type 08717 - Strainer

Datasheet ID: CR_08717_2

Field of application

chevron-down

Applications:

Approved for hydrogen, air gases, vapours and cryogenic liquefied gases incl. LNG.

Working temperature: -255°C / -427°F (18K) up to +120°C / +248°F (393K)

Description

chevron-down

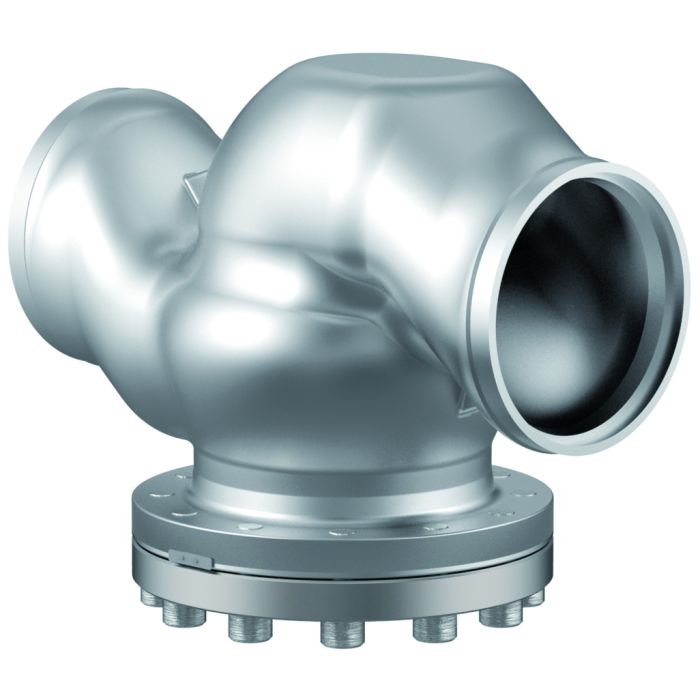

Cryogenic-Strainer, PN25

Stainless steel body and cap

with strainer screen mesh size 0.25 mm

Part-No. 08717.X.0004

Socket weld connection for stainless steel pipes acc. to ISO 1127 oder ASTM A312

Available options - on rewquest only

Certificates

chevron-down
type-examination for LNG (DIN EN 12567) chevron-down
LNG-Certificate_01XXX_02XXX_03XXX_05XXX_06XXX_08XXX_09XXX_11XX
LNG-Certificate_DN200-05XXX_08XXX
type-examination fire-safe (DIN EN ISO 10497) chevron-down
FS-Certificate_05XXX_08XXX
DNV (Class Rules) chevron-down
TAP00000KE Rev. 3
BV (Class Rules) chevron-down
33679/C1 BC
SMS.W.I./11744/C.0
RINA (Class Rules) chevron-down
MAC322723XG
Pressure Equipment Directive (2014/68/EU) chevron-down
0045/202/1201/Z/00366/23/D/001(00)
0045/202/1201/Z/00366/23/D/001(00)
0045/202/1201/Z/00366/23/D/001(00)
0045/202/1201/Z/00366/23/D/001(00)
0045/202/1201/Z/00366/23/D/001(00)
0045/202/1334/Z/00400/24/D/001(00)
0045/202/1201/Z/00469/23/D/001(00)
0045/202/1201/Z/00469/23/D/001(00)
Lloyd's Register (Class Rules) chevron-down
LR25294732TA
ABS (Class Rules) chevron-down
25-0381115-PDA
25-0381115-PDA
092776-7471959-006
CCS (Class Rules) chevron-down
HB25PTB00055
Ukraine (Ukraine) chevron-down
UA.276.127.05-26
UA.D.127.06-26

Data sheets

chevron-down
CR_08717_2_en.pdf

Declarations of Conformity

chevron-down
Pressure Equipment Directive (2014/68/EU) chevron-down
001TTV (DE, EN, CN)
001TTV (DE, EN, CZ)
001TTV (DE, EN, ES)
001TTV (DE, EN, FR)
001TTV (DE, EN, IT)
001TTV (DE, EN, NL)
001TTV (DE, EN, PL)
001TTV (DE, EN, RU)
002TTV (DE, EN, CN)
002TTV (DE, EN, CZ)
002TTV (DE, EN, ES)
002TTV (DE, EN, FR)
002TTV (DE, EN, IT)
002TTV (DE, EN, NL)
002TTV (DE, EN, PL)
002TTV (DE, EN, RU)
Pressure Equipment Safety Regulation 2016 (PESR 2016) chevron-down
002TTV (EN)
003TTV (EN)
More Information
Type (Series) 08717
Solution H2, LNG, Air Gases
Solution Area Transport, Storage, Refueling, Processes
SKU CR_08717_2

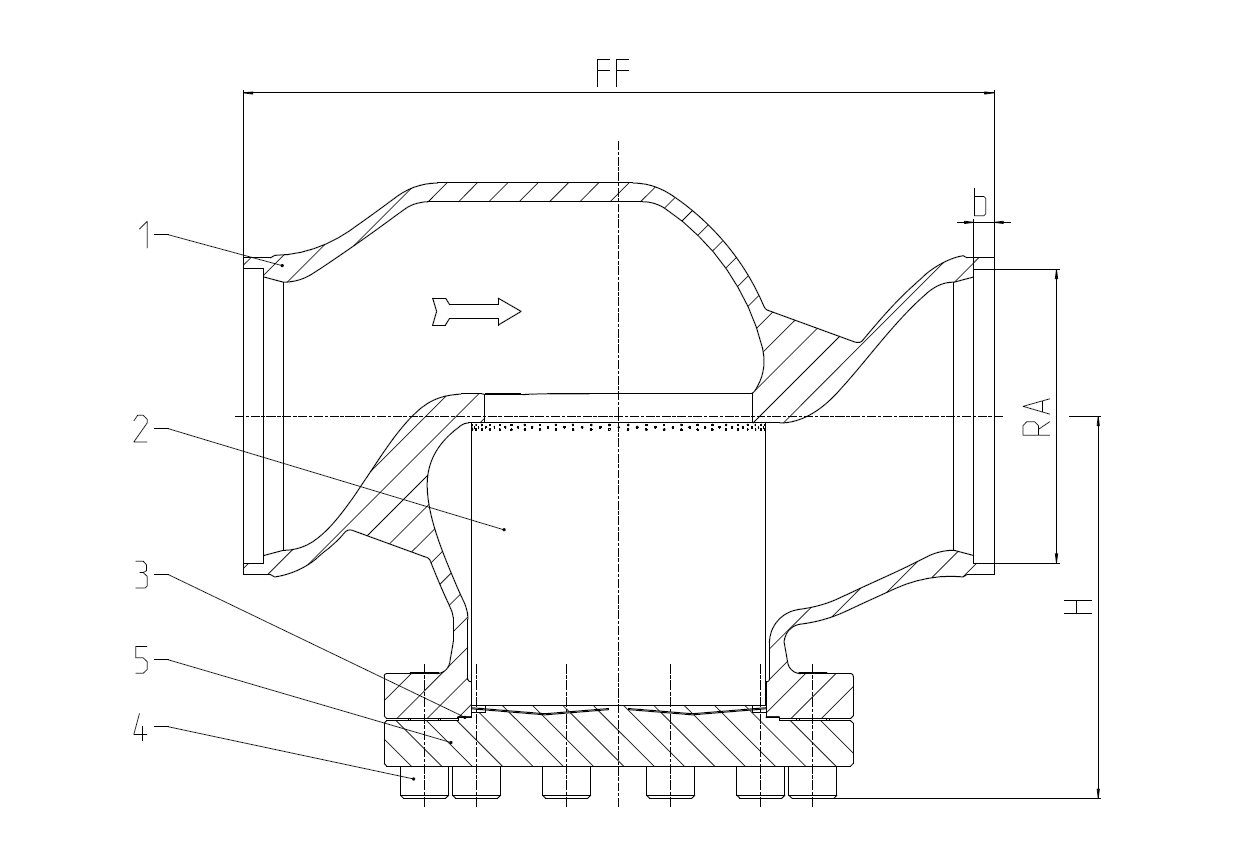

Materials

Materials

DIN EN

ASTM

1

Body

1.4409

A 351 CF3M

2

Strainer screen

1.4409

A 351 CF3M

3

Bonnet gasket

Graphite

4

Bolts

A4-80

A 194 B8

5

Cap

1.4404

A 276 Grade 316L
Versions

Type 08717 - Standard design

Technical data

Nominal size

DN

200

Dimension code

.X.

0219

Face-to-face dimension

FF

560

Height

H

285

Outside pipe-Ø ISO 1127

RA

219,1

Wall thickness pipe ISO 1127

a

6,3

Outside pipe-Ø ASTM A312

RA

219,1

Wall thickness pipe ASTM A312

a

dimensions acc. to S10 or S40

Socket depth

b

15

Weight

ca. kg

100

Kvs-Value

m³/h

468

Cv-Value

gal/min

541,1
?
