Type 11C01 - Globe Valve FullX

Datasheet ID: CR_11C01_2

Description

chevron-down

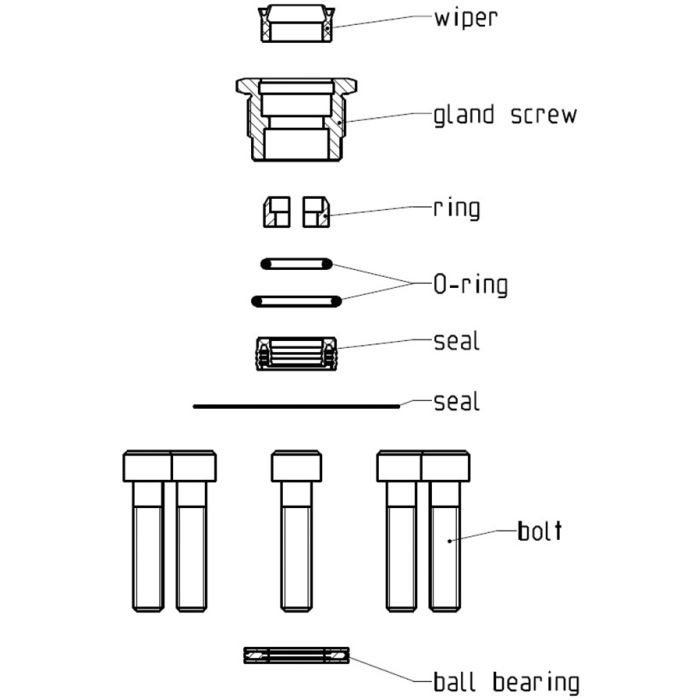

Sealing spare part kit – without bellow & bellow top position

"¦cleaned and degreased for oxygen service¦"

consisting of:

· 1x wiper PEEK

· 1x gland bold 1.4404

· 1x stem ring CW452K

· 2x O-ring FPM

· 1x gasket PTFE / 25% Carbon filled

· 6x bonnet gasket PTFE

· 6x or 8x bolt A4

· 1x ball bearing 1.4125

Part No. 11C01.00XX.E00101

Certificates

chevron-down
BV (Class Rules) chevron-down
33353/C0 BV
SMS.W.I./11744/C.0
ClassNK (Class Rules) chevron-down
TA23383M
DNV (Class Rules) chevron-down
TAP00000MM Rev. 3
RINA (Class Rules) chevron-down
MAC322723XG
Pressure Equipment Directive (2014/68/EU) chevron-down
0045/202/1201/Z/00366/23/D/001(00)
0045/202/1201/Z/00366/23/D/001(00)
0045/202/1201/Z/00366/23/D/001(00)
0045/202/1201/Z/00366/23/D/001(00)
0045/202/1201/Z/00366/23/D/001(00)
0045/202/1201/Z/00366/23/D/001(00)
0045/202/1201/Z/00366/23/D/001(00)
0045/202/1201/Z/00366/23/D/001(00)
0045/202/1201/Z/00366/23/D/001(00)
0045/202/1201/Z/00366/23/D/001(00)
Transportable Pressure Equipment Directive (2010/35/EU) chevron-down
0343/TPED/MUM/PRJ11100427971/4 Iss. 02
0343/TPED/MUM/PRJ11100427971/3
0343/TPED/MUM/PRJ11100427971/4 Iss. 02
0343/TPED/MUM/PRJ11100427971/3
0343/TPED/MUM/PRJ11100427971/3
0343/TPED/MUM/PRJ11100427971/4 Iss. 02
0343/TPED/MUM/PRJ11100427971/3
0343/TPED/MUM/PRJ11100427971/4 Iss. 02
Transportable Pressure Equipment Regulation 2009 (TPER 2009) chevron-down
0038/UK/TPER/MUM/PRJ11100427971/2 Iss. 04
0038/UK/TPER/PRJ11100427971/1 Iss. 3
0038/UK/TPER/MUM/PRJ11100427971/2 Iss. 04
0038/UK/TPER/PRJ11100427971/1 Iss. 3
0038/UK/TPER/PRJ11100427971/1 Iss. 3
0038/UK/TPER/MUM/PRJ11100427971/2 Iss. 04
0038/UK/TPER/PRJ11100427971/1 Iss. 3
0038/UK/TPER/MUM/PRJ11100427971/2 Iss. 04
CCS (Class Rules) chevron-down
HB24PTB00028
HB25PTB00055
Lloyd's Register (Class Rules) chevron-down
LR2508712TA-02
LR2695076QAES
Ukraine (Ukraine) chevron-down
UA.276.127.03-26
UA.D.127.04-26
UA.276.127.03-26
UA.D.127.04-26
UA.276.127.03-26
UA.D.127.04-26
UA.276.127.03-26
UA.D.127.04-26

Data sheets

chevron-down
CR_11C01_2_en.pdf

Declarations of Conformity

chevron-down
Transportable Pressure Equipment Regulation 2009 (TPER 2009) chevron-down
TTV (DE, EN)
TTV (DE, EN)
Transportable Pressure Equipment Directive (2010/35/EU) chevron-down
TTV2 (DE, EN, CN)
TTV2 (DE, EN, CN)
TTV2 (DE, EN, CZ)
TTV2 (DE, EN, CZ)
TTV2 (DE, EN, ES)
TTV2 (DE, EN, ES)
TTV2 (DE, EN, FR)
TTV2 (DE, EN, FR)
TTV2 (DE, EN, IT)
TTV2 (DE, EN, IT)
TTV2 (DE, EN, NL)
TTV2 (DE, EN, NL)
TTV2 (DE, EN, PL)
TTV2 (DE, EN, PL)
TTV2 (DE, EN, RU)
TTV2 (DE, EN, RU)
Pressure Equipment Directive (2014/68/EU) chevron-down
002TTV (DE, EN, CN)
002TTV (DE, EN, CN)
002TTV (DE, EN, CN)
002TTV (DE, EN, CN)
002TTV (DE, EN, CN)
002TTV (DE, EN, CZ)
002TTV (DE, EN, CZ)
002TTV (DE, EN, CZ)
002TTV (DE, EN, CZ)
002TTV (DE, EN, CZ)
002TTV (DE, EN, ES)
002TTV (DE, EN, ES)
002TTV (DE, EN, ES)
002TTV (DE, EN, ES)
002TTV (DE, EN, ES)
002TTV (DE, EN, FR)
002TTV (DE, EN, FR)
002TTV (DE, EN, FR)
002TTV (DE, EN, FR)
002TTV (DE, EN, FR)
002TTV (DE, EN, IT)
002TTV (DE, EN, IT)
002TTV (DE, EN, IT)
002TTV (DE, EN, IT)
002TTV (DE, EN, IT)
002TTV (DE, EN, NL)
002TTV (DE, EN, NL)
002TTV (DE, EN, NL)
002TTV (DE, EN, NL)
002TTV (DE, EN, NL)
002TTV (DE, EN, PL)
002TTV (DE, EN, PL)
002TTV (DE, EN, PL)
002TTV (DE, EN, PL)
002TTV (DE, EN, PL)
002TTV (DE, EN, RU)
002TTV (DE, EN, RU)
002TTV (DE, EN, RU)
002TTV (DE, EN, RU)
002TTV (DE, EN, RU)
More Information
Type (Series) 11C01
Solution H2, LNG, Air Gases
Solution Area Manufacturing, Transport, Storage, Refueling, Processes
SKU CR_11C01_2
Versions

Type 11C01

Technical data

Nominal size

DN

10

15

20

25

32

40

50

Dimension code

.X.

0000

0000

0000

0000

3240

3240

0050

Weight

ca. kg

0.14

0.14

0.14

0.14

0.24

0.24

0.28
?
