Type 01332 - Globe Valve Angle Type

Datasheet ID: CR_01332
Field of application chevron-down

Applications:

Approved for air gases, vapours and cryogenic liquefied gases incl. LNG.

Working temperature: -196°C / -321°F (77K) up to +120°C / +248°F (393K)

Recommended working temperature: -60°C / -76°F (213K) up to +120°C / +248°F (393K)

Description chevron-down

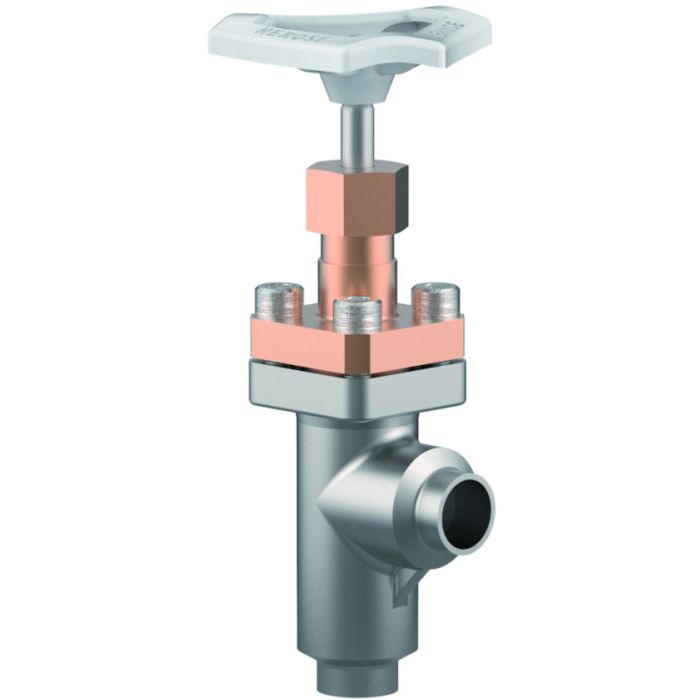

Cryogenic-Globe Valves Angle Type, PN50

Stainless steel body and bronze topwork,

"¦live loaded¦" Stainless steel body and bronze topwork,

"¦cleaned and degreased for oxygen service¦"

Part No. 01332.X.000*

* Butt weld connection for stainless steel pipes acc. to ISO 1127 or ASTM A312

Part No. 01332.X.0004

Socket weld connection for stainless steel pipes acc. to ISO 1127 or ASTM A312

Available options - on request only:

· Valve with control disc (tapered design)

· Valve with check disc

· Further pipe wall thicknesses

Certificates chevron-down
Transportable Pressure Equipment Directive (2010/35/EU) chevron-down
type-examination for LNG (DIN EN 12567) chevron-down
License of Special Equipment (China) (TS) chevron-down
Pressure Equipment Safety Regulation 2016 (PESR 2016) chevron-down
Pressure Equipment Directive (2014/68/EU) chevron-down
Ukraine (Ukraine) chevron-down
Data sheets chevron-down
Operating Instructions chevron-down
Declarations of Conformity chevron-down
Transportable Pressure Equipment Directive (2010/35/EU) chevron-down
Pressure Equipment Safety Regulation 2016 (PESR 2016) chevron-down
Pressure Equipment Directive (2014/68/EU) chevron-down
More Information
Type (Series) 01332
Solution LNG, Air Gases
Solution Area Transport, Storage, Refueling, Processes
SKU CR_01332
Materials

Materials

DIN EN

ASTM

1

Body

1.4308

A 351 CF8

2

Valve seal

PTFE / Carbon filled (25%)

3

Disc

CW614N

B 283 UNS C38500

4

Bonnet gasket

PTFE

5

Headpiece

CC493K

B 505 UNS C93200

6

Bolts

1.4301/A2

A 194 B8

7

Stem

1.4301

A 276 Grade 304

9

Gland packing

Graphite / PTFE

10

Gland nut

CW614N

B 283 UNS C38500

11

Handwheel

Aluminium alloy

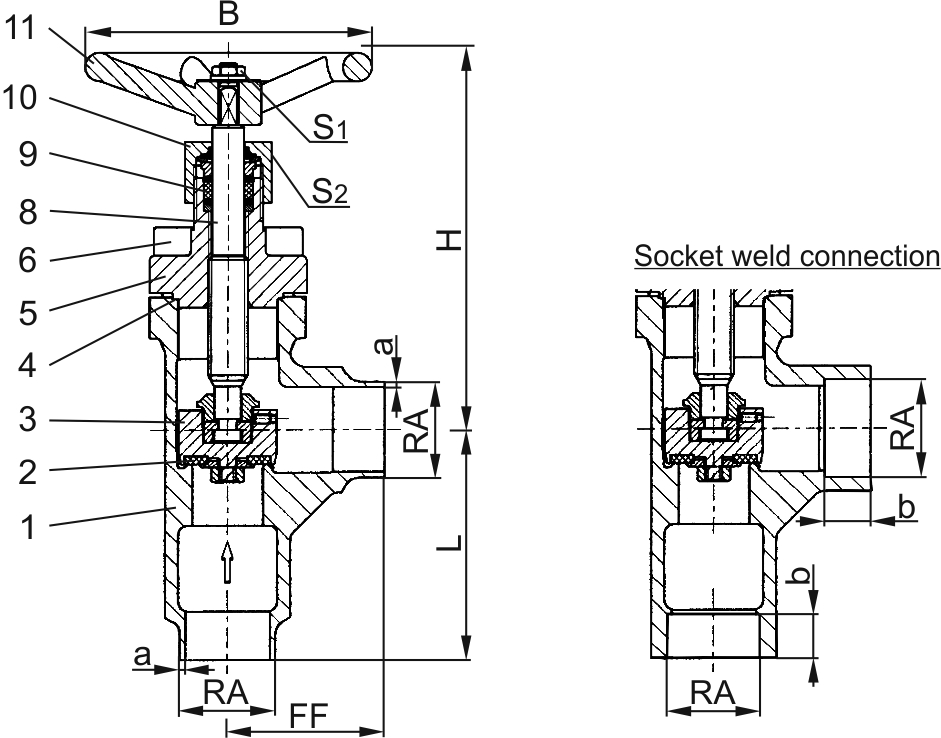

Versions

Type 01332 - Standard design

Technical data

Nominal size

DN

15

20

25

32

40

50

Dimension code

.X.

1521

2026

2533

3242

4048

5060

Face-to-face dimension

FF

40

50

55

60

58

85

Height

H

140

140

140

170

175

200

Outside pipe-Ø ISO 1127

RA

21.3

26.9

33.7

42.0

48.3

60.3

Wall thickness pipe ISO 1127

a

2.0

2.0

2.0

2.0

2.0

2.0

Outside pipe-Ø ASTM A312

RA

21.34

26.67

33.4

-

48.26

60.33

Wall thickness pipe ASTM A312

a

dimensions acc. to S10 or S40

Socket depth

b

10

13

13

13

13

16

Handwheel-Ø

B

100

100

100

125

125

125

Length

L

50

65

80

80

90

90

Wrench size across flats

S1

7

7

7

10

10

10

Wrench size across flats

S2

30

30

30

36

36

36

Weight

ca. kg

1.0

1.3

1.7

3.1

3.3

6.0

Kvs-Value

m³/h

6.0

10.5

17.2

32.0

35.0

57.0

Cv-Value

gal/min

7.0

12.2

20.0

37.2

40.7

66.3
