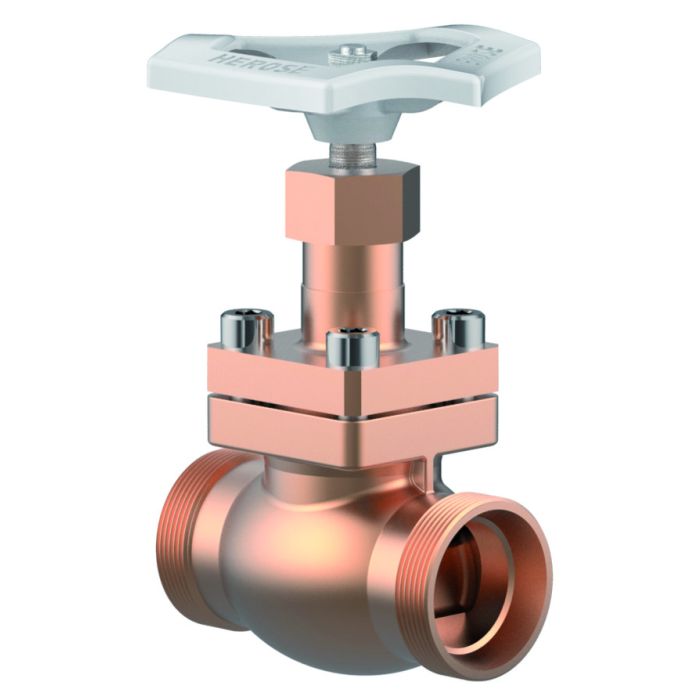

Type 02401 - Globe Valve

Datasheet ID: CR_02401_1
Field of application chevron-down

Applications:

Approved for air gases, vapours and cryogenic liquefied gases incl. LNG.

Working temperature: -196°C / -321°F (77K) up to +120°C / +248°F (393K)

Recommended working temperature: -60°C / -76°F (213K) up to +120°C / +248°F (393K)

Description chevron-down

Cryogenic-Globe and Globe/Check Valves, PN50

Bronze body and topwork,

"¦live loaded¦" gland packing

"¦cleaned and degreased for oxygen service¦"

Part No. 02401.X.0001

Part No. 02401.X.5001 Globe/Check Valve

Male thread for union connection

Available options - on request only:

· Valve with control disc (tapered design)

Certificates chevron-down
Transportable Pressure Equipment Directive (2010/35/EU) chevron-down
type-examination for LNG (DIN EN 12567) chevron-down
License of Special Equipment (China) (TS) chevron-down
Pressure Equipment Safety Regulation 2016 (PESR 2016) chevron-down
Pressure Equipment Directive (2014/68/EU) chevron-down
Ukraine (Ukraine) chevron-down
Data sheets chevron-down
Operating Instructions chevron-down
Declarations of Conformity chevron-down
Transportable Pressure Equipment Directive (2010/35/EU) chevron-down
Pressure Equipment Safety Regulation 2016 (PESR 2016) chevron-down
Pressure Equipment Directive (2014/68/EU) chevron-down
More Information
Type (Series) 02401
Solution LNG, Air Gases
Solution Area Transport, Storage, Refueling, Processes
SKU CR_02401_1
Materials

Materials

DIN EN

ASTM

1

Body

CC491K

B 62 UNS C83600

2

Valve seal

PTFE / Carbon filled (25%)

3

Disc

CW614N

B 283 UNS C38500

4

Bonnet gasket

PTFE

5

Headpiece

CC493K

B 505 UNS C93200

6

Bolts

1.4301/A2

A 194 B8

8

Stem

1.4301

A 276 Grade 304

9

Gland packing

Graphite / PTFE

10

Gland nut

CW614N

B 283 UNS C38500

11

Handwheel

Aluminium alloy

12

Spring

CW452K

B 159 UNS C51900

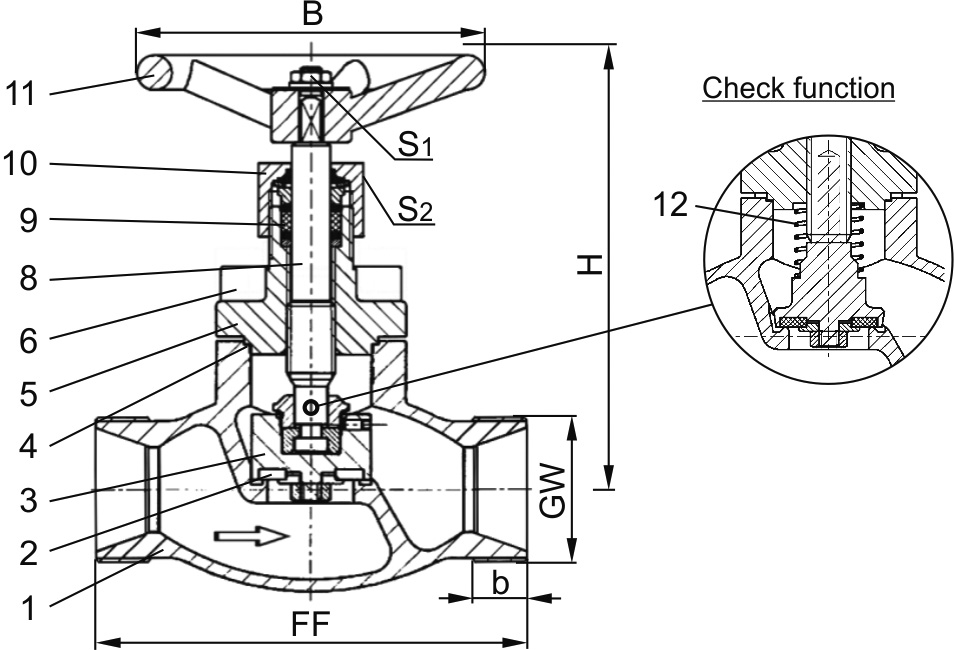

Versions

Type 02401 - Standard design

Technical data

Nominal size

DN

10

20

32

40

50

Dimension code

.X.

0100

0200

0320

0400

0500

Face-to-face dimension

FF

60

85

115

140

160

Height

H

140

140

170

175

200

Union thread

GW

M26x1.5

M40x2.0

M55x2.0

M65x2.0

M78x2.0

Thread length

b

10

11

14

17

20

Handwheel-Ø

B

100

100

125

125

125

Wrench size across flats

S1

7

7

10

10

10

Wrench size across flats

S2

30

30

36

36

36

Weight

ca. kg

1.0

1.7

2.8

4.2

6.7

Kvs-Value

m³/h

2.2

6.7

12.1

22.6

37.1

Cv-Value

gal/min

2.6

7.8

14.1

26.3

43.2
