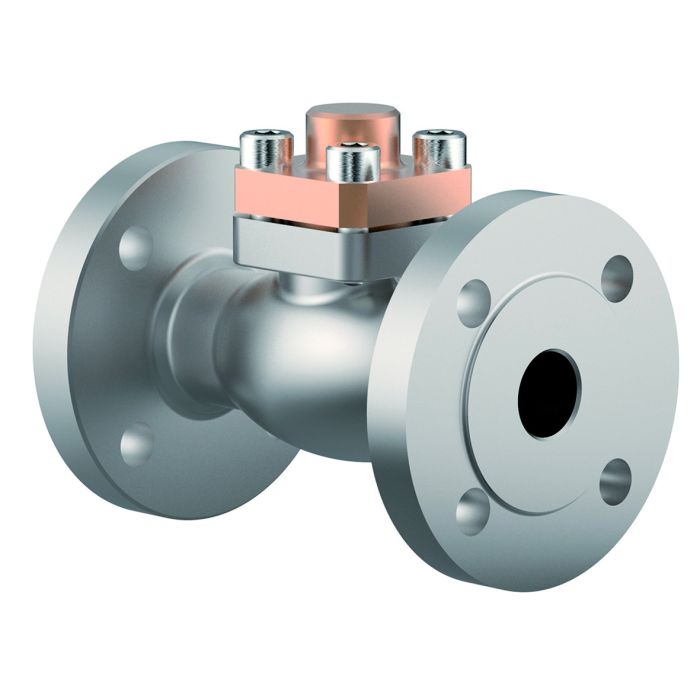

Type 05418 - Check Valve, DIN EN Flanges
The product shown in the picture may differ from the product sold.
Field of application
Applications:
Approved for air gases, vapours and cryogenic liquefied gases incl. LNG.
Working temperature: -196°C / -321°F (77K) up to +120°C / +248°F (393K)
Certificates
type-examination for LNG (DIN EN 12567)
Live Stock: Out-Of Stock pcs (ON STOCK)
| Solution | LNG, Air Gases |
|---|---|
| Solution Area | Transport, Storage, Refueling, Processes |
| SKU | CR_05418_1 |

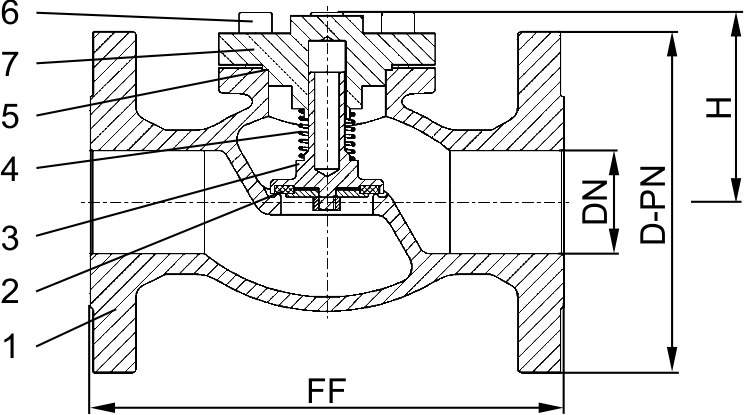

Materials |
DIN EN |
ASTM |
|
|---|---|---|---|
1 |
Body |
1.4308 |
A 351 CF8 |
2 |
Valve seal up to DN50 |
PTFE / Carbon filled (25%) |
|
2a |
Valve seal from DN65 |
PTFE |
|
3 |
Disc |
CW614N |
B 283 UNS C38500 |
4 |
Spring |
CW452K |
B 159 UNS C51900 |
5 |
Bonnet gasket |
PTFE |
|
6 |
Bolts |
1.4301/A2 |
A 194 B8 |
7 |
Cap |
CC493K |
B 505 UNS C93200 |
Type 05418 - Standard design |
Technical data |
|||||||||
|---|---|---|---|---|---|---|---|---|---|---|
Nominal size |
DN |
15 |
20 |
25 |
40 |
50 |
65 |
80 |
100 |
150 |
Dimension code - Flange EN 1092-1 PN40 |
.X. |
0150 |
0200 |
0250 |
0400 |
0500 |
0650 |
0800 |
1000 |
1500 |
Flange-Ø |
D-PN |
95 |
105 |
115 |
150 |
165 |
185 |
200 |
235 |
300 |
Face-to-face dimension |
FF |
140 |
150 |
160 |
200 |
230 |
290 |
310 |
350 |
550 |
Height |
H |
70 |
75 |
75 |
95 |
90 |
125 |
150 |
165 |
215 |
Weight |
ca. kg |
2.9 |
3.4 |
4.4 |
6.4 |
11.6 |
19.2 |
25.2 |
39.8 |
72.7 |
Kvs-Value |
m³/h |
4.3 |
6.7 |
11.5 |
22.6 |
37.1 |
71.1 |
104.0 |
170.0 |
350.0 |
Cv-Value |
gal/min |
5.0 |
7.8 |
13.4 |
26.3 |
43.2 |
82.9 |
121.3 |
198.3 |
408.4 |
