Type 06002, Type 06006

Datasheet ID: CR_06002_06006
Field of application chevron-down

Applications:

Provided as safety device for protection against thermal expansion in pipeworks and parts of facilities.

Approved for air gases, vapours and cryogenic liquefied gases incl. LNG.

Working temperature: -196°C / -321°F (77K) up to +150°C / +302°F (423K), suitable for horizontal installation

Description chevron-down

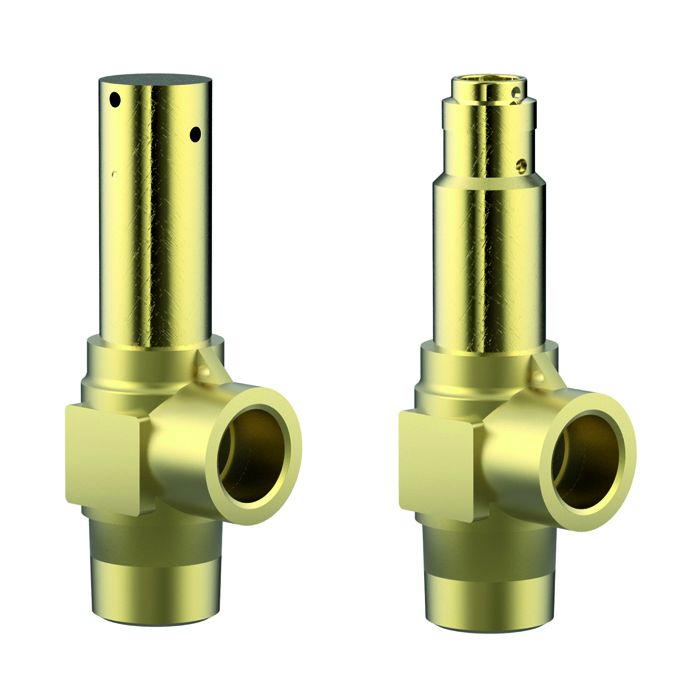

Cryogenic Safety Valves, angle type, brass, PN63, type tested TÃœV-SV.1048. S/G

Standard safety valve, with carbon filled PTFE valve seal

Outlet: female thread Rc 3/8 acc. to ISO 7/1, "¦cleaned and degreased for oxygen service¦"

Type 06002: drainage hole in the locking screw

Type 06006: drainage hole in bonnet

Part No. 06002.X.0000

Part No. 06006.X.0000 (with lifting device)

Inlet: male thread type R (BSPT) acc. to ISO 7/1

Part No. 06002.X.2000

Part No. 06006.X.2000 (with lifting device)

Inlet: male thread type G (BSPP) acc. to ISO 228/1

Part No. 06002.X.5000

Part No. 06006.X.5000 (with lifting device)

Inlet: male thread NPT acc. to ANSI B 1.20.1

Available options - on request only:

· with installed elbow at the outlet

Certificates chevron-down
Transportable Pressure Equipment Directive (2010/35/EU) chevron-down
ASME Code (ASME Code Section VIII) chevron-down
Canadian Registration Number (CRN) chevron-down
Pressure Equipment Directive (2014/68/EU) chevron-down
TÜV Verband (Approval mark number) chevron-down
Transportable Pressure Equipment Regulation 2009 (TPER 2009) chevron-down
License of Special Equipment (China) (TS) chevron-down
Gas Cylinder Rules 2016 (India) (GCR 2016) chevron-down
Ukraine (Ukraine) chevron-down
Data sheets chevron-down
Operating Instructions chevron-down
Declarations of Conformity chevron-down
Transportable Pressure Equipment Directive (2010/35/EU) chevron-down
Transportable Pressure Equipment Regulation 2009 (TPER 2009) chevron-down
Pressure Equipment Directive (2014/68/EU) chevron-down
Pressure Equipment Safety Regulation 2016 (PESR 2016) chevron-down
More Information
Type (Series) 06002,06006
Solution LNG, Air Gases
Solution Area Transport, Storage, Refueling, Processes
SKU CR_06002_06006

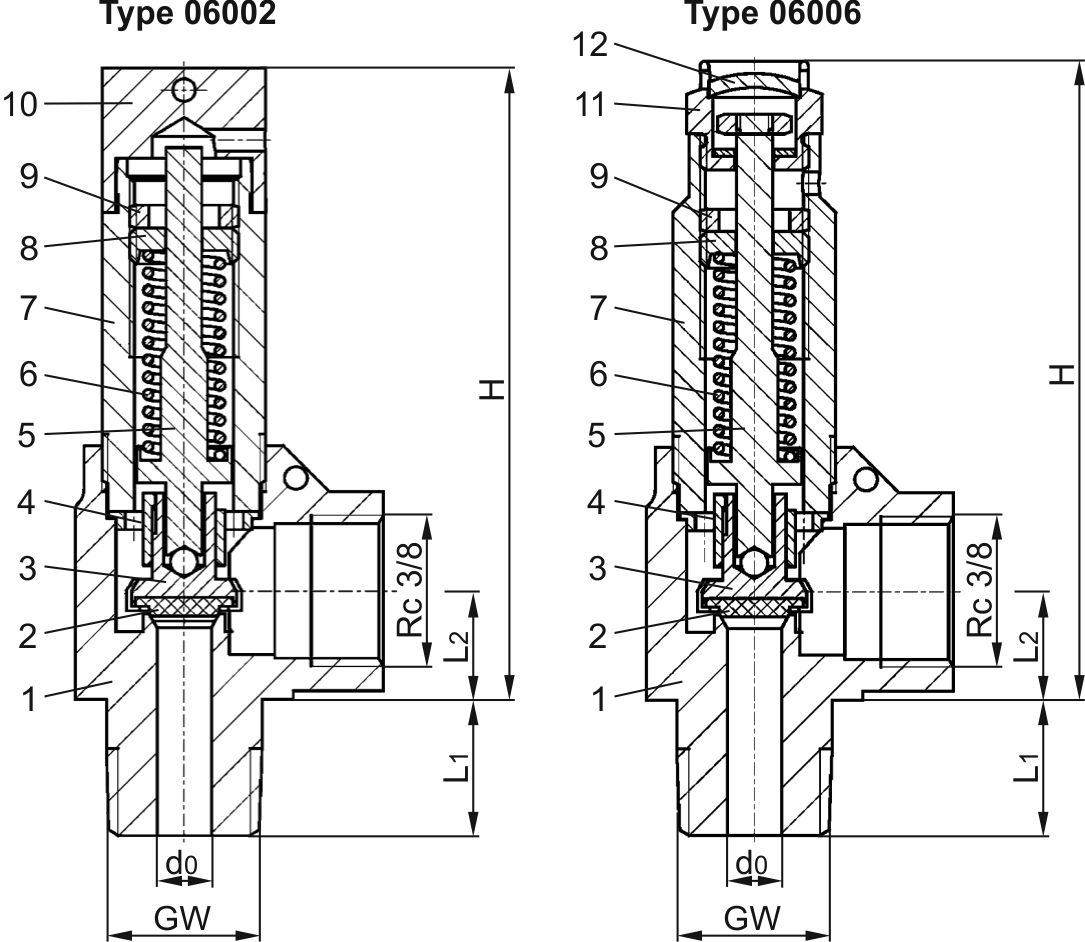

Materials

Materials

DIN EN

ASME/ASTM

1

Body

CW617N

EN12165 CW617N Code Case 1750

2

Valve seal

PTFE / Carbon filled (25%)

3

Disc

CW452K

B 103 UNS C51900

4

Guide plate

CC493K

SB 505 C93200

5

Stem

CW614N

EN12164 CW614N Code Case 1750

6

Spring

1.4571

A 313 Grade 316Ti

7

Bonnet

CW614N

EN12164 CW614N Code Case 1750

8

Spring clamp

CW614N

EN12164 CW614N Code Case 1750

9

Thread ring

CW614N

EN12164 CW614N Code Case 1750

10

Cap

CW614N

EN12164 CW614N Code Case 1750

11

Lifting device

CW614N

EN12164 CW614N Code Case 1750

12

Closing cap

CW507L

B 30 UNS C27000
Versions

Technical data

Type 06002

Type 06006

Nominal size

GW

1/4

3/8

1/2

1/4

3/8

1/2

Orifice

d0

6.0

6.0

6.0

6.0

6.0

6.0

Dimension code

.X.

0200

0300

0400

0200

0300

0400

Set pressure range

bar

1.0-55.0

1.0-55.0

1.0-55.0

1.0-55.0

1.0-55.0

1.0-55.0

Height

H

70

70

70

72

72

72

Length

L1

13

15

17

13

15

17

Length

L2

13

13

13

13

13

13

Weight

ca. kg

0.185

0.20

0.22

0.18

0.195

0.21

Coeff. of discharge from 3.0 bar

αw

0.42

0.42

0.42

0.42

0.42

0.42
